Connector Circuit Reference

Connector Reference and Terminal Readings

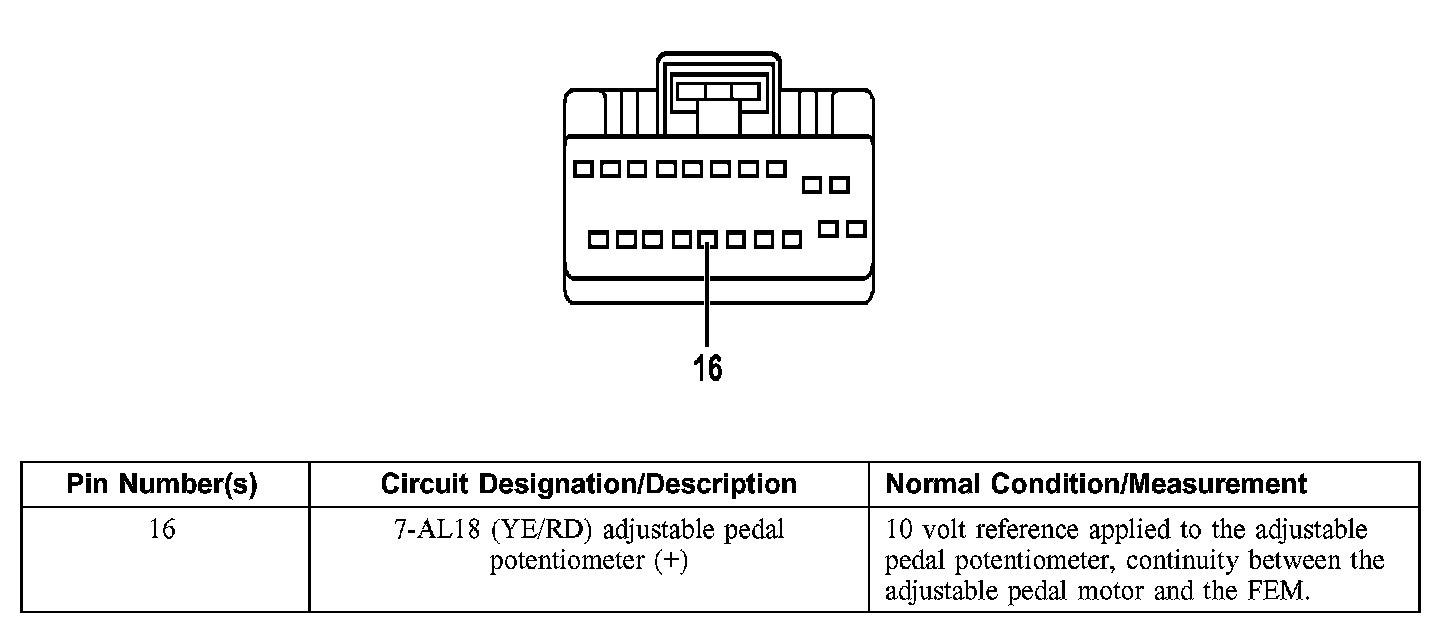

Front Electronic Module (FEM) C201c

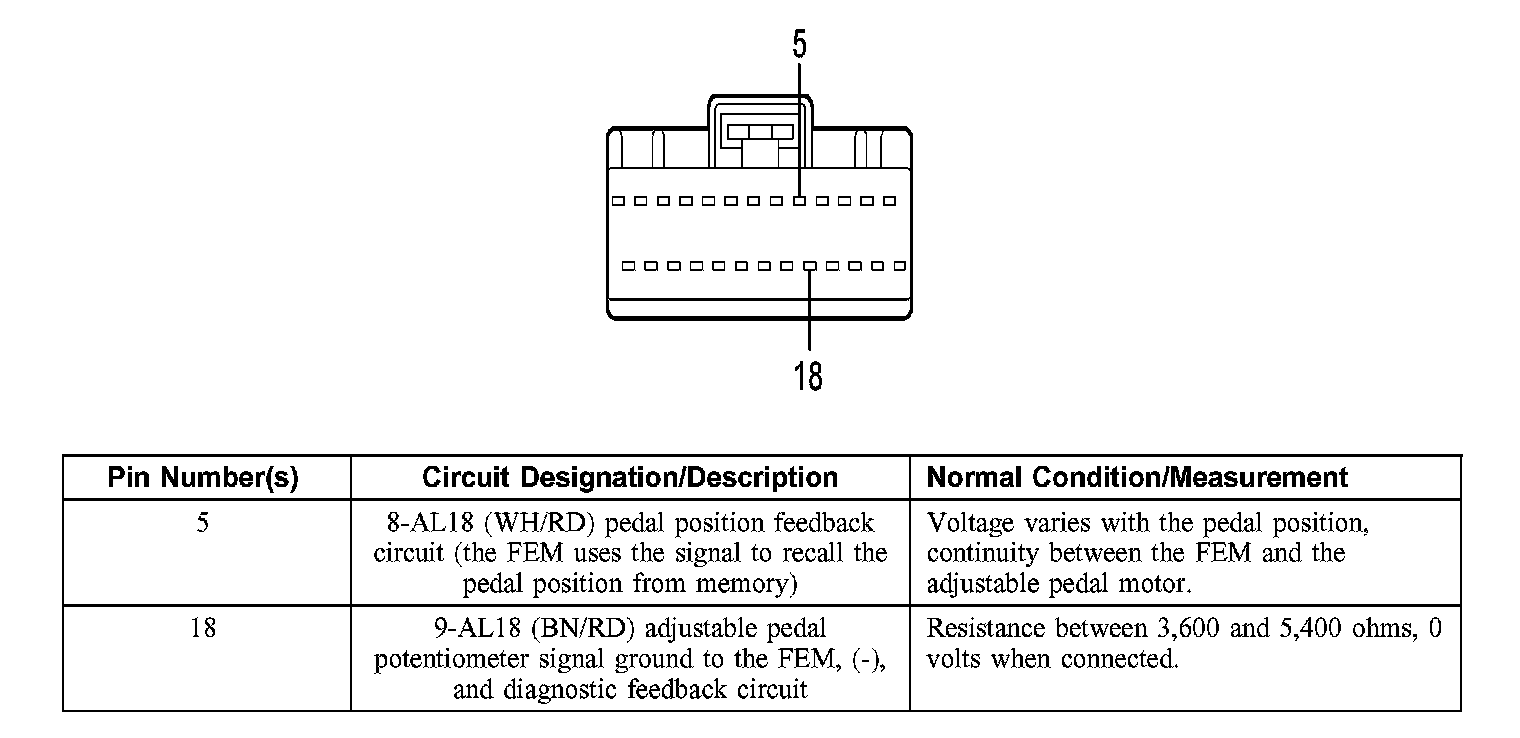

Front Electronic Module (FEM) C201e





Front Electronic Module (FEM) C201f

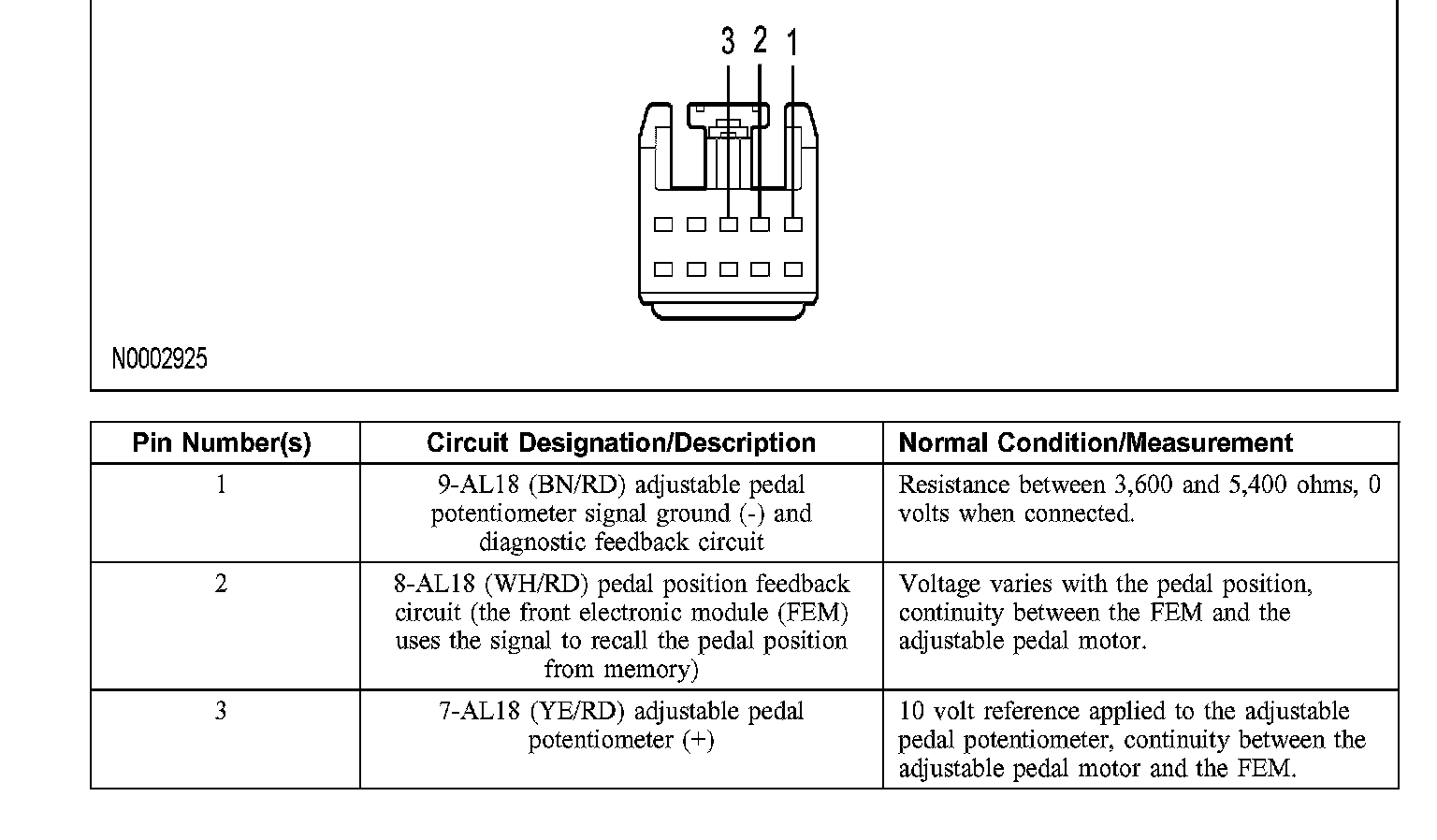

Adjustable Brake Pedal Potentiometer C26X

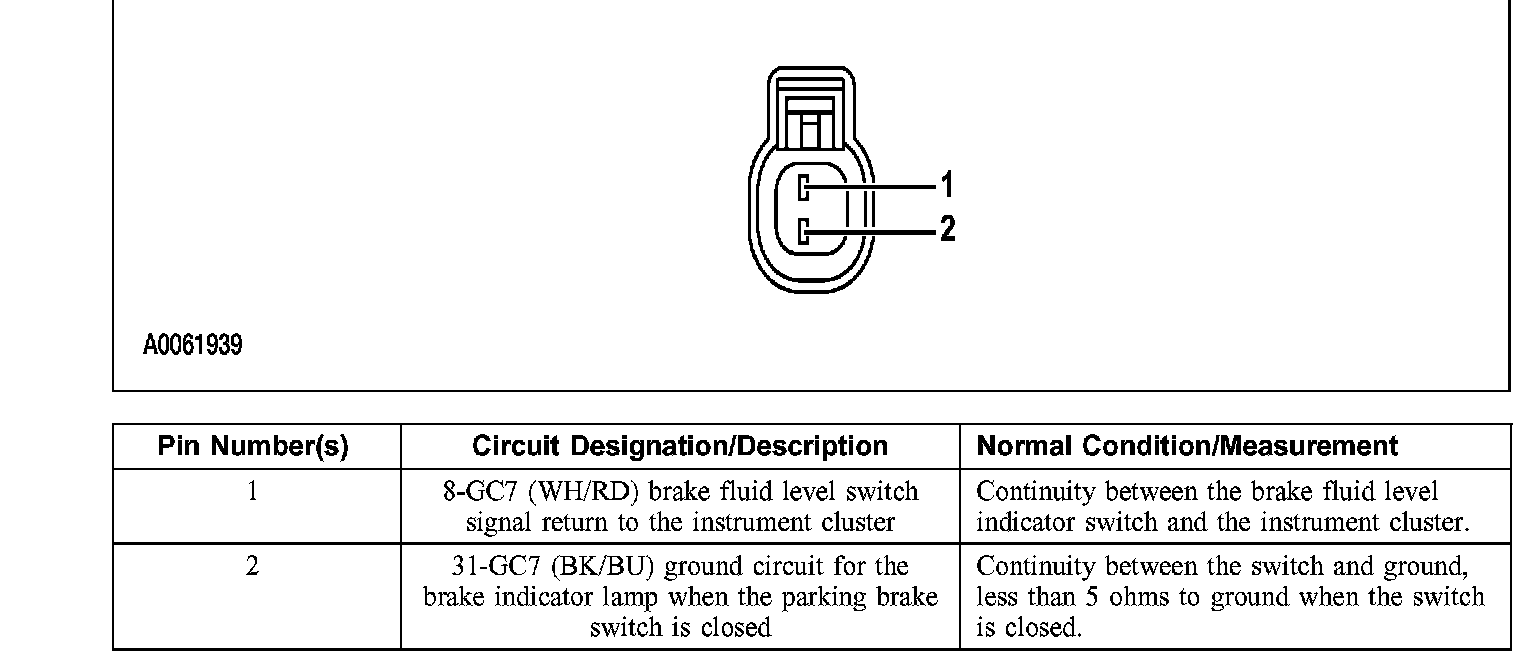

Brake Fluid Level Switch C1395

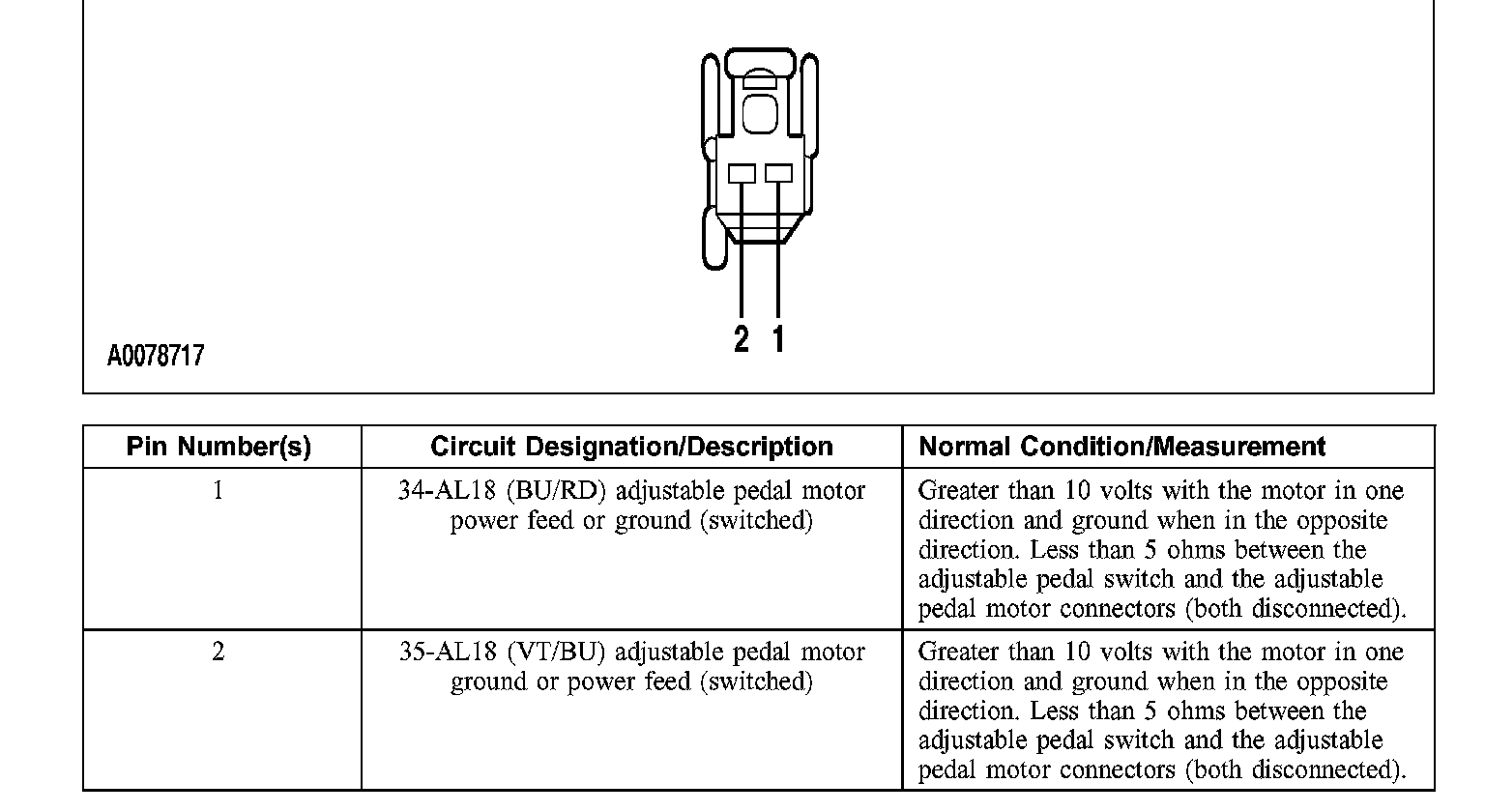

Adjustable Pedal Motor C2003

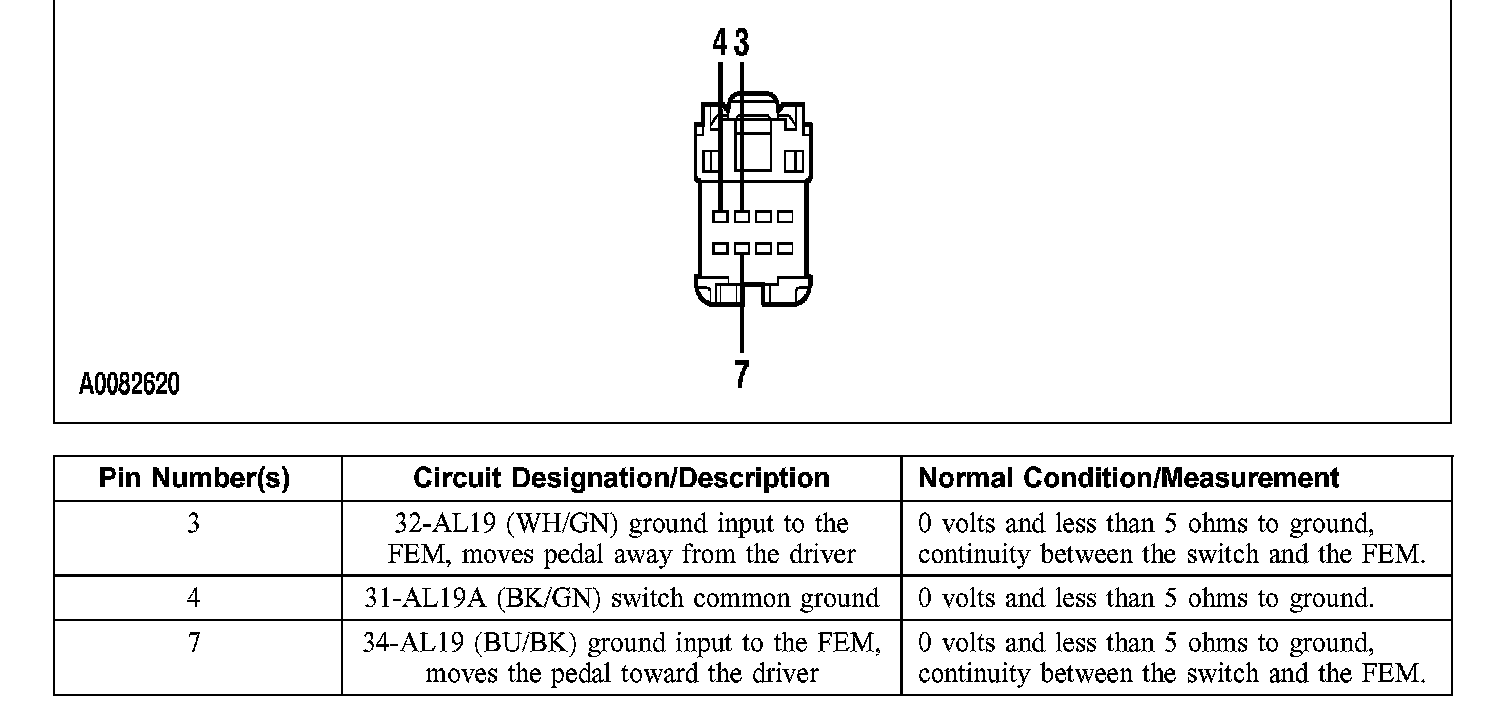

Adjustable Pedal Switch C2089
