Steps 61-69





61. Install the upper radiator sight shield.
62. Connect the fuel supply Cube.
63. Install the fresh air inlet duct.
64. Install the air cleaner assembly and outlet pipe.
65. Connect the battery ground cable.
66. Fill the engine with clean engine oil.

67. CAUTION: The coolant fill procedure must be followed exactly or damage to the engine can occur.

Fill and bleed the engine cooling system.

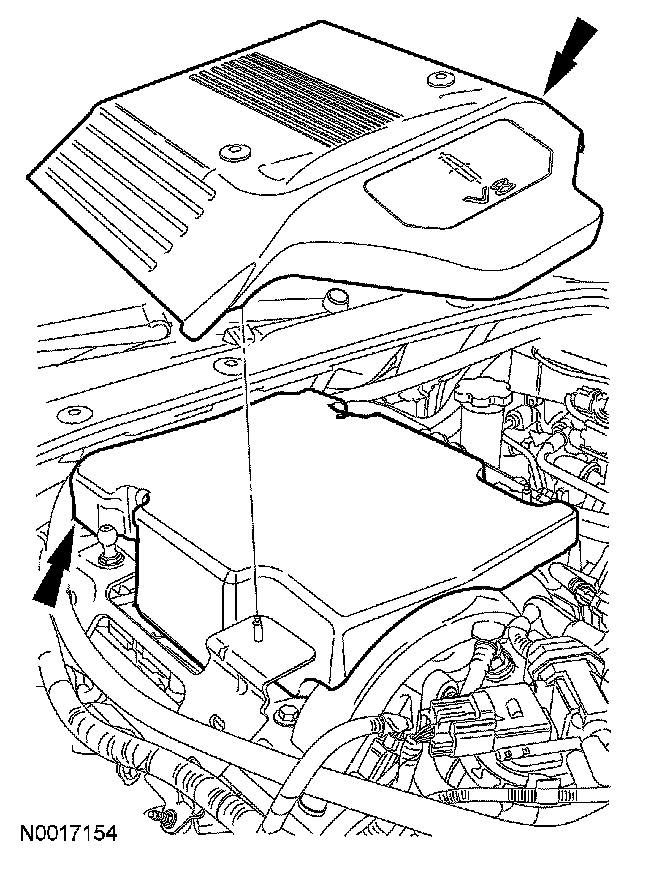

68. CAUTION: The engine appearance cover is equipped with a noise suppressor. If the noise suppressor becomes separated from the engine appearance cover it must be positioned on the intake manifold prior to installing the engine appearance cover.

Install the noise suppressor (if detached) and the engine appearance cover.
69. Evacuate and recharge the A/C system.
