Air Register: Service and Repair

DRIVER SIDE REGISTER







Removal and Installation
1. Using a flat screwdriver to depress the tabs, remove the driver side register.
2. To install, reverse the removal procedure.

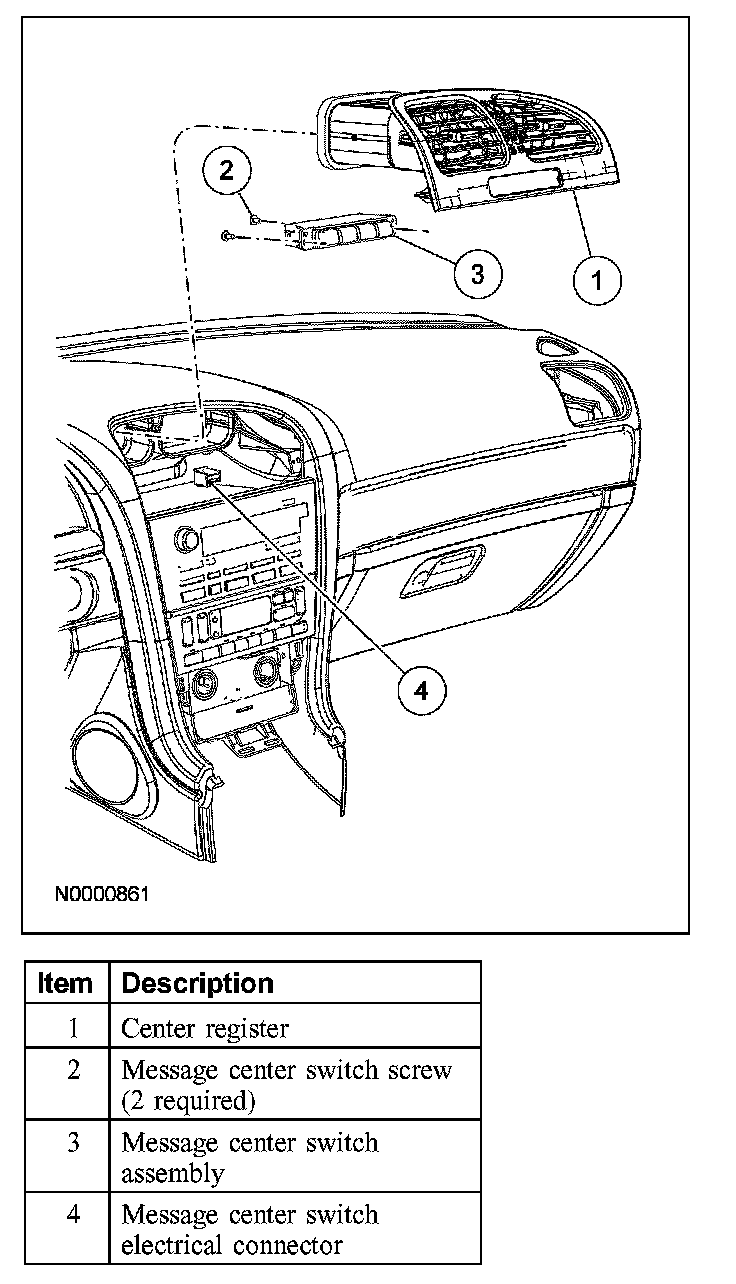

CENTER REGISTERS







Removal and Installation







1. Insert a mini-pick in the pocket and pull the register from the instrument panel.
2. Disconnect the message center switch electrical connector.
3. Remove the 2 message center switch screws.
4. Remove the message center switch.
5. To install, reverse the removal procedure.

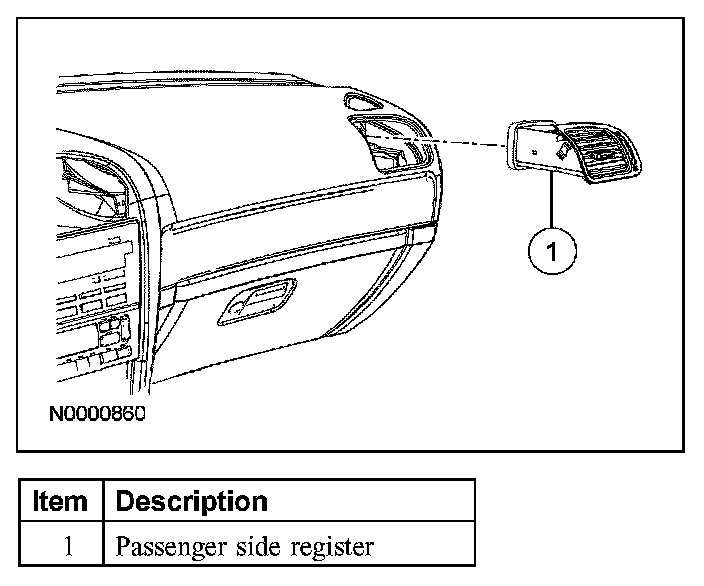

PASSENGER SIDE REGISTER







Removal and Installation
1. Using a flat screwdriver to depress the tabs, remove the passenger side register.
2. To install, reverse the removal procedure.
