Blower Motor Switch: Service and Repair

BLOWER MOTOR SPEED CONTROL







Removal and Installation

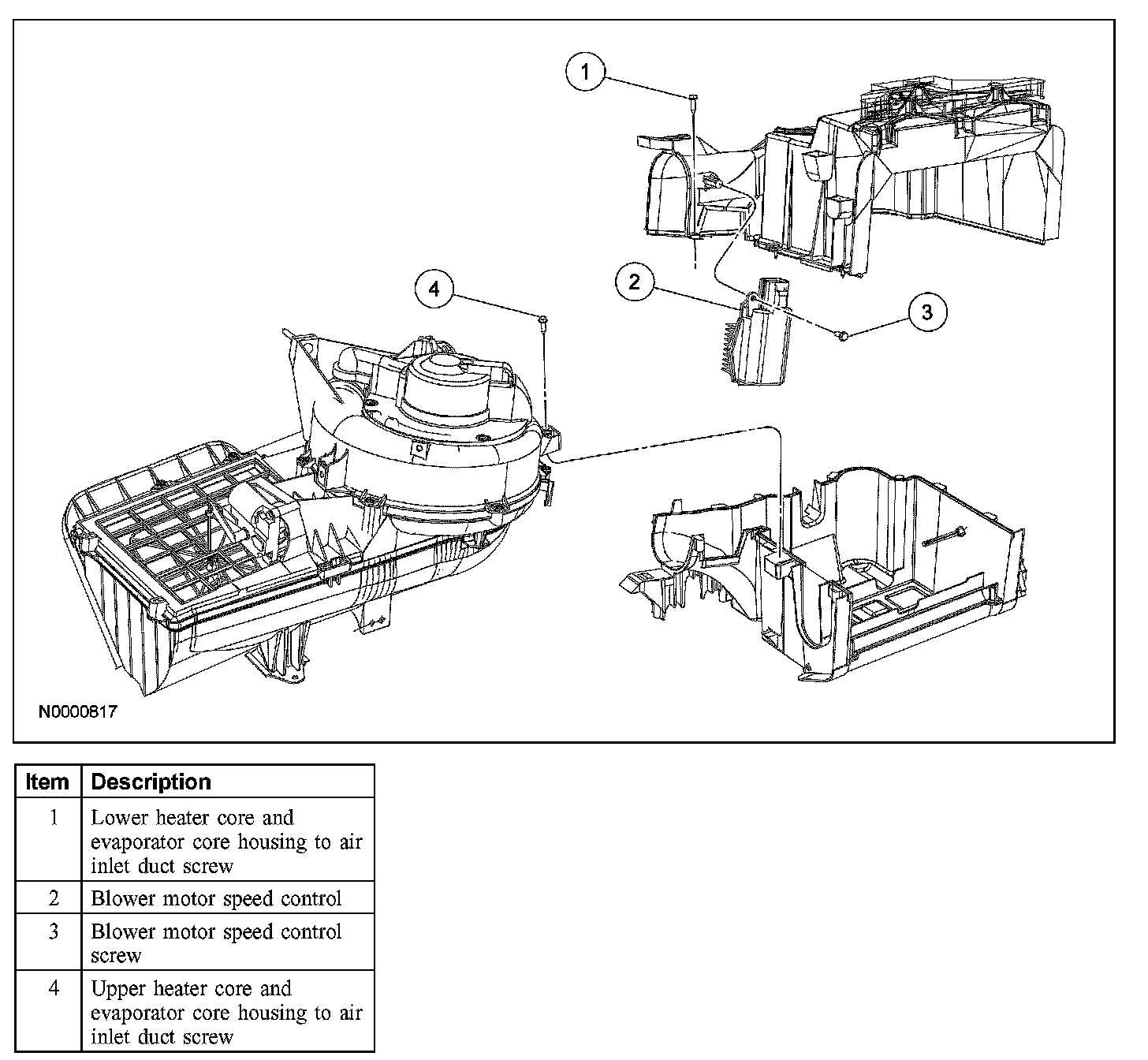

1. Remove the heater core and evaporator core housing.

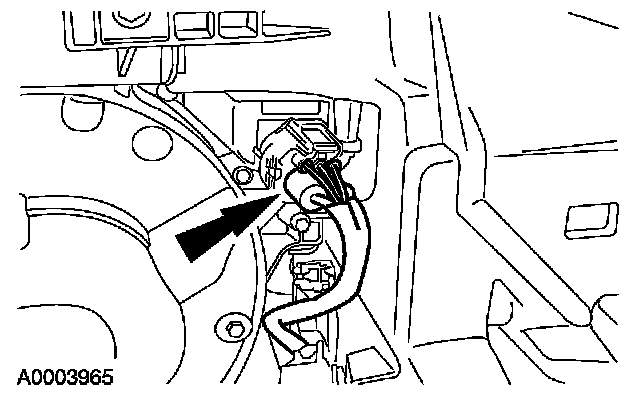

2. Disconnect the blower motor speed control electrical connector.
3. Remove the lower heater core and evaporator core housing to air inlet duct screw.
4. Remove the upper heater core and evaporator core housing to air inlet duct screw.
5. Remove the blower motor speed control screw.

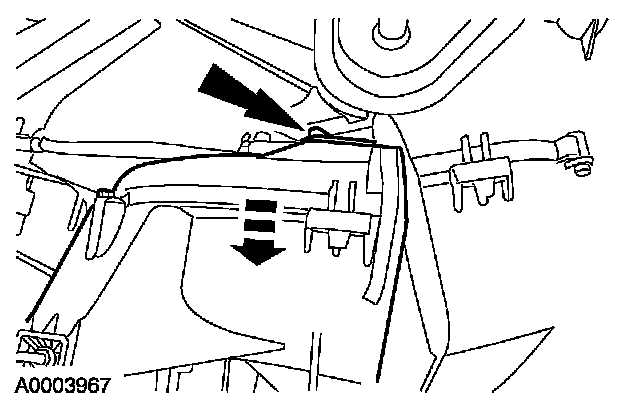

6. Disengage the clip, separate the air inlet and evaporator housings and remove the blower motor speed control.
7. To install, reverse the removal procedure.
