Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

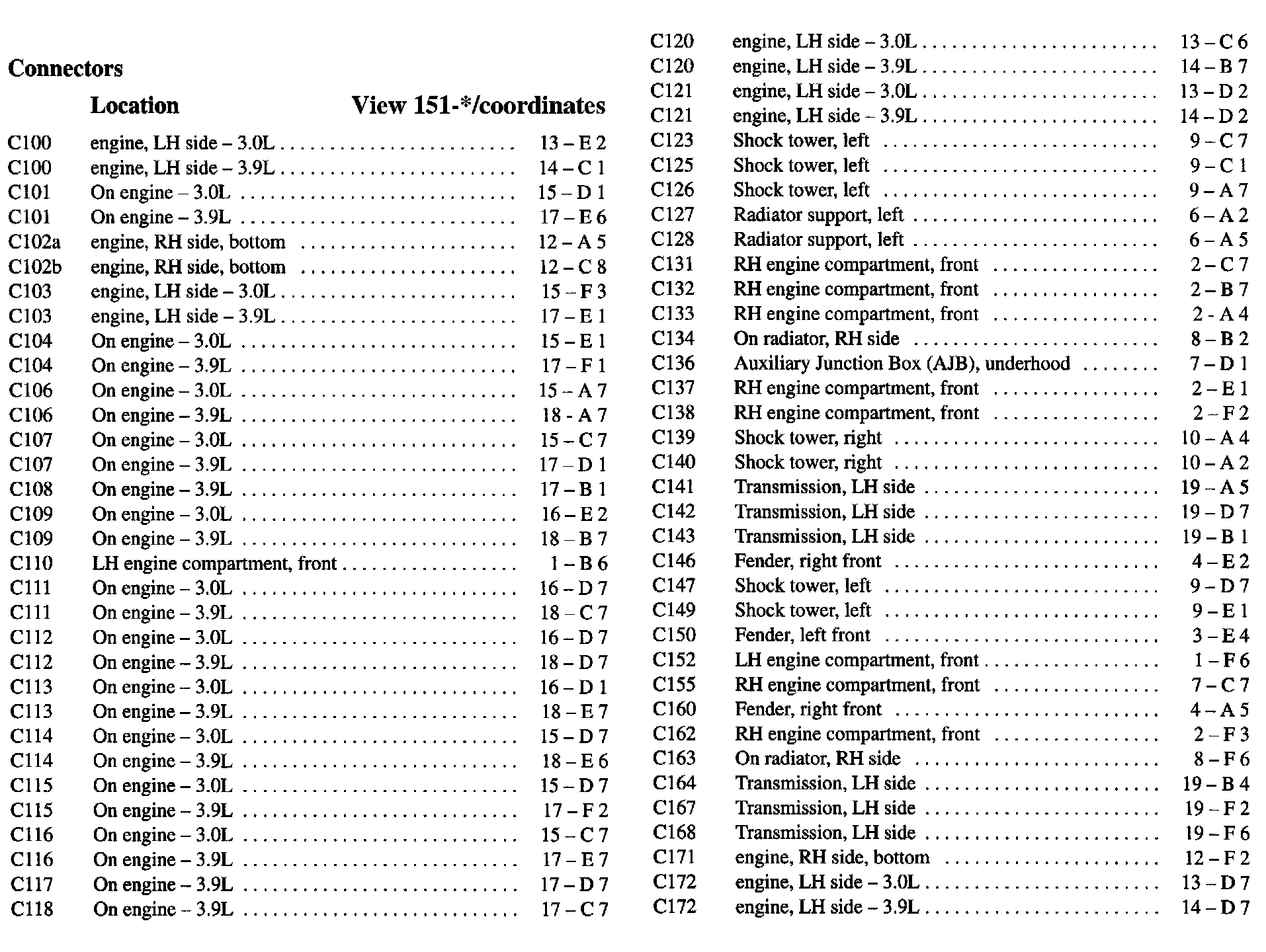

C100-C172:

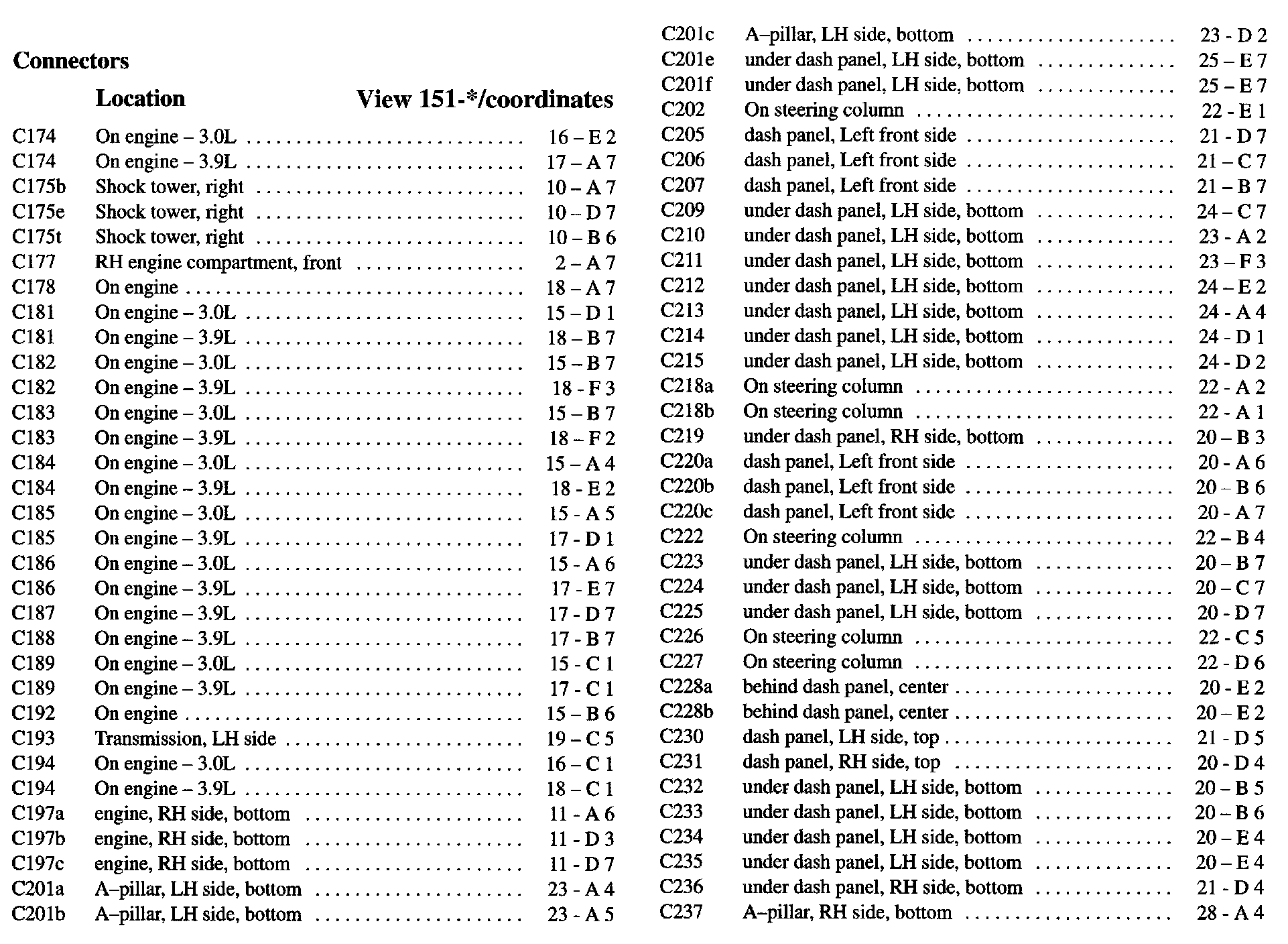

C174-C237:
C238-C341a:

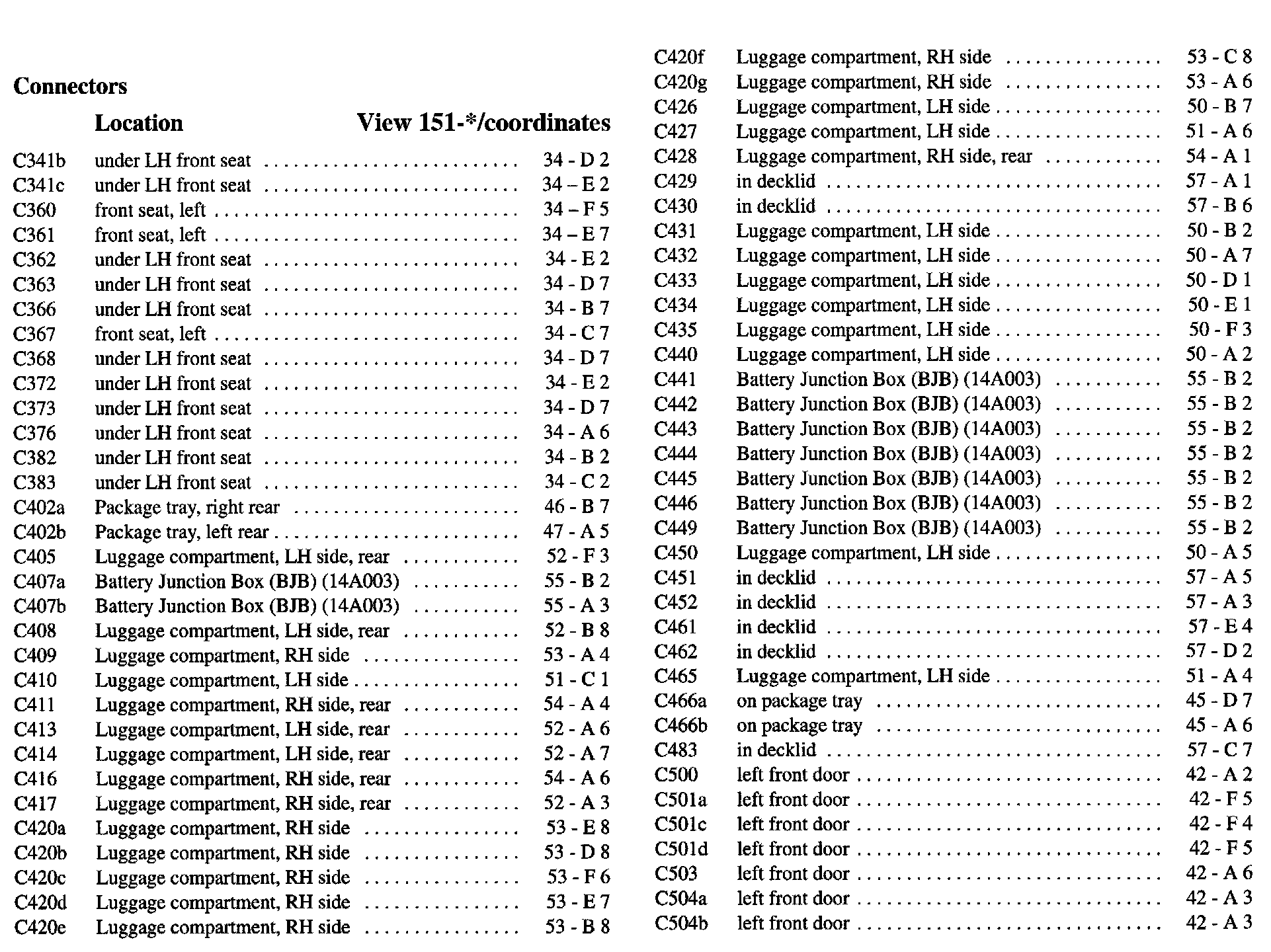

C341b-C504b:

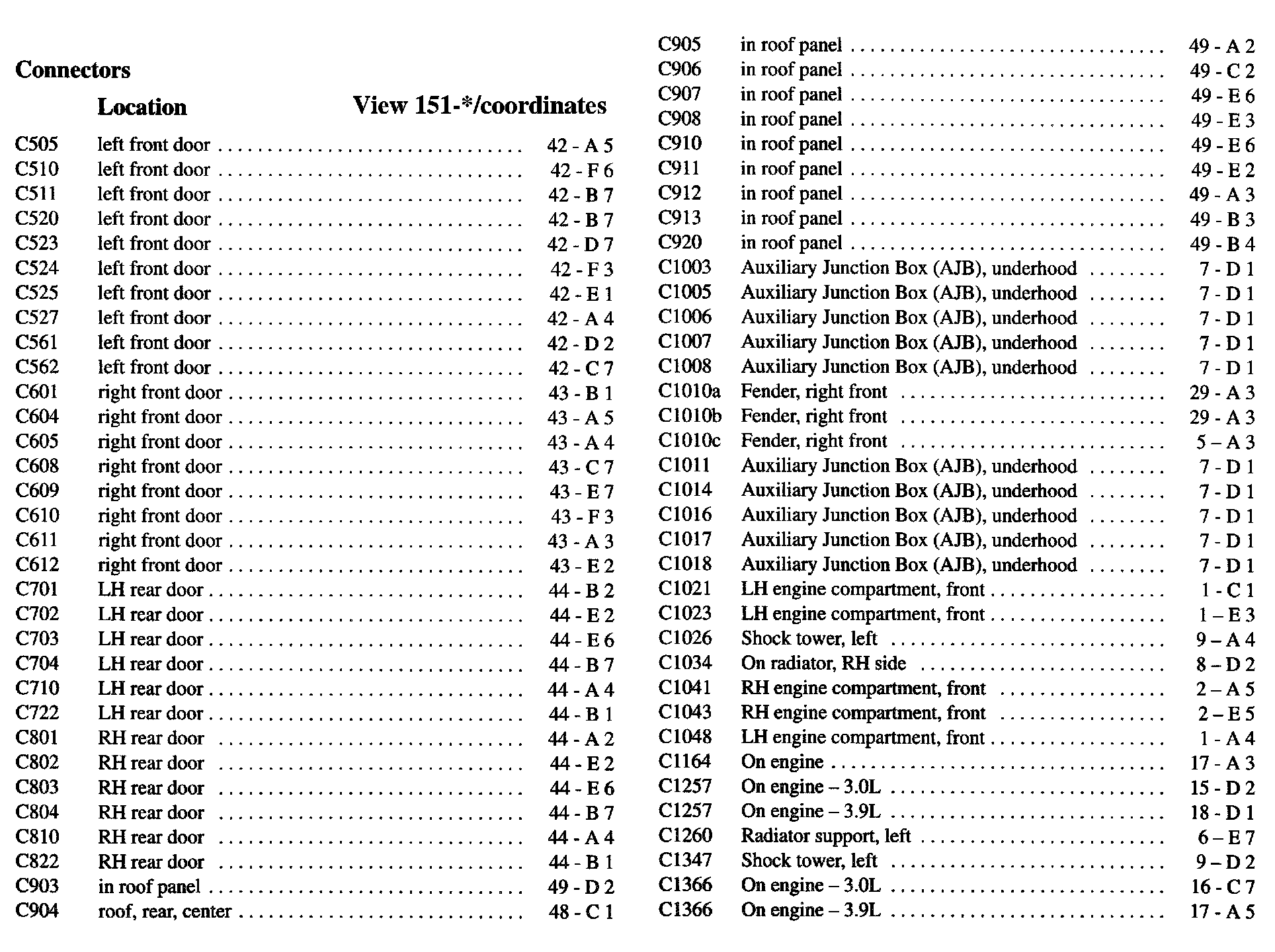

C505-C1366:
C1367-C4070a:

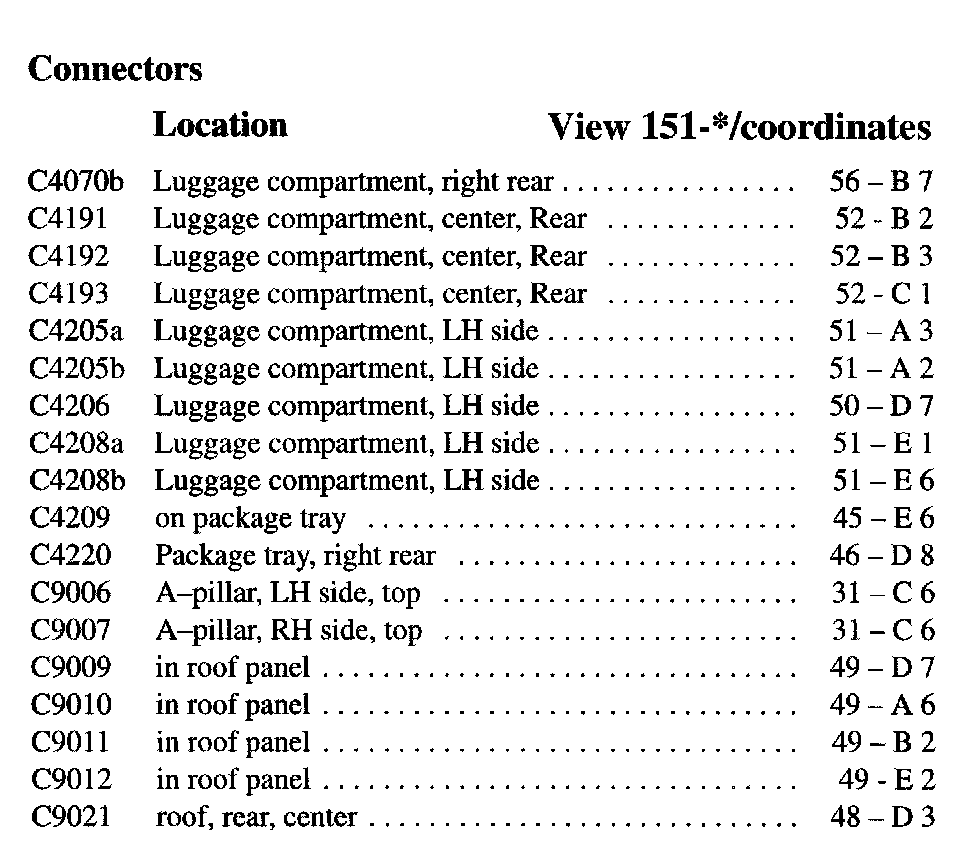

C4070b-C9021:
