Coolant Line/Hose: Service and Repair

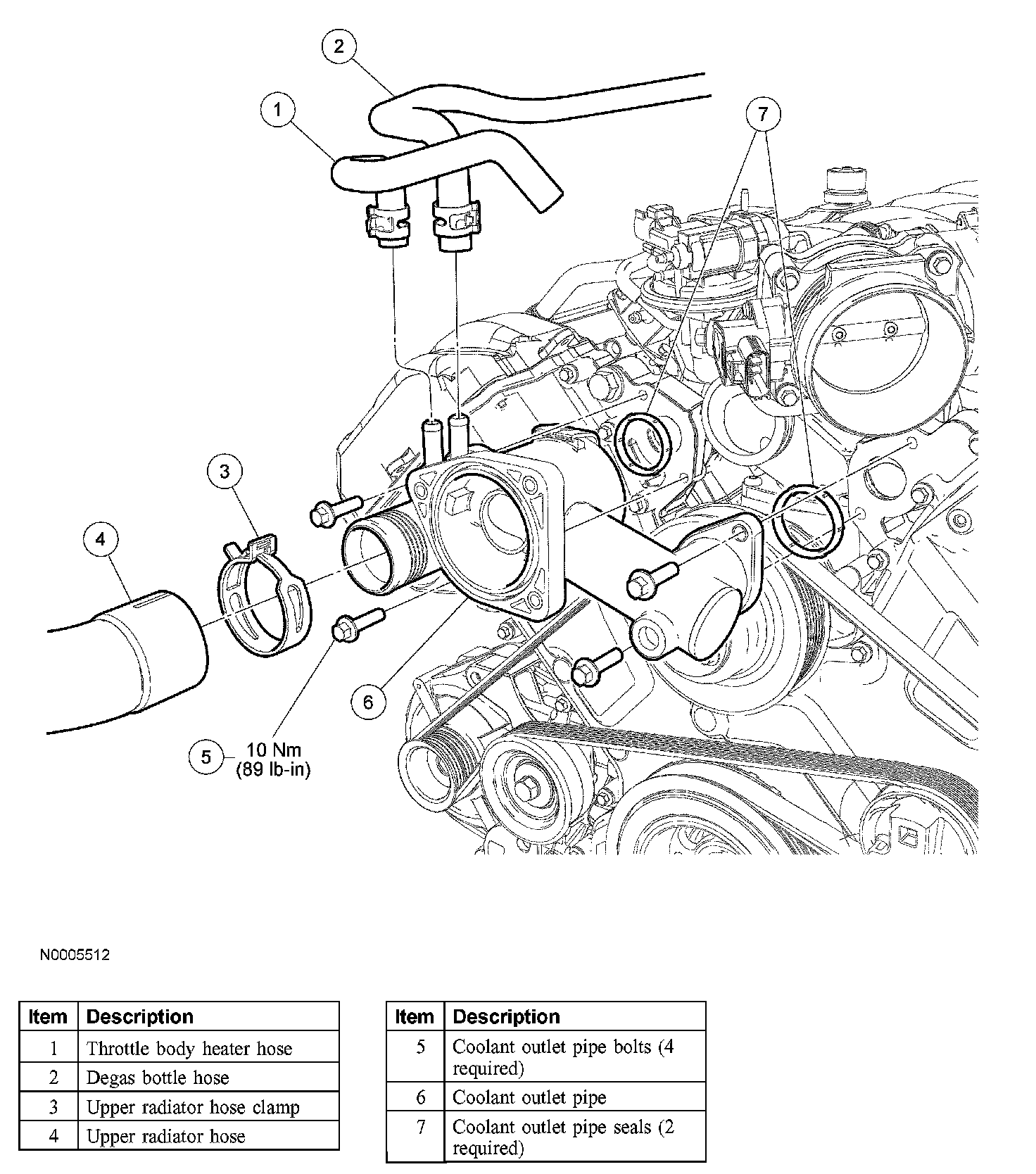

Coolant Outlet Pipe 3.9L

Removal and Installation
1. Drain the cooling system.
3. Disconnect the throttle body heater hose from the coolant outlet pipe and position aside.
4. Disconnect the degas bottle hose from the coolant outlet pipe and position aside.
5. Disconnect the upper radiator hose from the coolant outlet pipe and position aside.
6. Remove the 4 bolts and the coolant outlet pipe.
^ Inspect the 2 coolant outlet pipe seals and install new seals if necessary.
^ To install, tighten to 10 Nm (89 inch lbs.).

7. To install, reverse the removal procedure.
8. Fill and bleed the cooling system.
