Control Assembly: Service and Repair
CLIMATE CONTROL ASSEMBLYRemoval and Installation 1.
Remove the instrument cluster finish panel.
2.

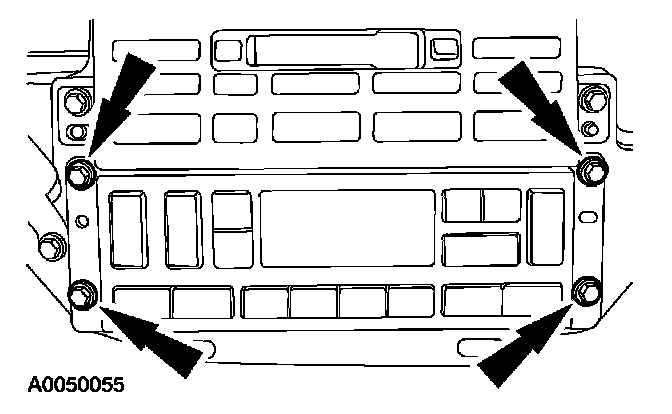

Remove the screws.
3.

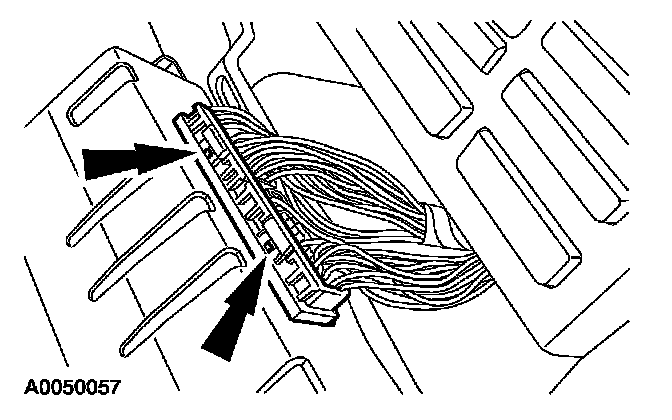

Disconnect the climate control assembly electrical connectors and remove the climate control assembly.
4.
To install, reverse the removal procedure.
