Test F: Navigation System Does Not Operate Correctly - The Navigation Screen Is Inoperative

PINPOINT TEST F: NAVIGATION SYSTEM DOES NOT OPERATE CORRECTLY - THE NAVIGATION SCREEN IS INOPERATIVE


F1:

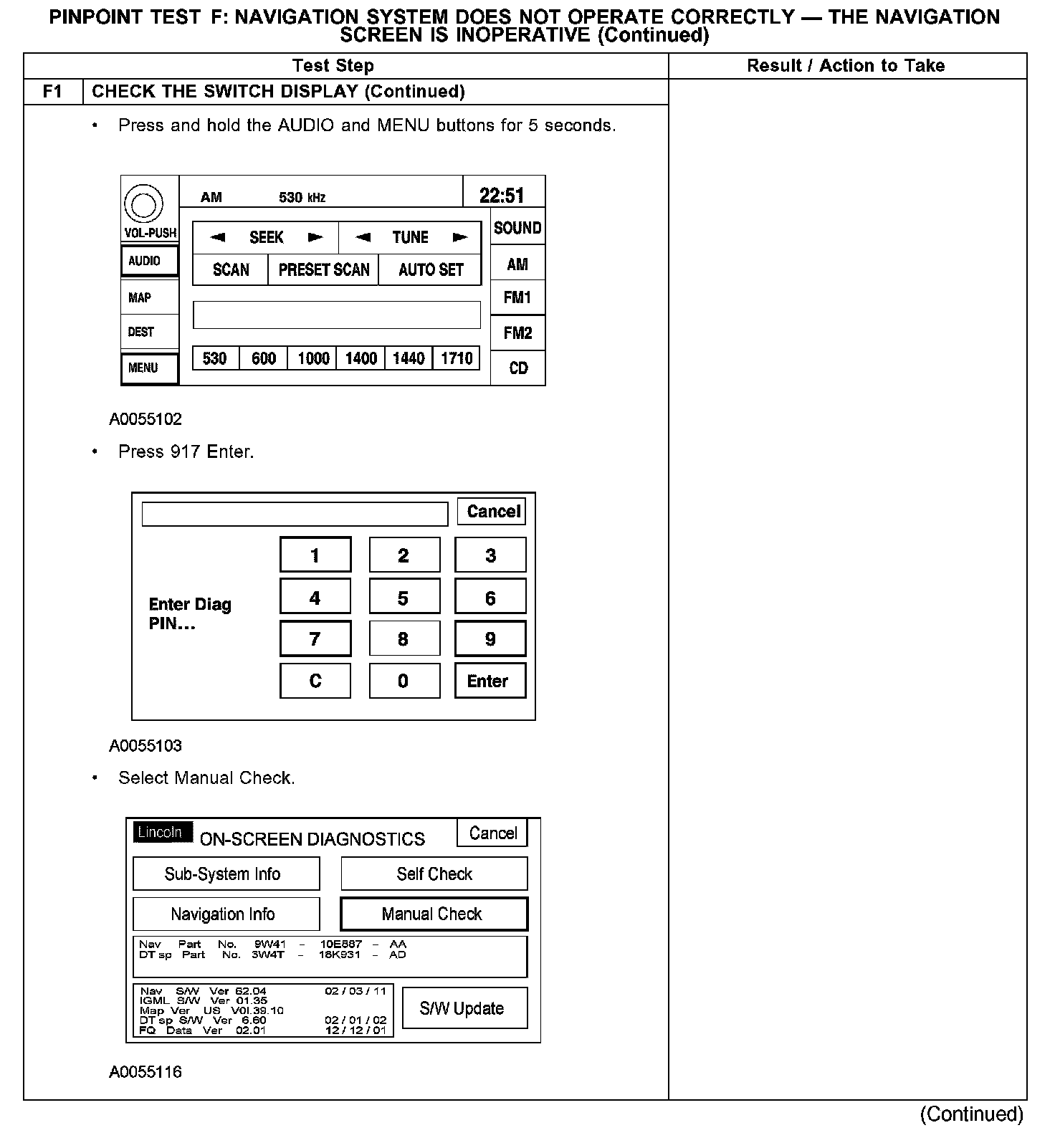

F1 Continued:

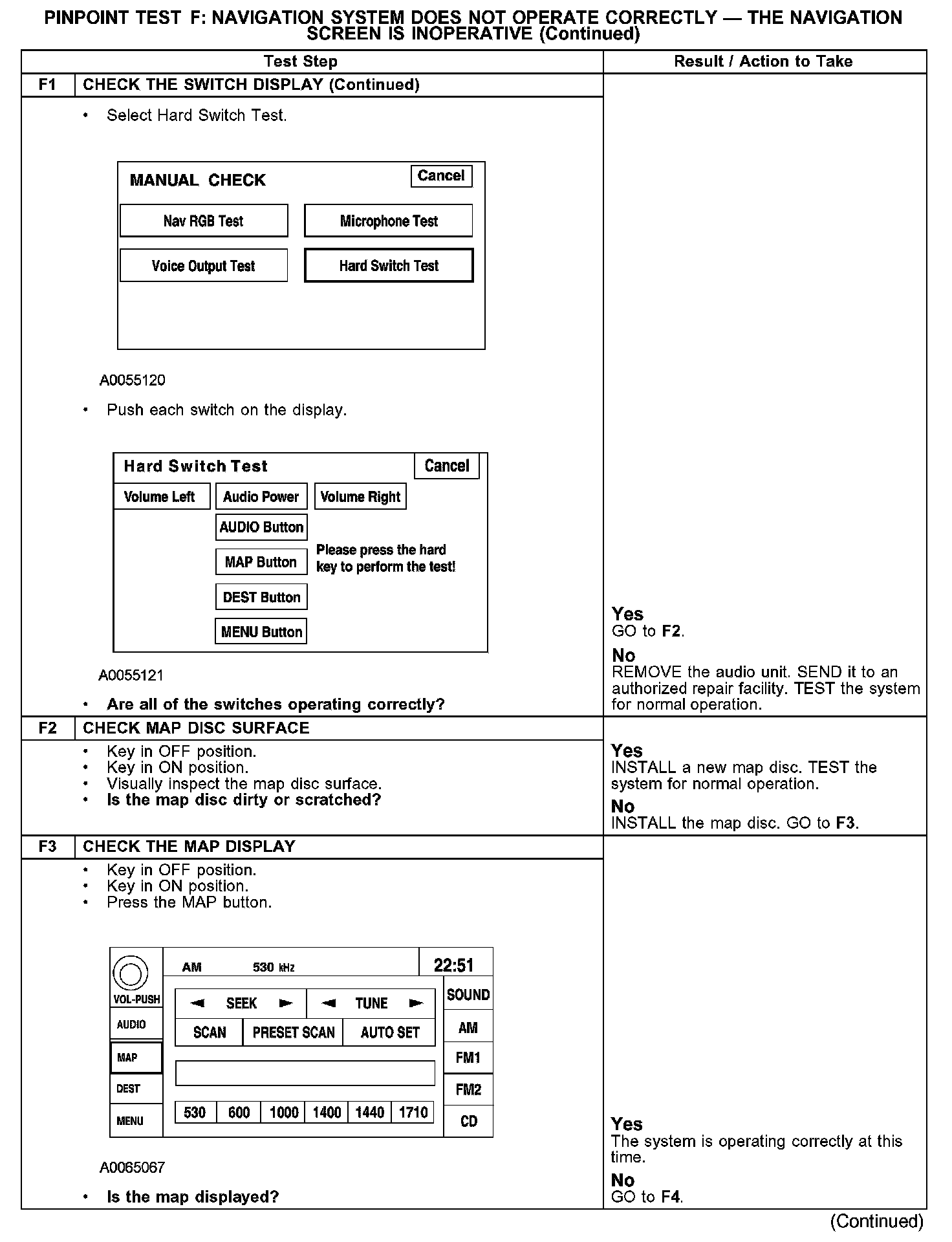

F1-F3:






F4:






Normal Operation
The screen display of the audio unit for audio and navigation is controlled by the navigation module. A map digital versatile disc (DVD) stored in the navigation module sends route data to the audio unit through the video interface circuits.

Possible Causes
- navigation system map DVD
- navigation module
- audio unit
