Register - Center

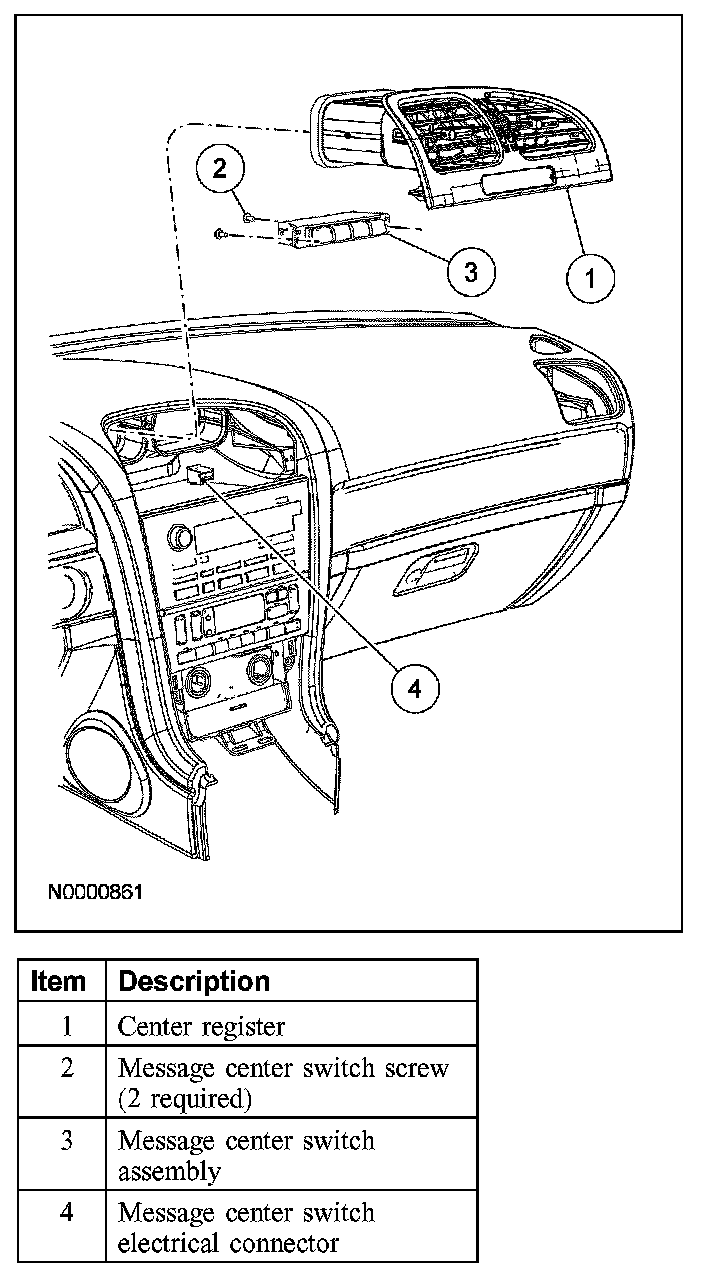

REGISTER - CENTERRemoval and Installation 1.
Insert a mini-pick in the pocket and pull the register from the instrument panel.
2.
Disconnect the message center switch electrical connector.
3.
Remove the 2 message center switch screws.
4.
Remove the message center switch.
5.
To install, reverse the removal procedure.
