Horn: Service and Repair

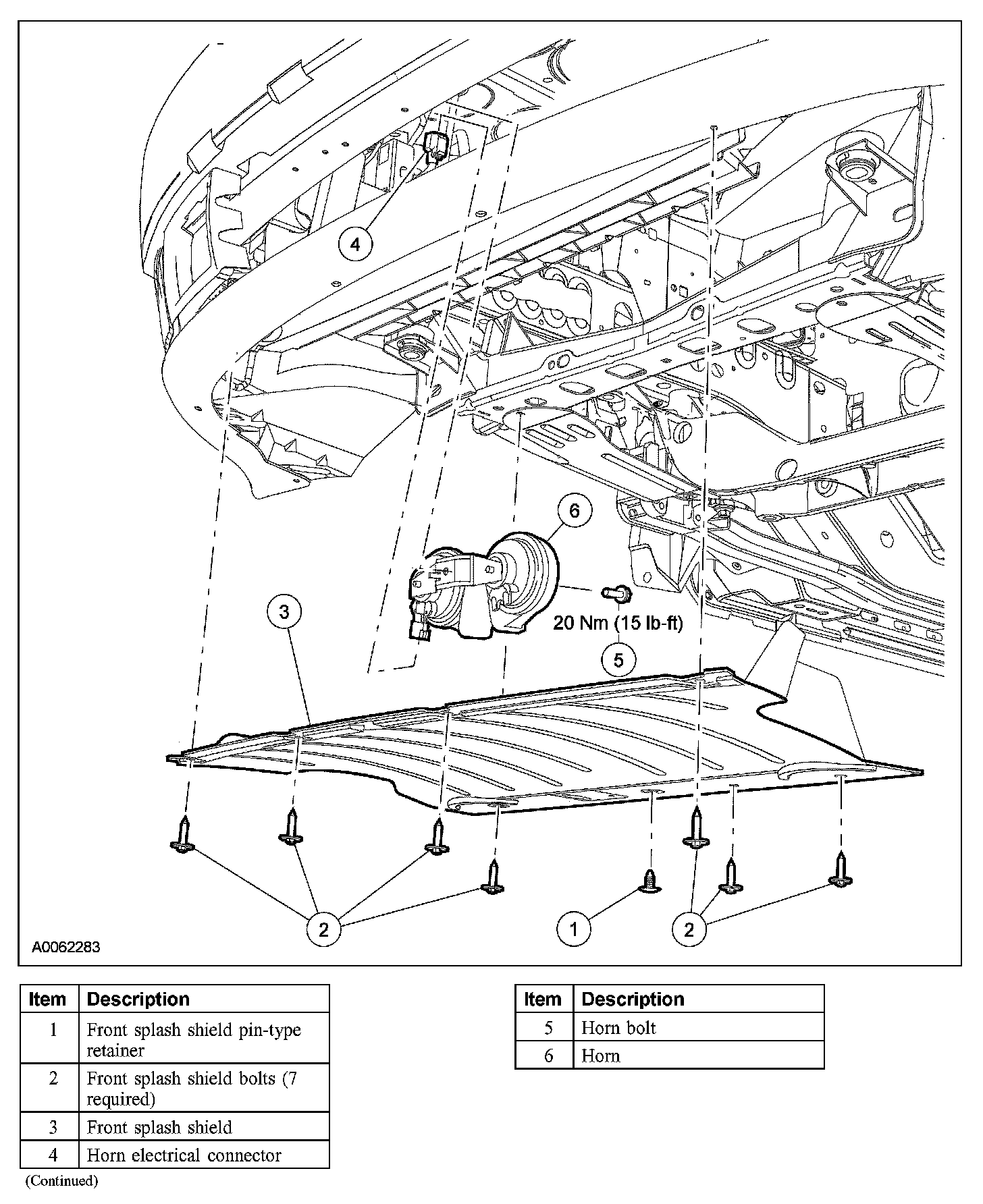

HORNRemoval and Installation 1.
With the vehicle in NEUTRAL, position it on a hoist.
2.
Remove the front splash shield
-
Remove the 7 bolts.
-
Remove the pin type retainer.
3.
Disconnect the
horn electrical connector.
4.
Remove the bolt and the
horn.
-
To install, tighten to
20 Nm (15 lb-ft).
5.
To install, reverse the removal procedure.
