Toe Adjustment-Front
Front Toe Adjustment1. Using alignment equipment and the manufacturer's instructions, measure the toe.
2. Start the engine and center the steering wheel.
3. Turn the engine OFF and, using a suitable holding device, lock the steering wheel in the straight-ahead position.

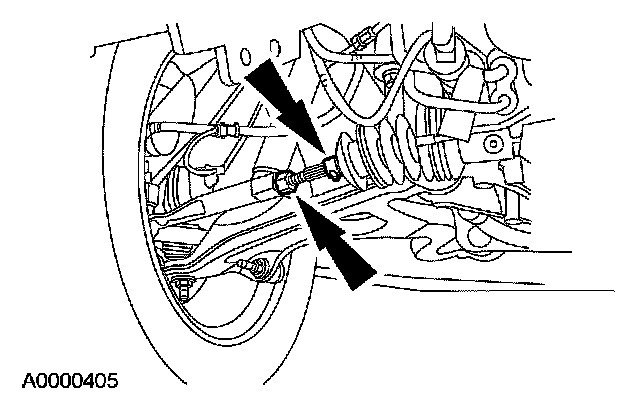

4. Loosen the tie-rod jam nuts and remove the steering gear bellows clamps.

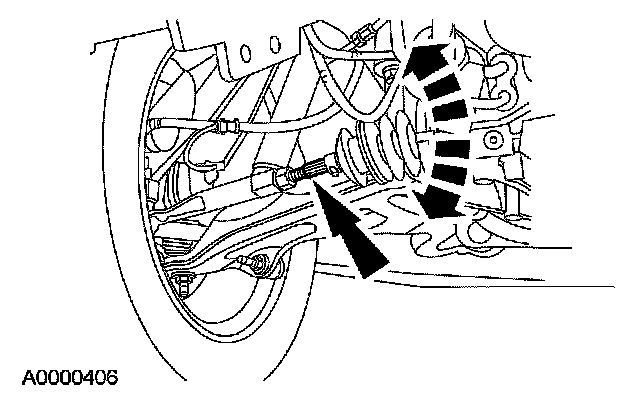

5. NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle inner tie rod is rotated.
Rotate the front wheel spindle inner tie rods.

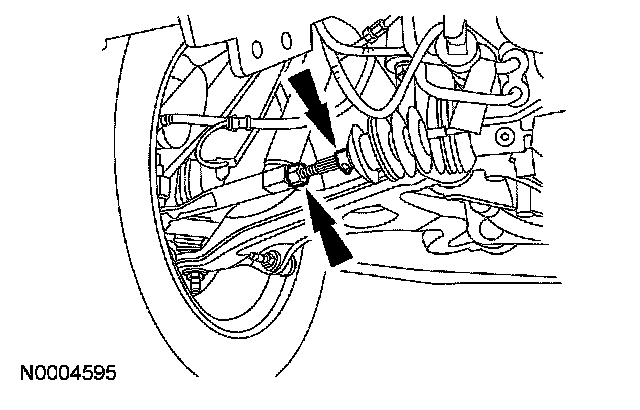

6. Tighten the tie-rod jam nuts. Install the steering gear bellows clamps.
^ Tighten to 55 Nm (41 ft. lbs.).
7. Recheck the toe settings and adjust if necessary.
