Toe Adjustment-Rear

Rear Toe Adjustment

1. Using alignment equipment and the manufacturer's instructions, measure the toe.
2. Start the engine and center the steering wheel.
3. Turn the engine OFF and, using a suitable holding device, lock the steering wheel in the straight-ahead position.

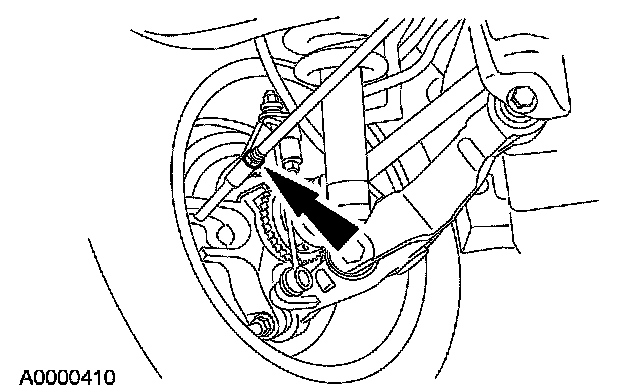

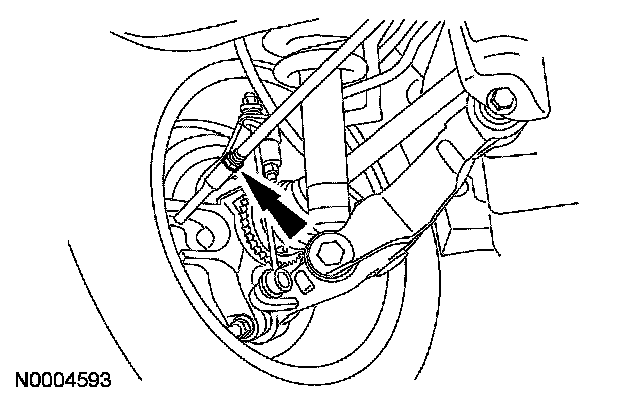

4. Loosen the toe link jam nut.

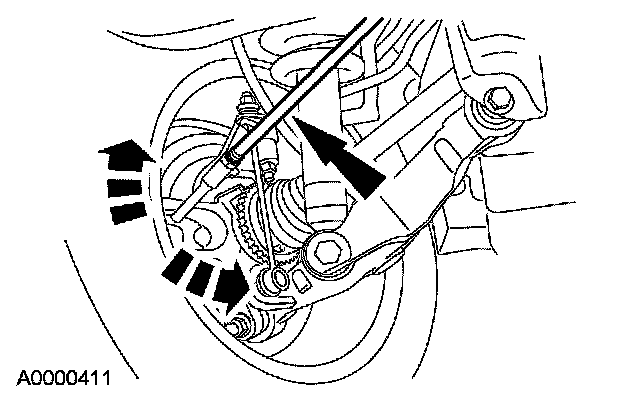

5. Rotate the toe link to adjust the toe.





6. Tighten the toe link jam nut.
^ Tighten to 55 Nm (41 ft. lbs.).

7. Recheck the toe settings and adjust if necessary.
