Battery Tray

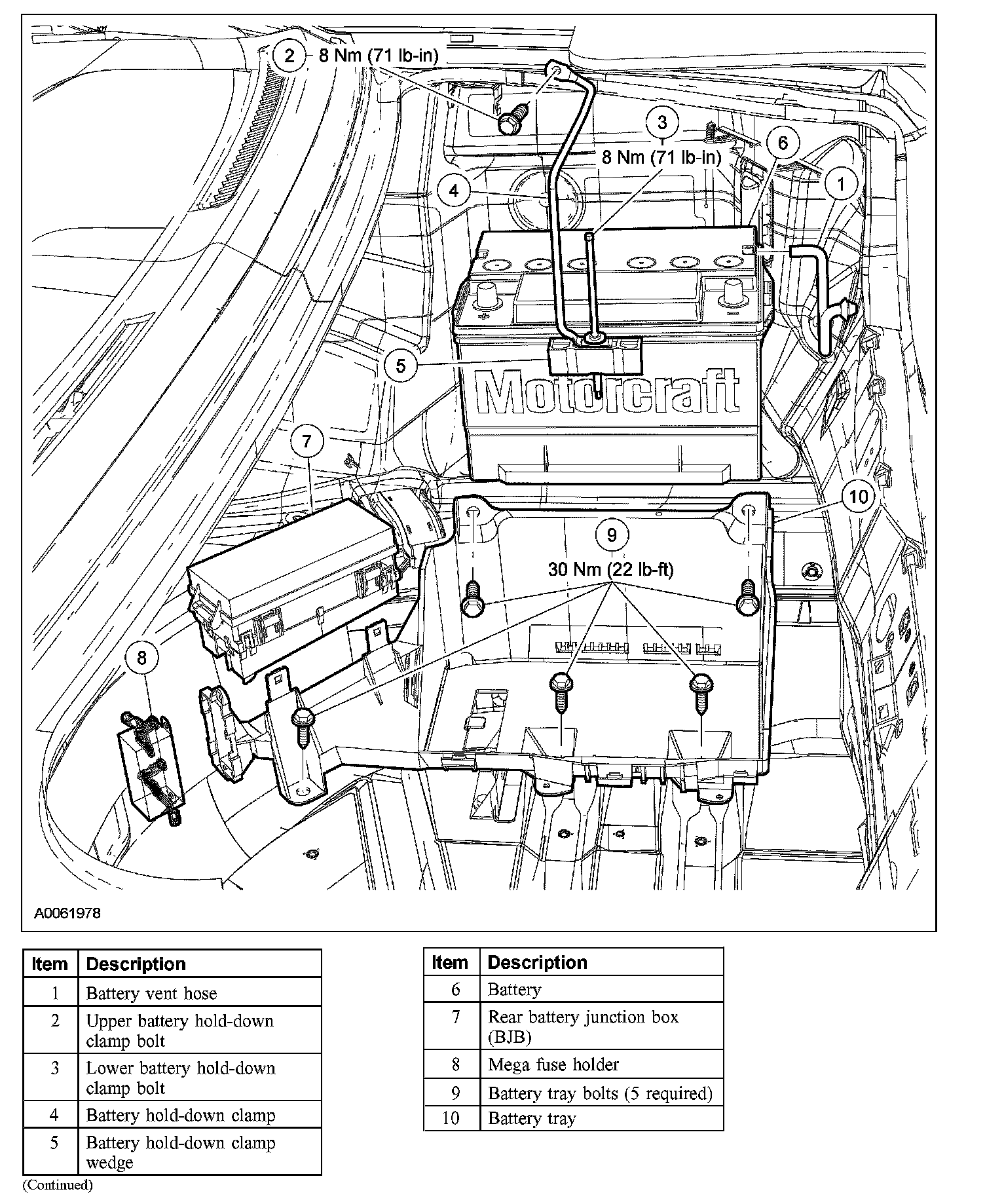

BATTERY TRAYExploded ViewRemoval and Installation 1.
Remove the battery.
2.
Remove the rear battery junction box (BJB) from the battery tray.
3.
Remove the mega fuse holder from the battery tray.
4.
Remove the 5 bolts and the battery tray.
-
To install, tighten to
30 Nm (22 lb-ft).
5.
To install, reverse the removal procedure.
