Test D: The Multi-Function Switch/Hazard Switch Does Not Operate Correctly
TEST D: THE MULTI-FUNCTION SWITCH/HAZARD SWITCH DOES NOT OPERATE CORRECTLY Normal Operation The multi-function/hazard switch controls the following components:
^
Turn signals
^
High/low beam/flash-to-pass headlamps
^
Wiper/washers
^
Hazard lamps
Possible Causes ^
Multi-function/hazard switch

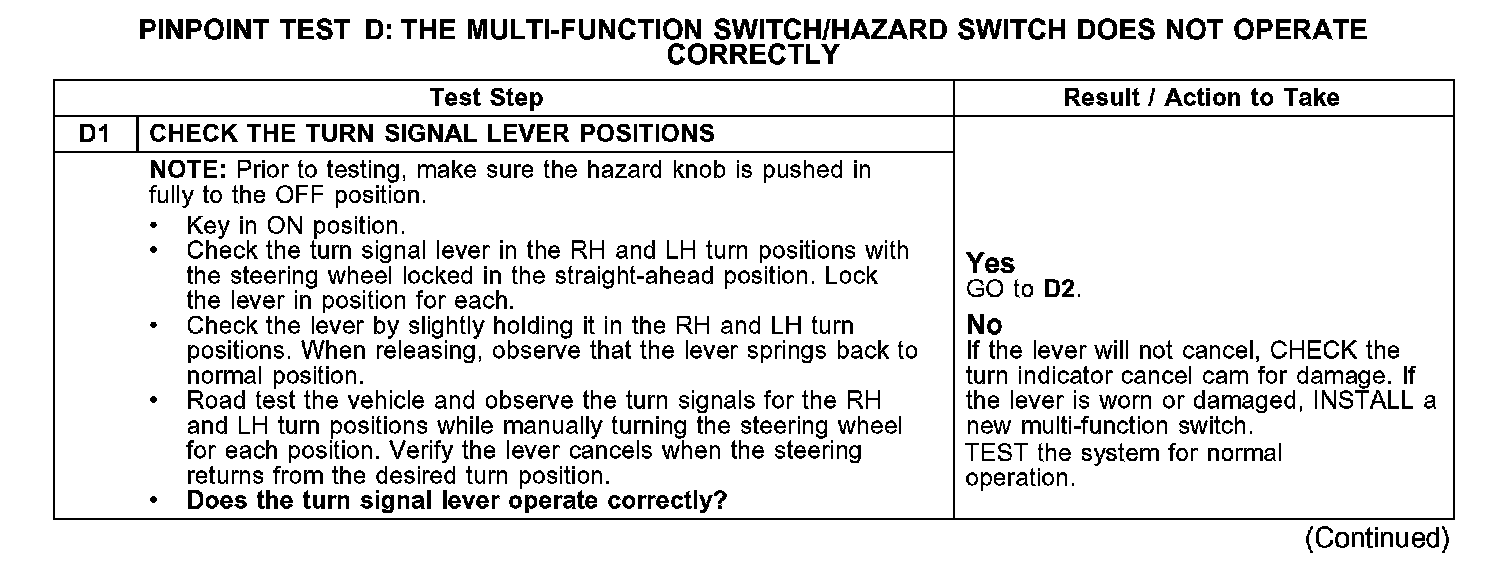

D1:

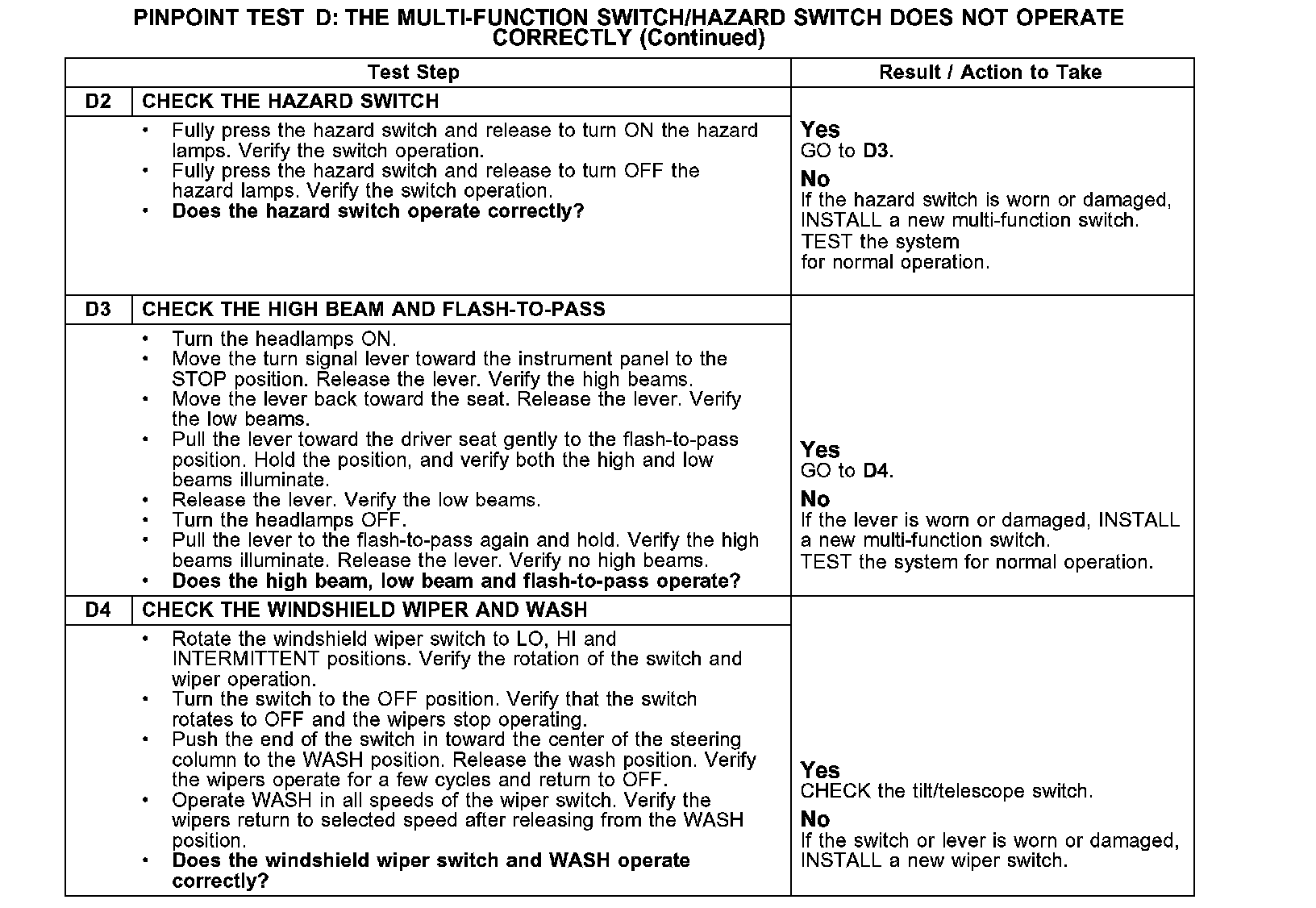

D2-D4:
