Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

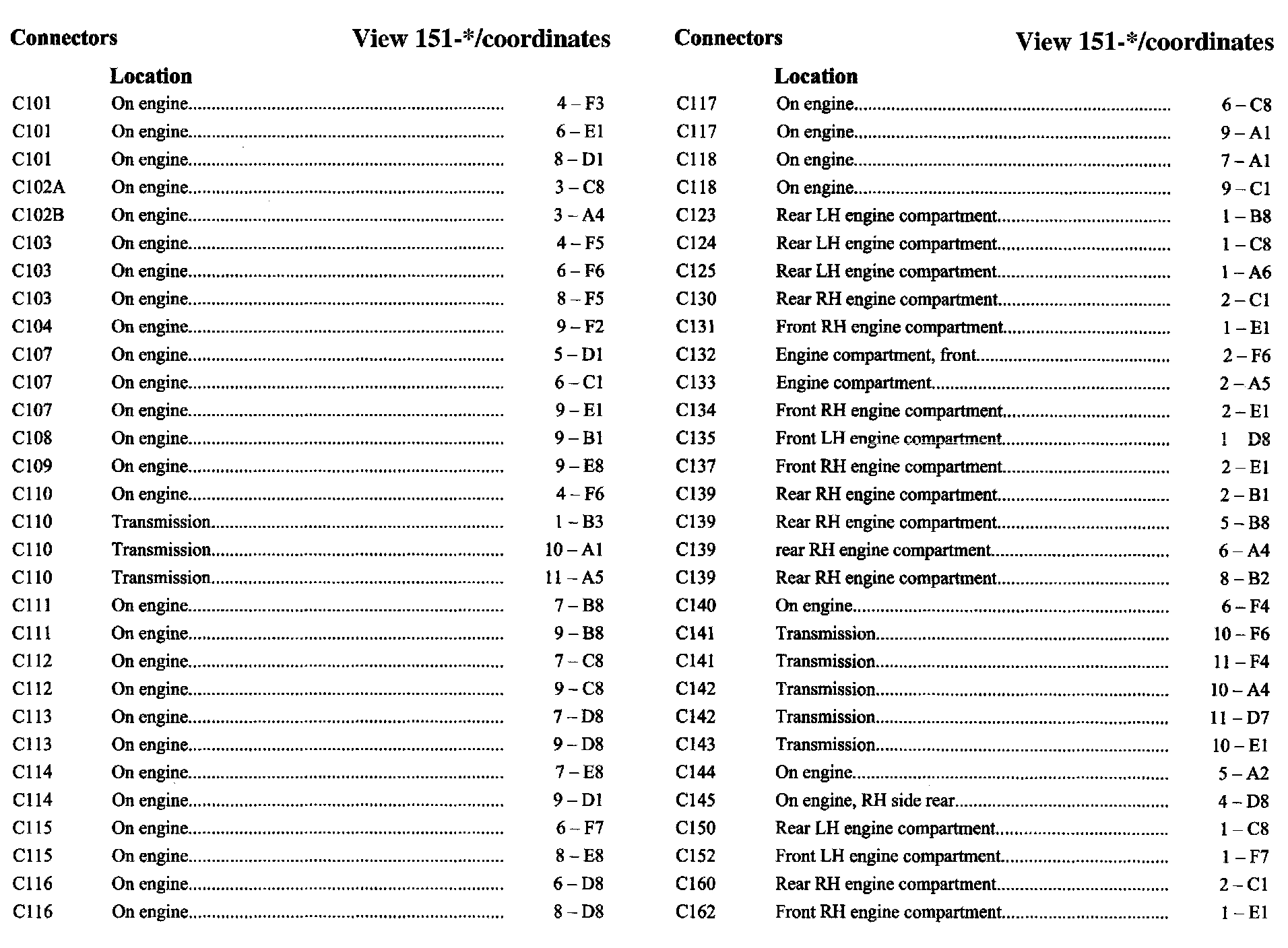

C101-C162:

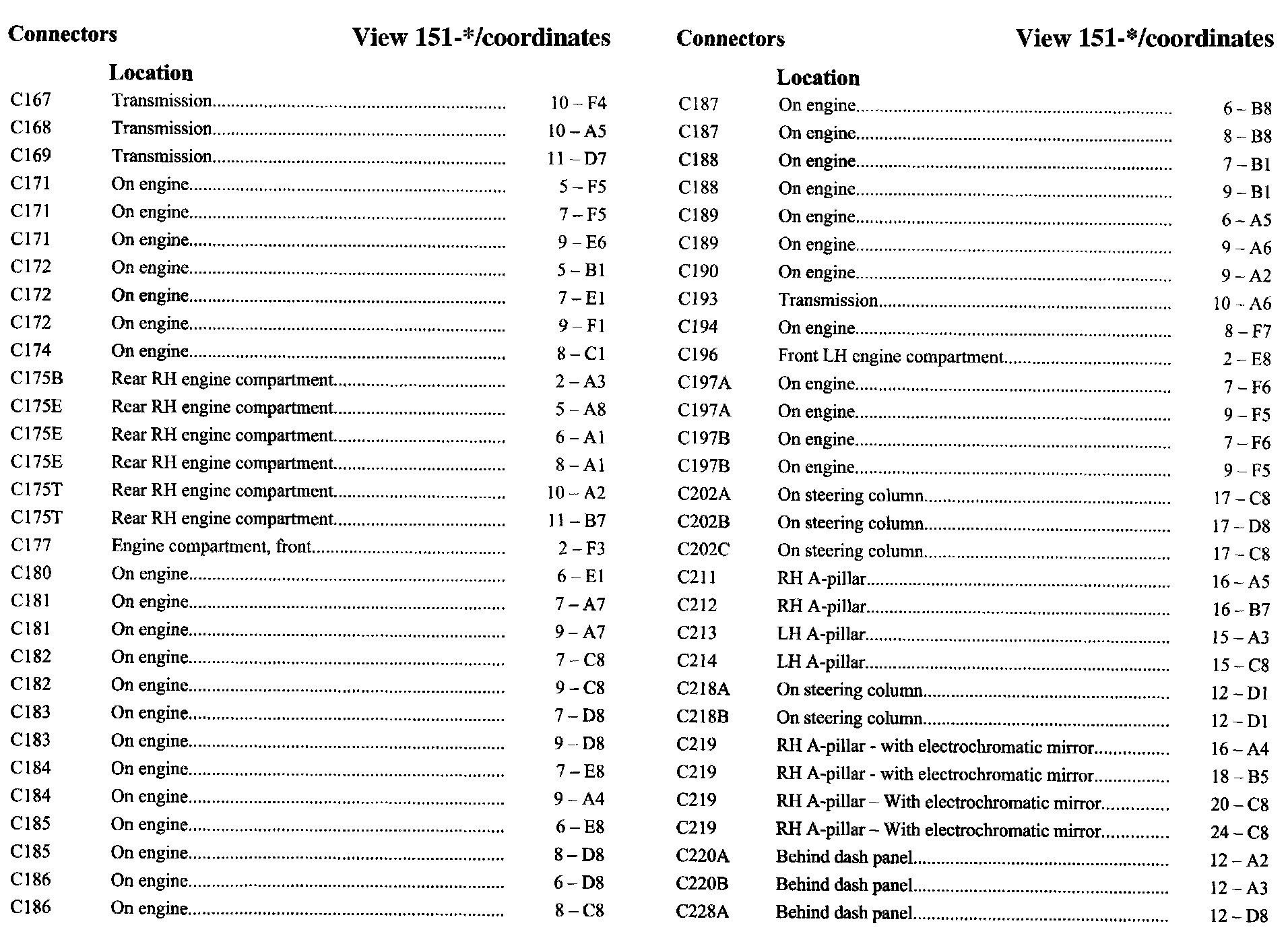

C167-C228A:

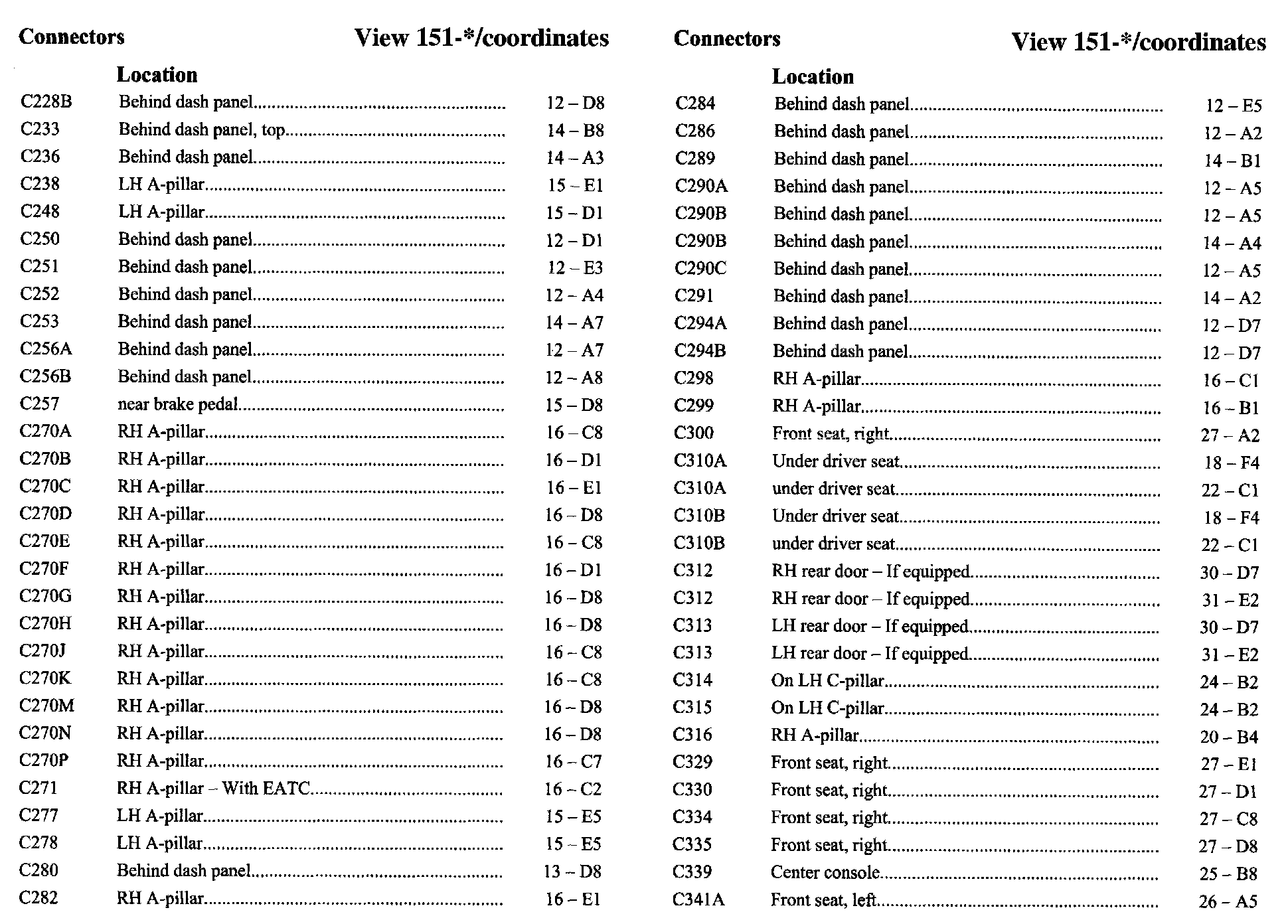

C228B-C341A:

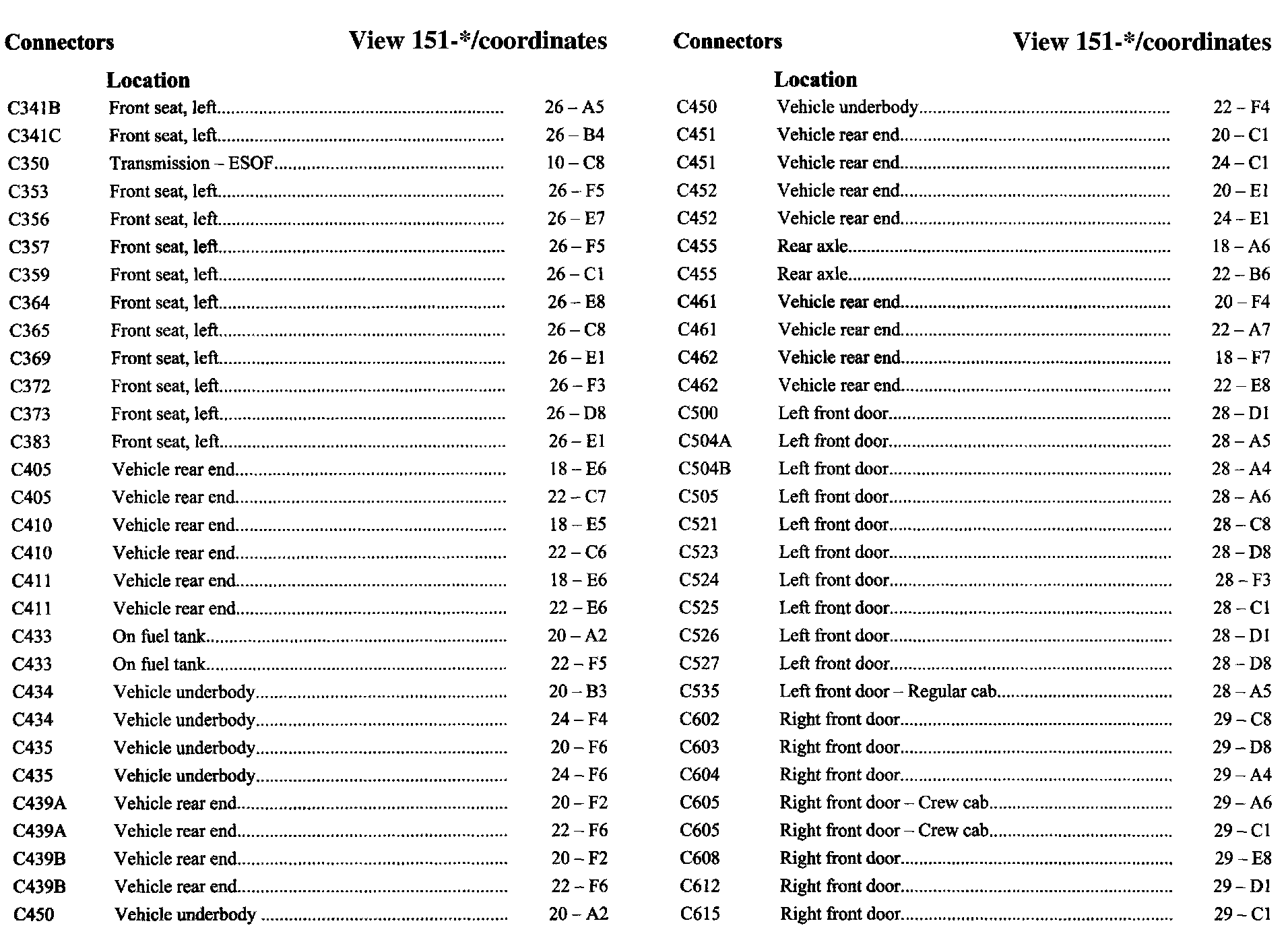

C341B-C615:
C701-C1183:

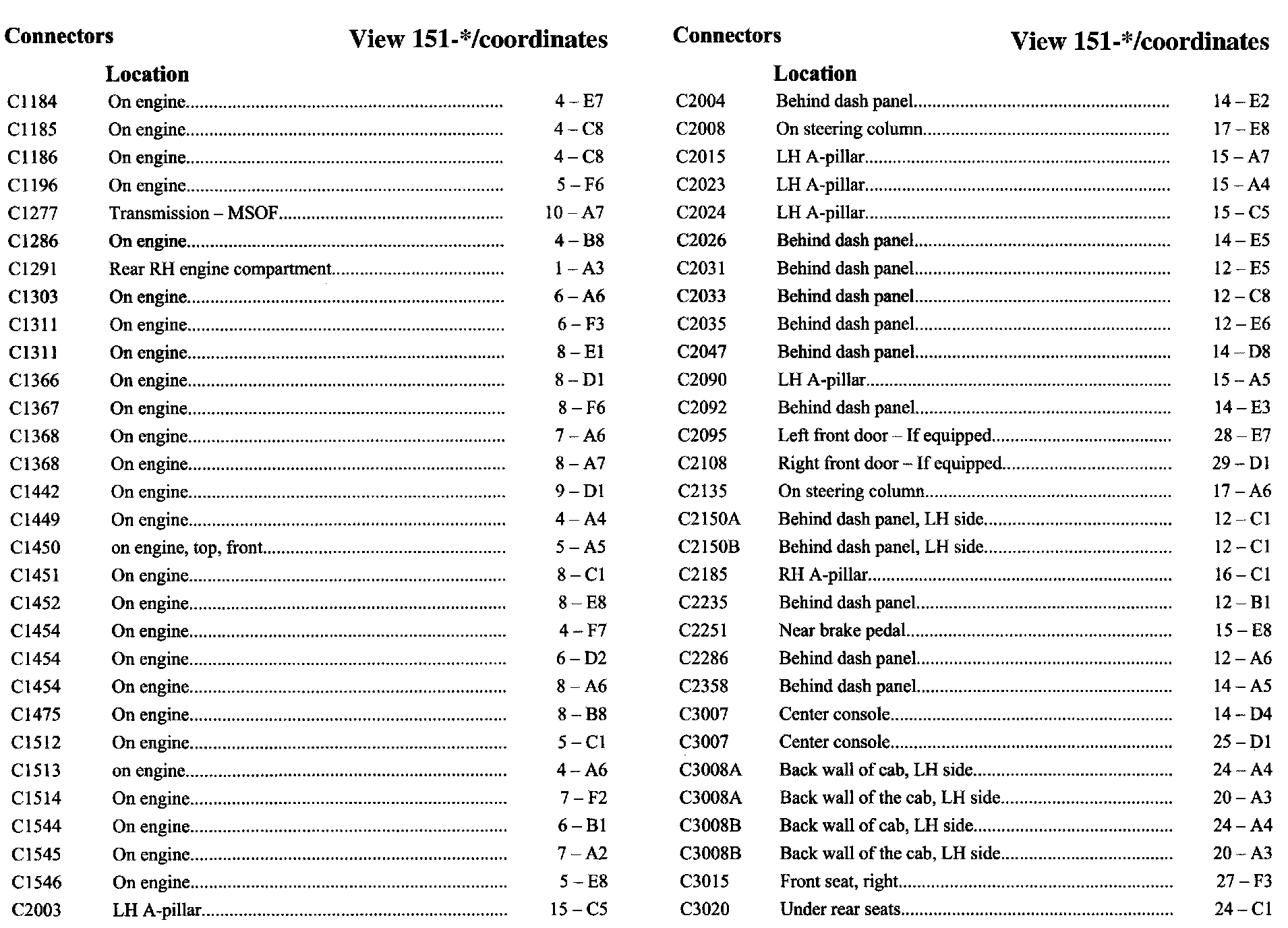

C1184-C3020:

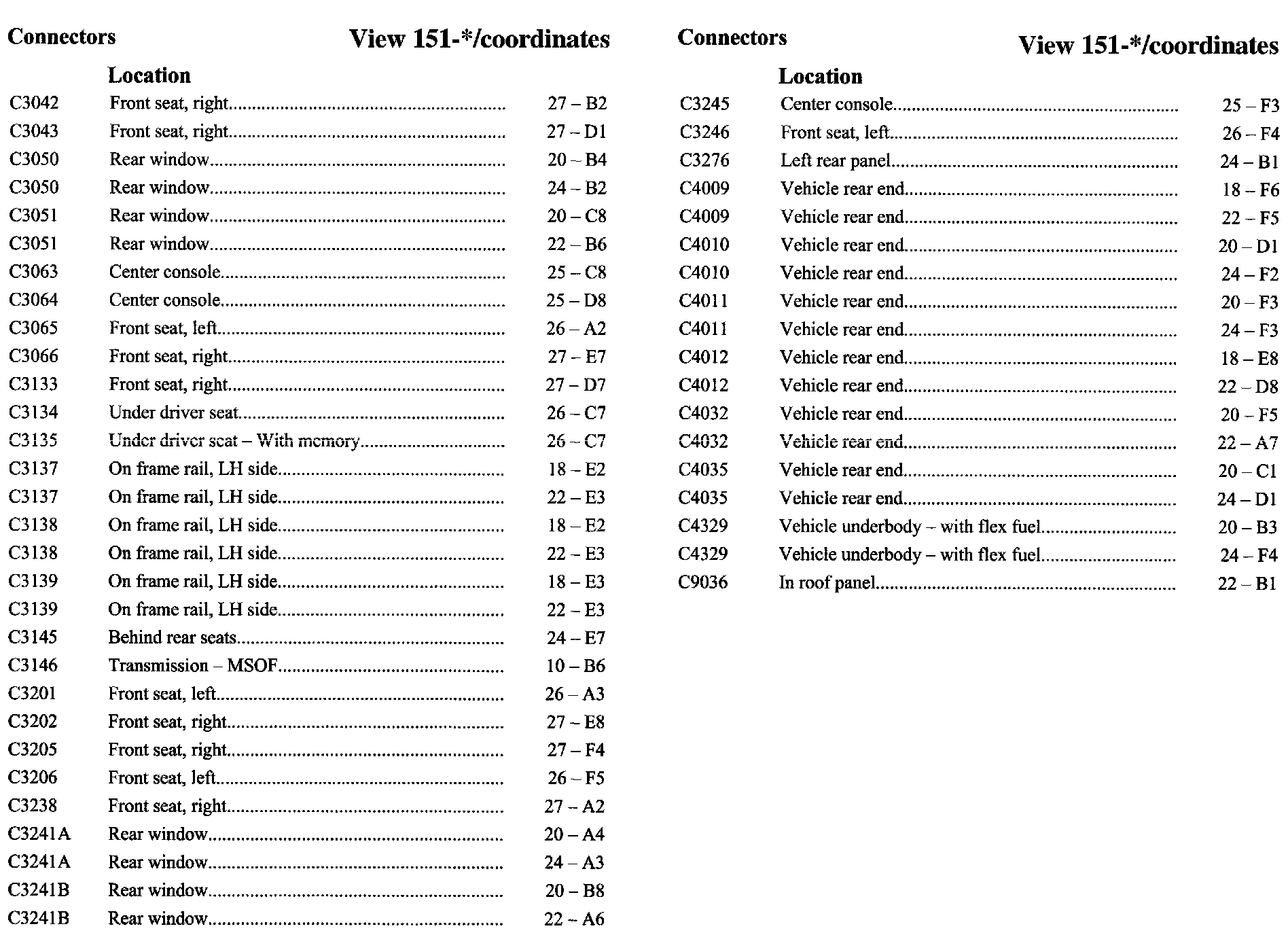

C3042-C9036:
