Safety Belt System - Exploded View, Front

SAFETY BELT SYSTEM - EXPLODED VIEW, FRONT

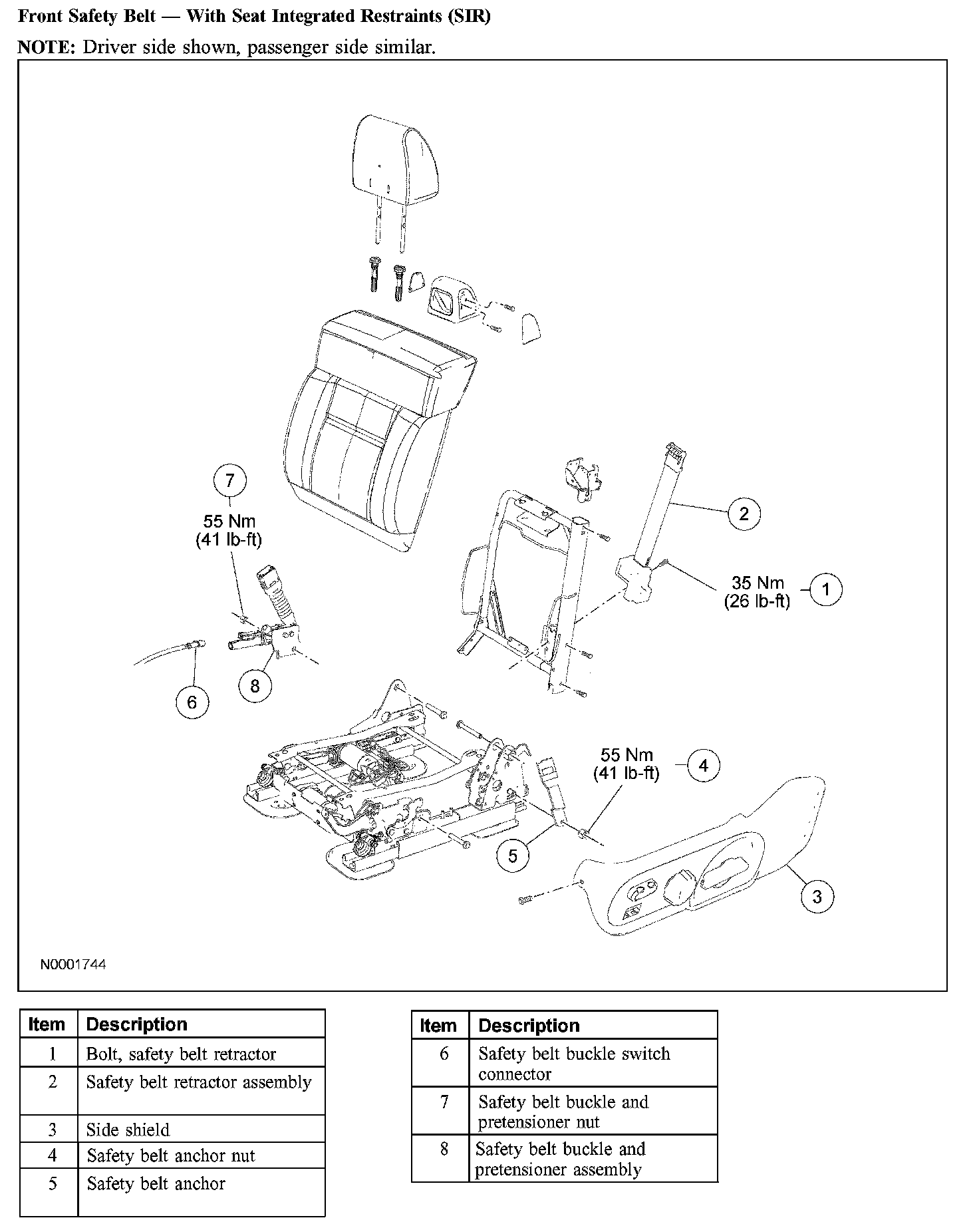

Front Seat Belt - With Seat Integrated Restraints (SIR):

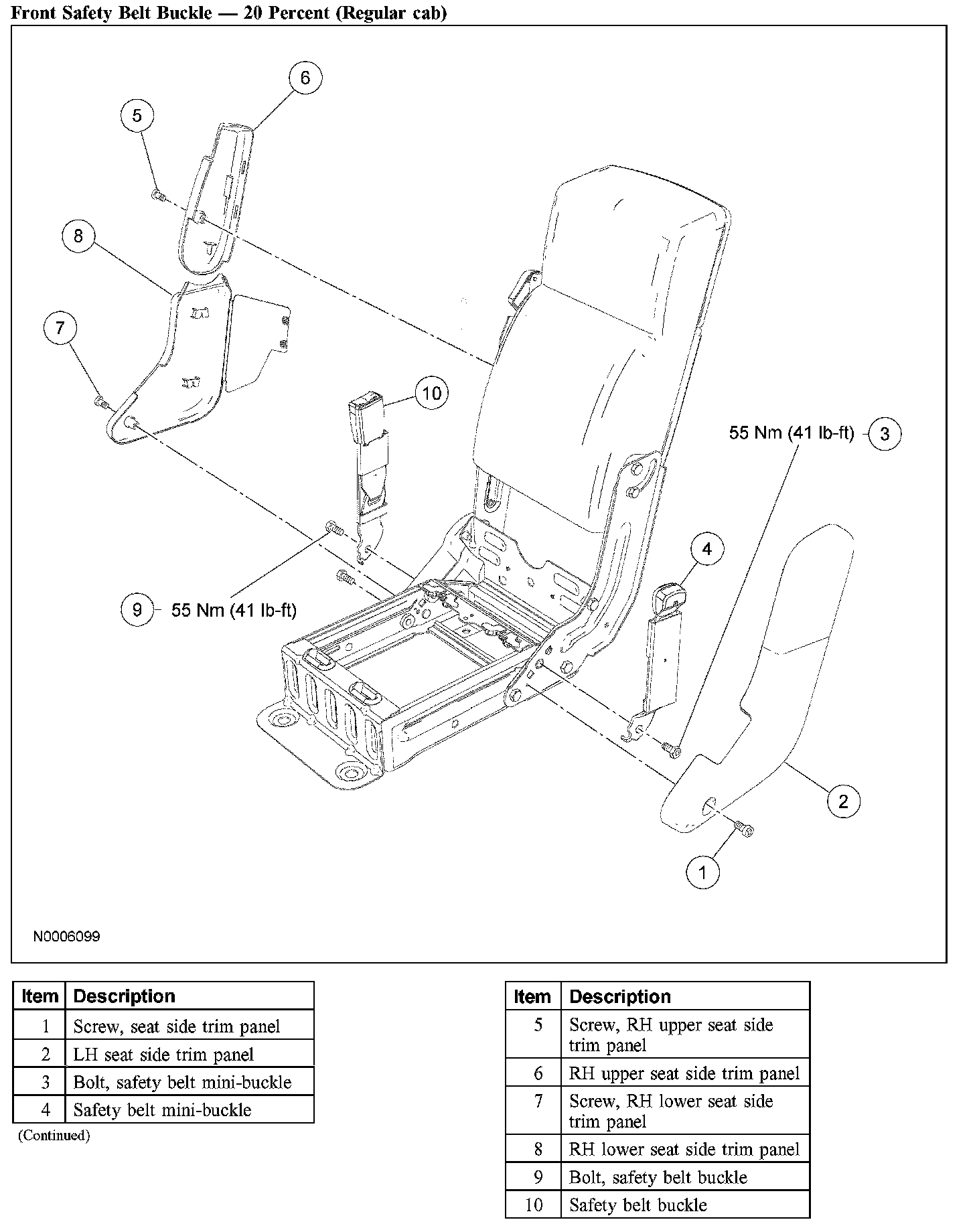

Front Safety Belt Buckle - 20 Percent (Regular Cab):

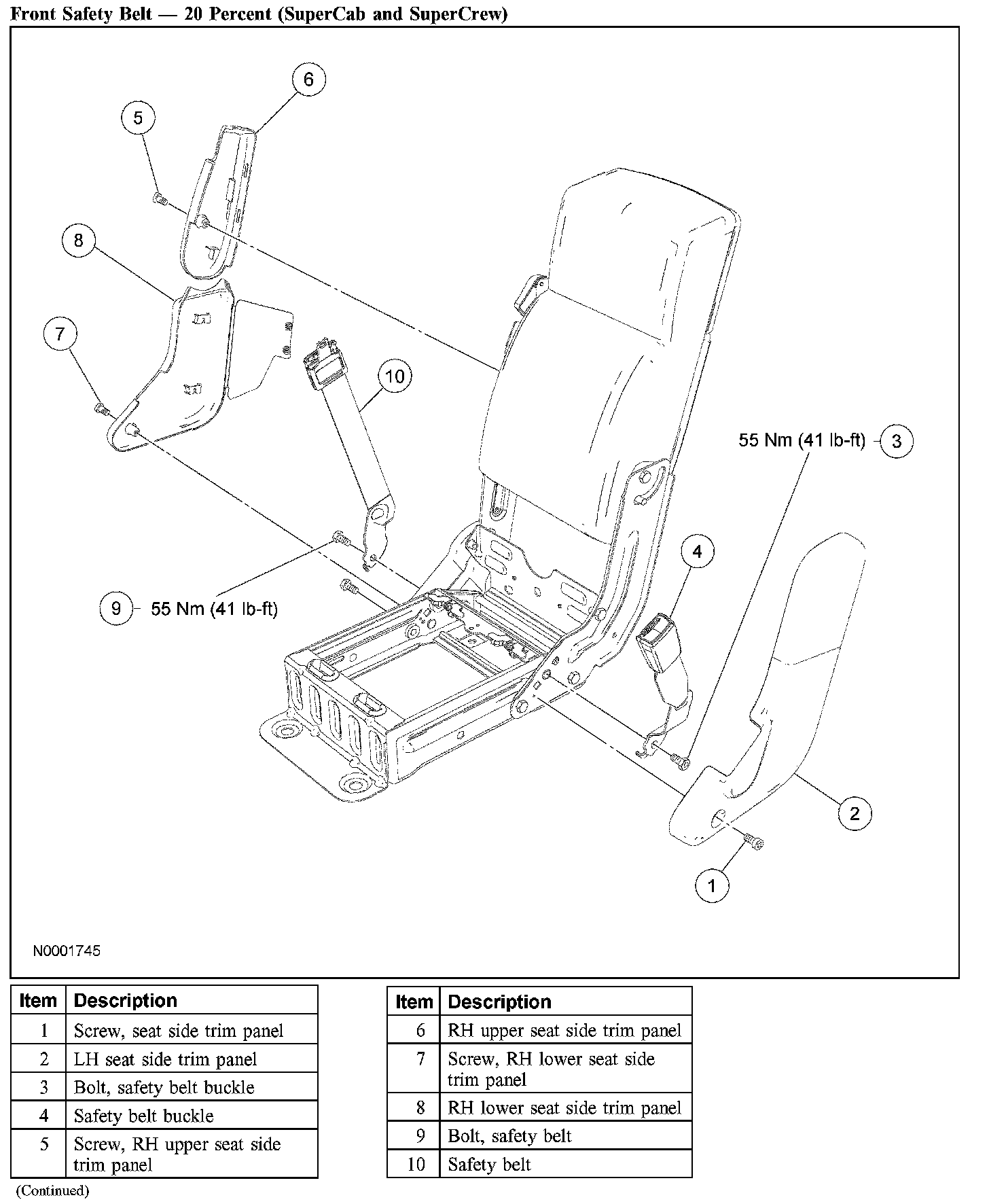

Front Safety Belt - 20 Percent (SuperCab And SuperCrew):

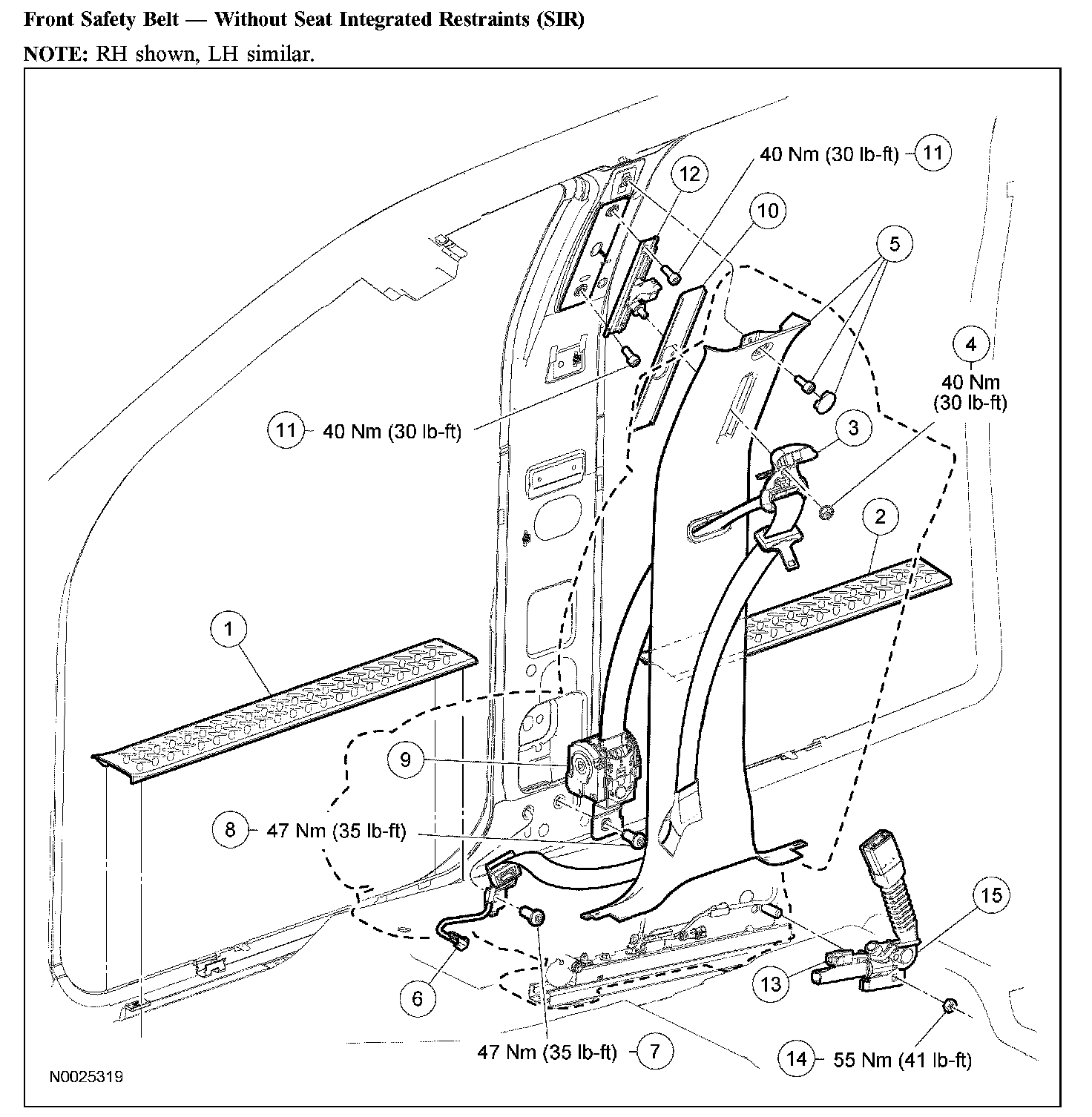

Front Safety Belt - Without Seat Integrated Restraints (SIR) (Part 1):

Front Safety Belt - Without Seat Integrated Restraints (SIR) (Part 2):

Removal and Installation
1. For additional information, refer to the procedures.
