Retractable Running Board Sensor Wiring Harness

RETRACTABLE RUNNING BOARD SENSOR WIRING HARNESS

Removal and Installation

1. Remove the retractable running board motor.
- Remove the bolts and remove the cover and retractable running board motor.

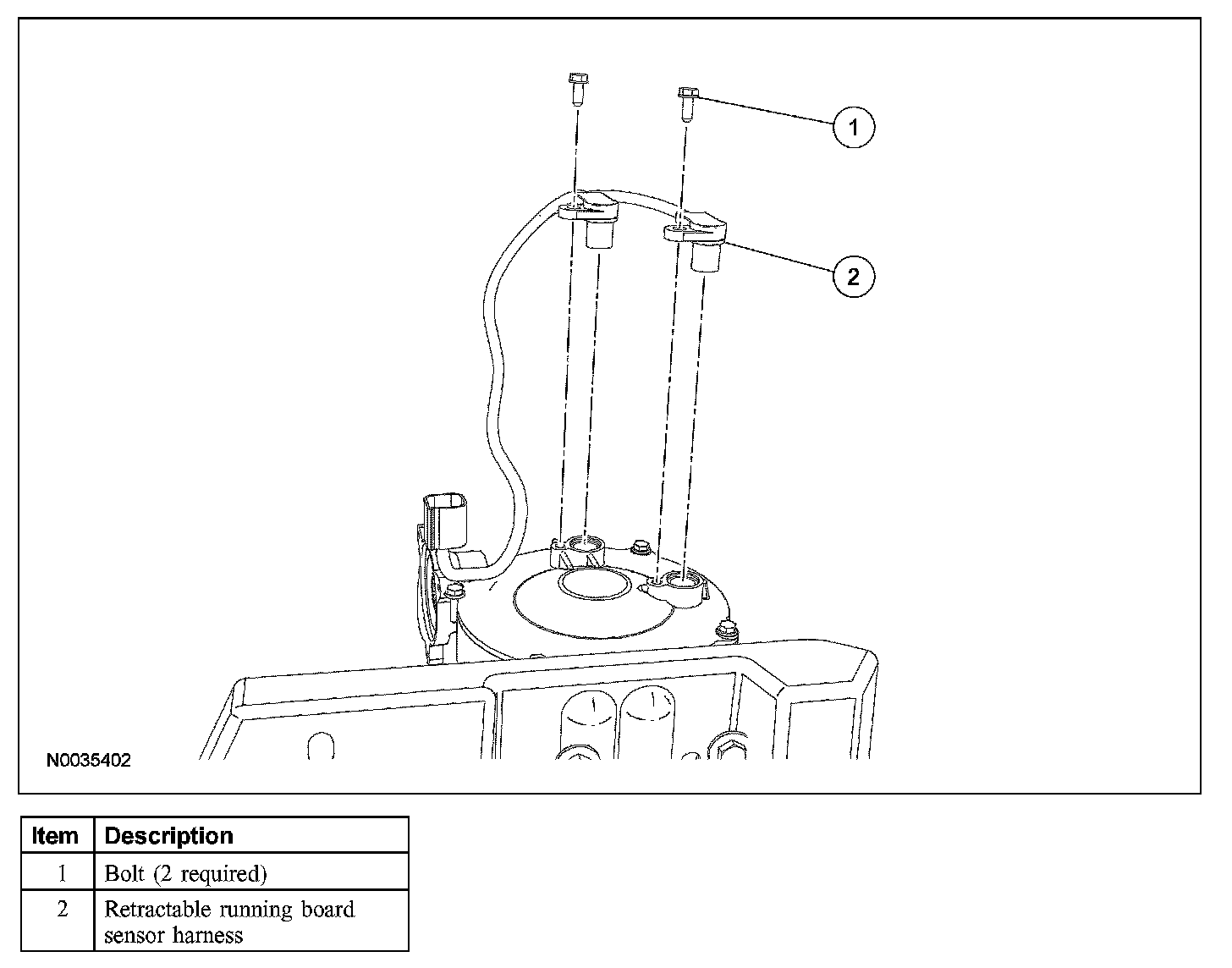

2. Remove the retractable running board sensor wiring harness bolts.

3. Disconnect the electrical connector and remove the retractable running board sensor wiring harness.
4. To install, reverse the removal procedure.
