Body Support - Radiator Support

BODY SUPPORT - RADIATOR SUPPORT

Radiator Support Mount:

Removal and Installation

NOTE: Left side shown, right side similar.

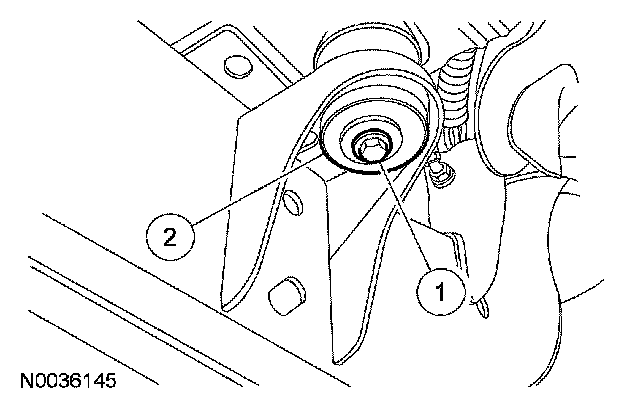

Upper and lower body mount







1. Remove the lower radiator body mount.
1 Remove the lower radiator body mount bolt.
2 Remove the lower radiator body mount.
- To install, tighten to 80 Nm (59 lb-ft).

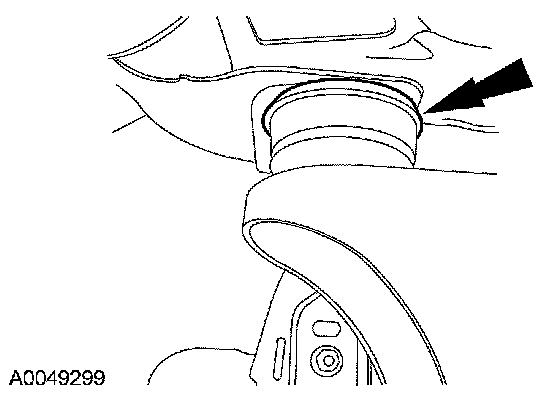

Upper body mount
2. Loosen the remaining body mount bolts.







3. Raise the vehicle body enough to remove the upper body mount.

Upper and lower body mount

4. NOTE:
- No lubricants of any kind are to be used during body mount installation.
- Do not reuse body mount fasteners. New fasteners must be installed for each fastener that has been removed or loosened.

To install, reverse the removal procedure.
