Interior Rear View Mirror

INTERIOR REAR VIEW MIRROR

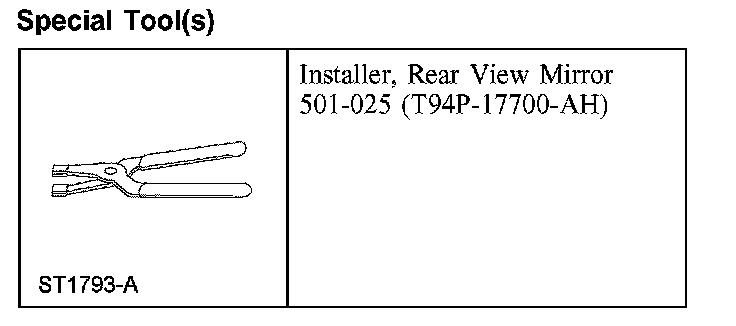

Special Tool(s):






Special Tool(s)







Removal

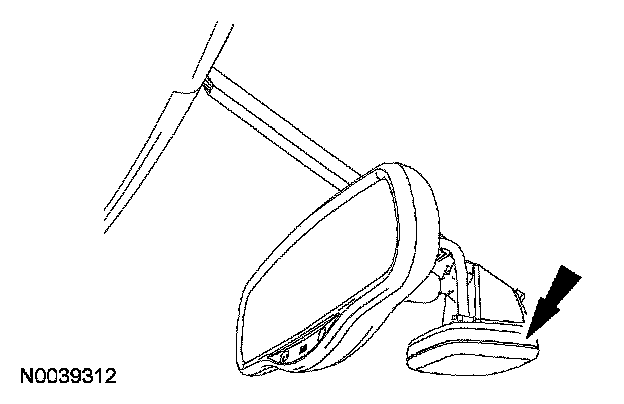

1. If equipped, position the electronic compass sensor aside.

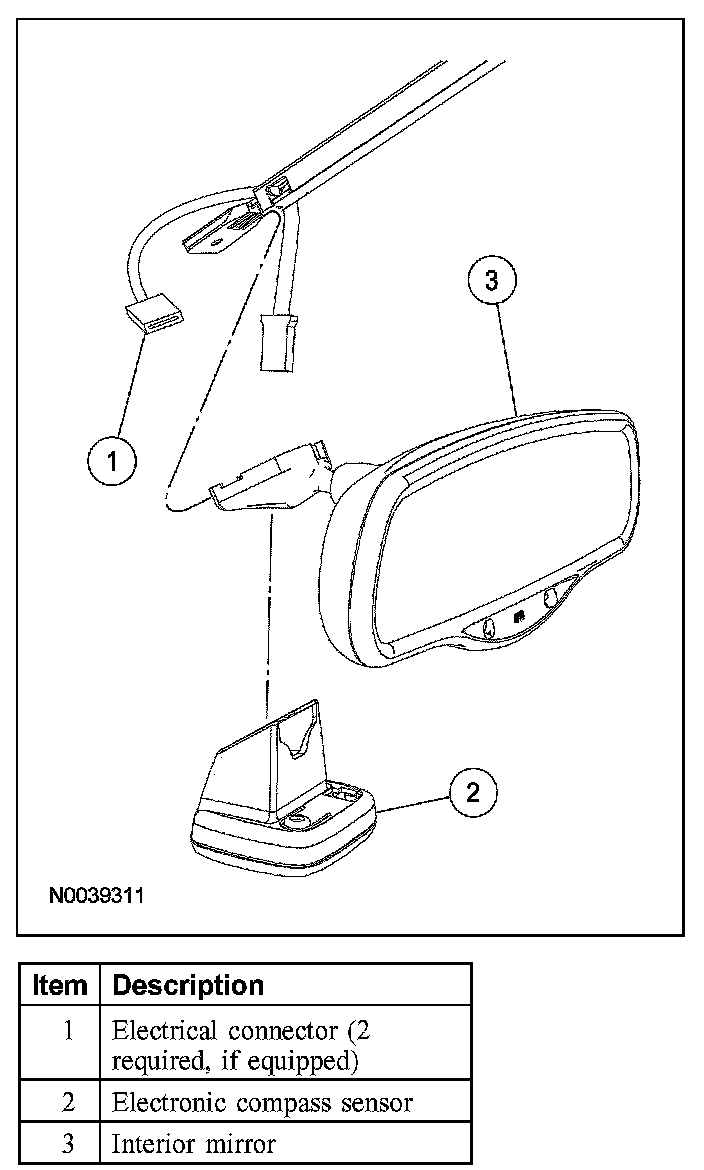

2. If equipped, disconnect the interior auto-dimming mirror electrical connector.







3. CAUTION: Do not use tools or other objects to pry the mount or interior mirror away from the windshield. Use of tools can damage the interior mirror/mount.

Remove the interior mirror.

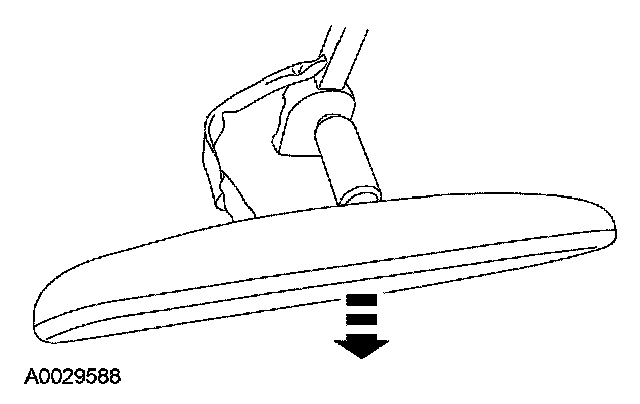

- Position the interior mirror in the full down position. Grasp the interior mirror and rotate, in a downward and toward the windshield direction, until it is released from the interior mirror windshield bracket.

Installation







1. Install the interior mirror.
- Position the interior mirror on the windshield bracket.

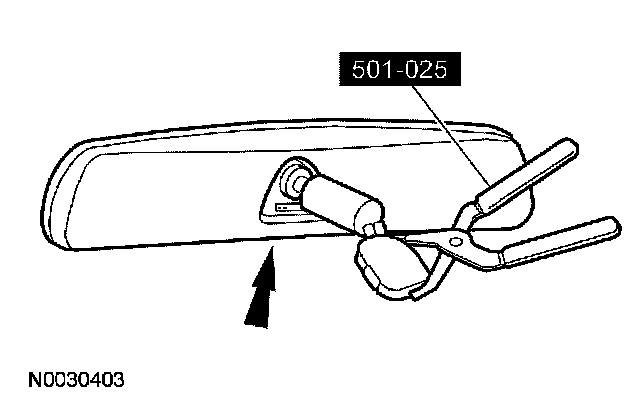

- Using the special tool, press the interior mirror in place until fully seated.

2. If equipped, connect the interior auto-dimming mirror electrical connector.

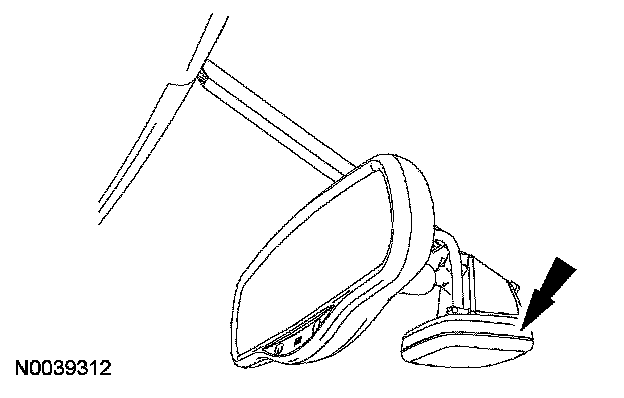

3. If equipped, install the electronic compass sensor.
