Test C: DTC P0579 Or DTC P0581 - Speed Control Switch Circuit Failure

PINPOINT TEST C: DTC P0579 OR DTC P0581 - SPEED CONTROL SWITCH CIRCUIT FAILURE

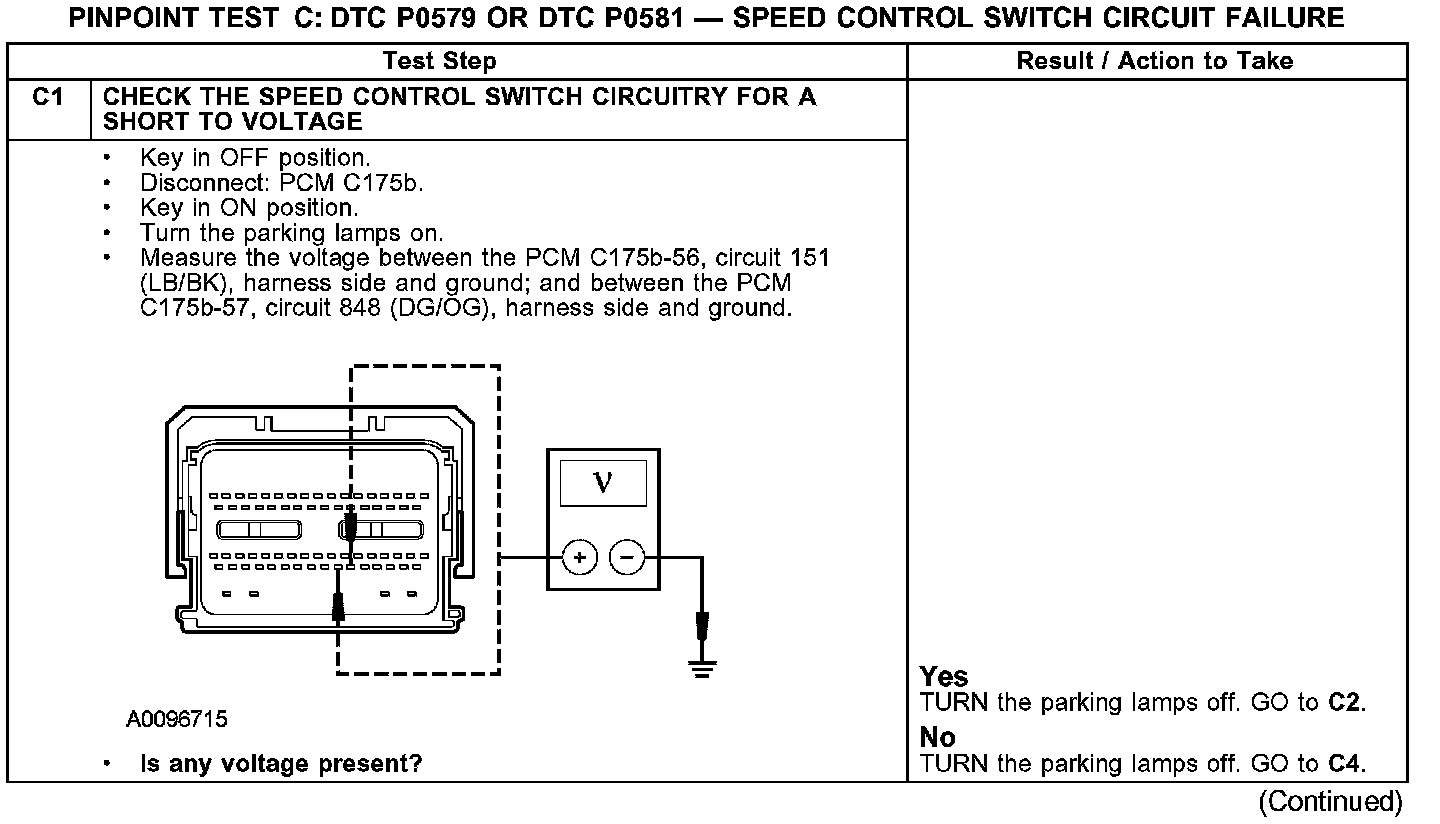

C1:

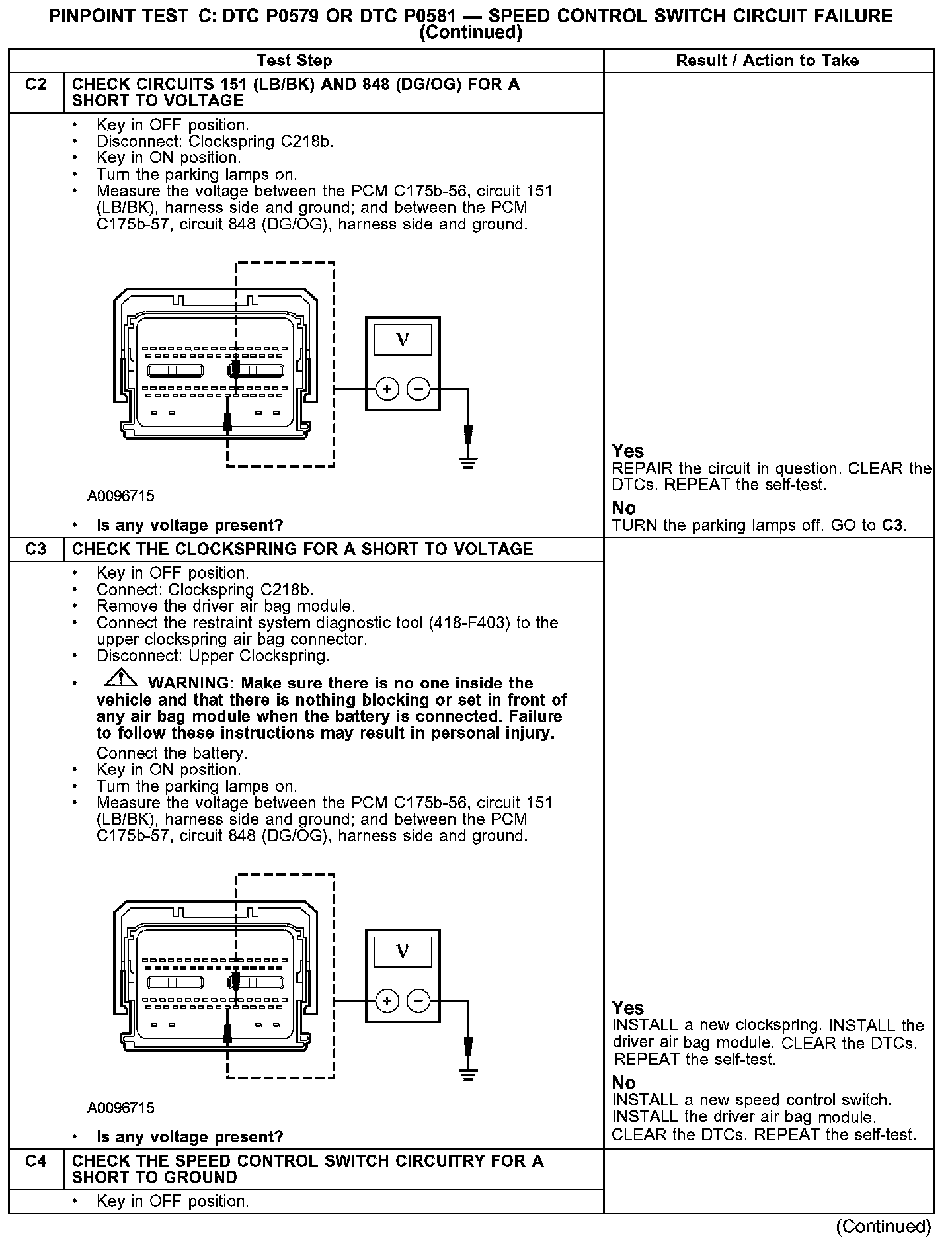

C2-C4:

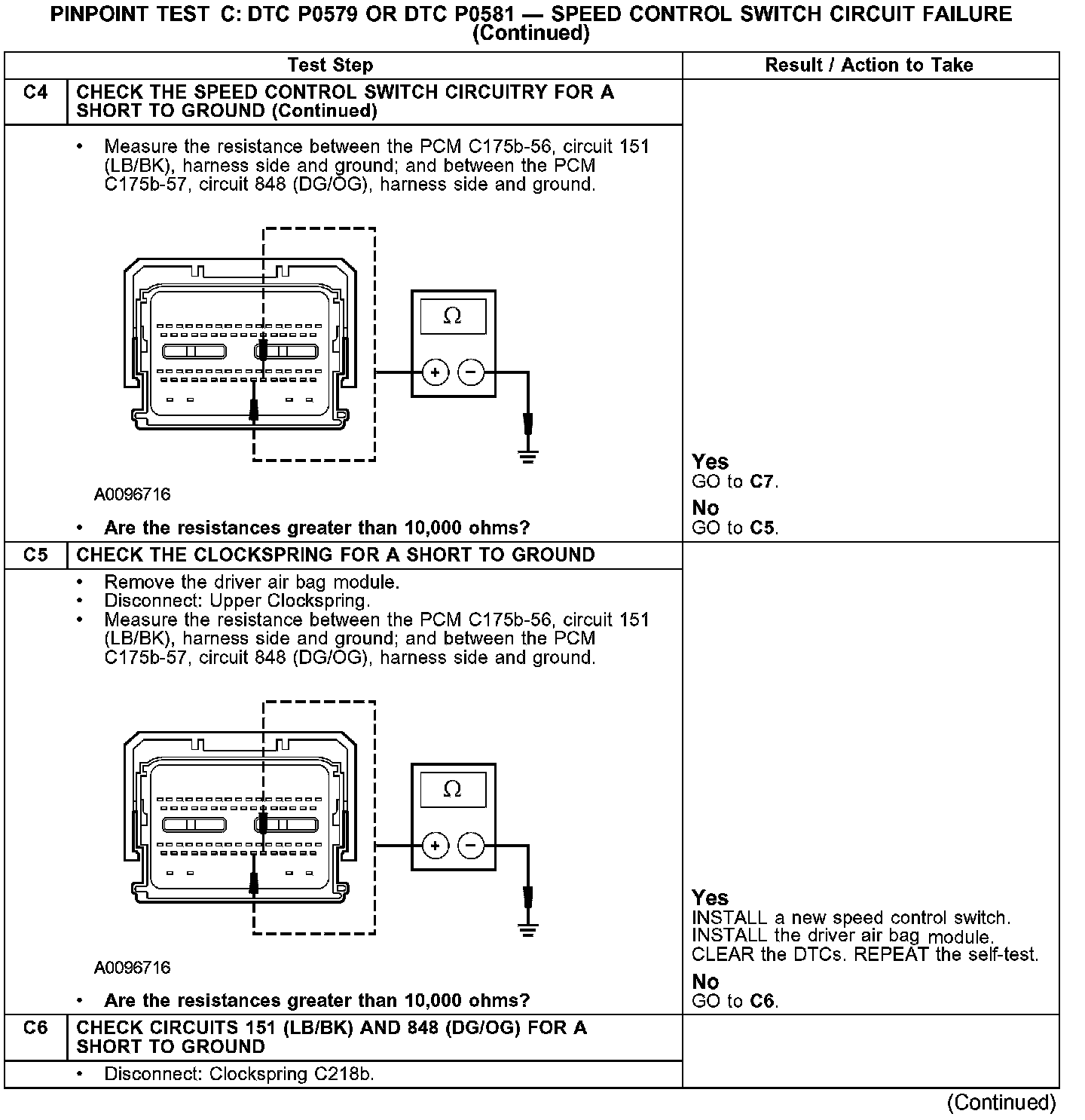

C4-C6:

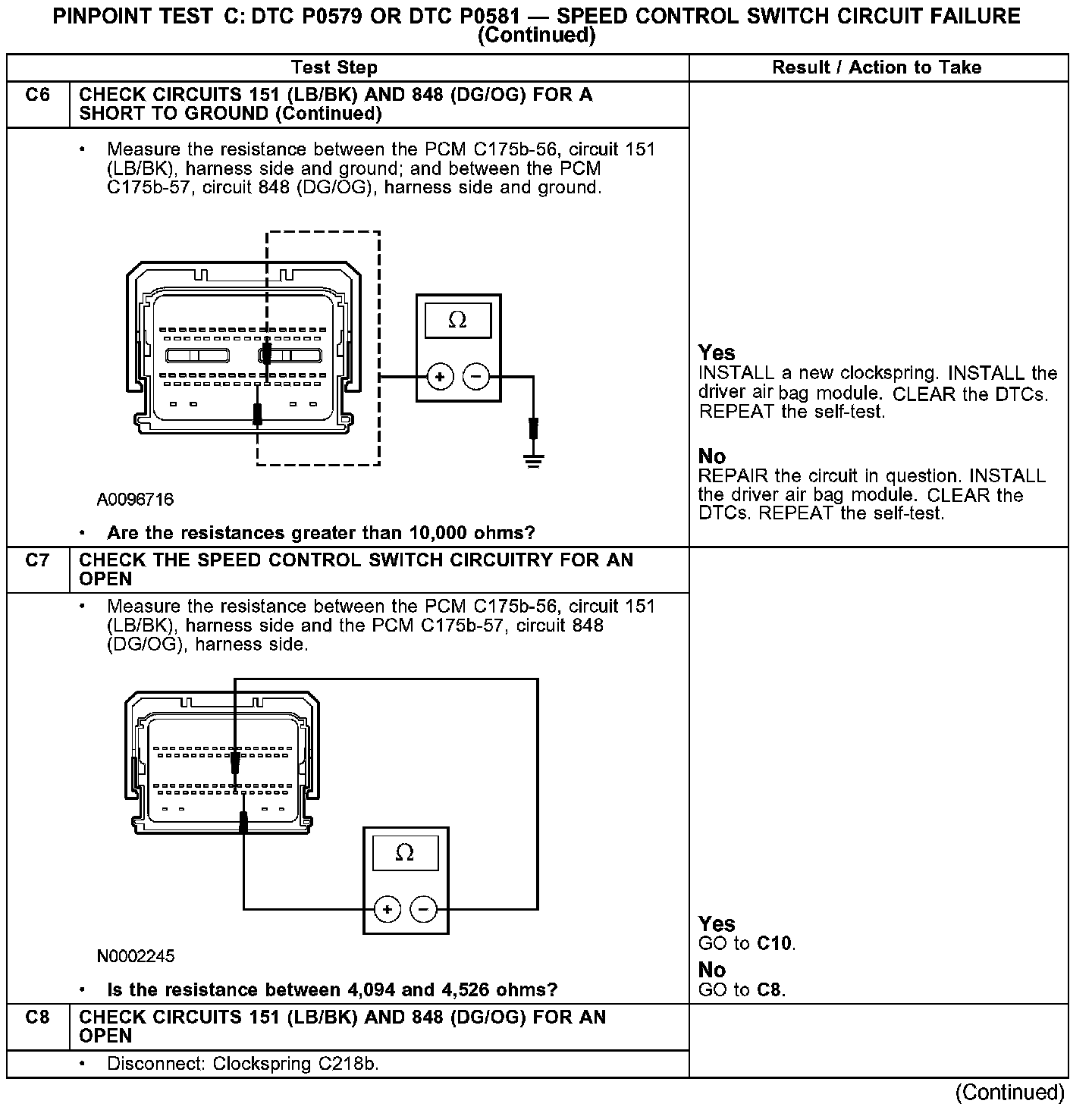

C6-C8:

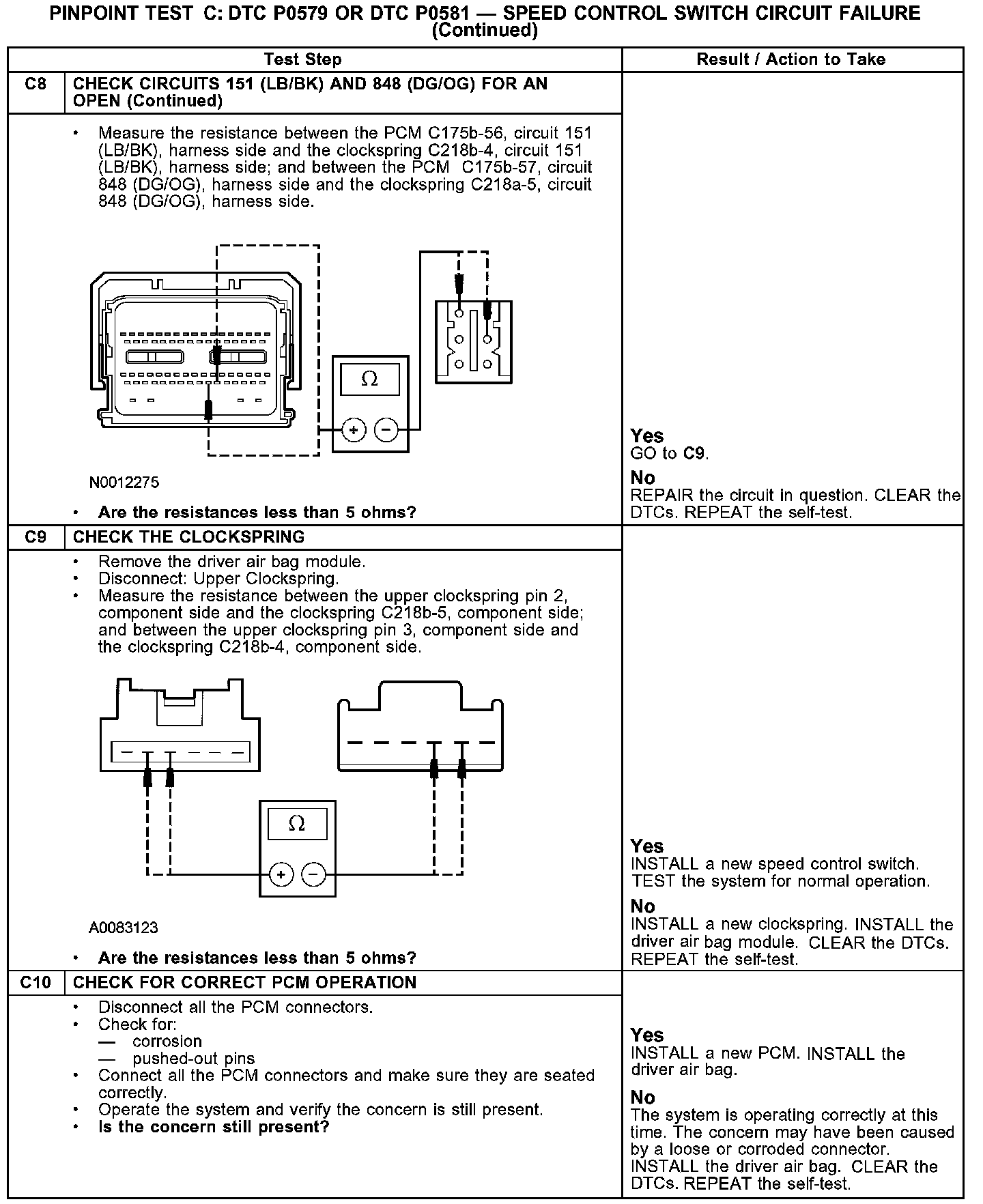

C8-C10:

Normal Operation
The powertrain control module (PCM) sends a signal through circuit 151 (LB/BK) to the speed control switches which passes through the clockspring. The return signal is sent through circuit 848 (DG/OG) and the clockspring.

Possible Causes
- Circuits 151 (LB/BK) open, short to voltage or short to ground
- Circuits 848 (DG/OG) open, short to voltage or short to ground
- Clockspring
- Speed control switch
- PCM
