Rear

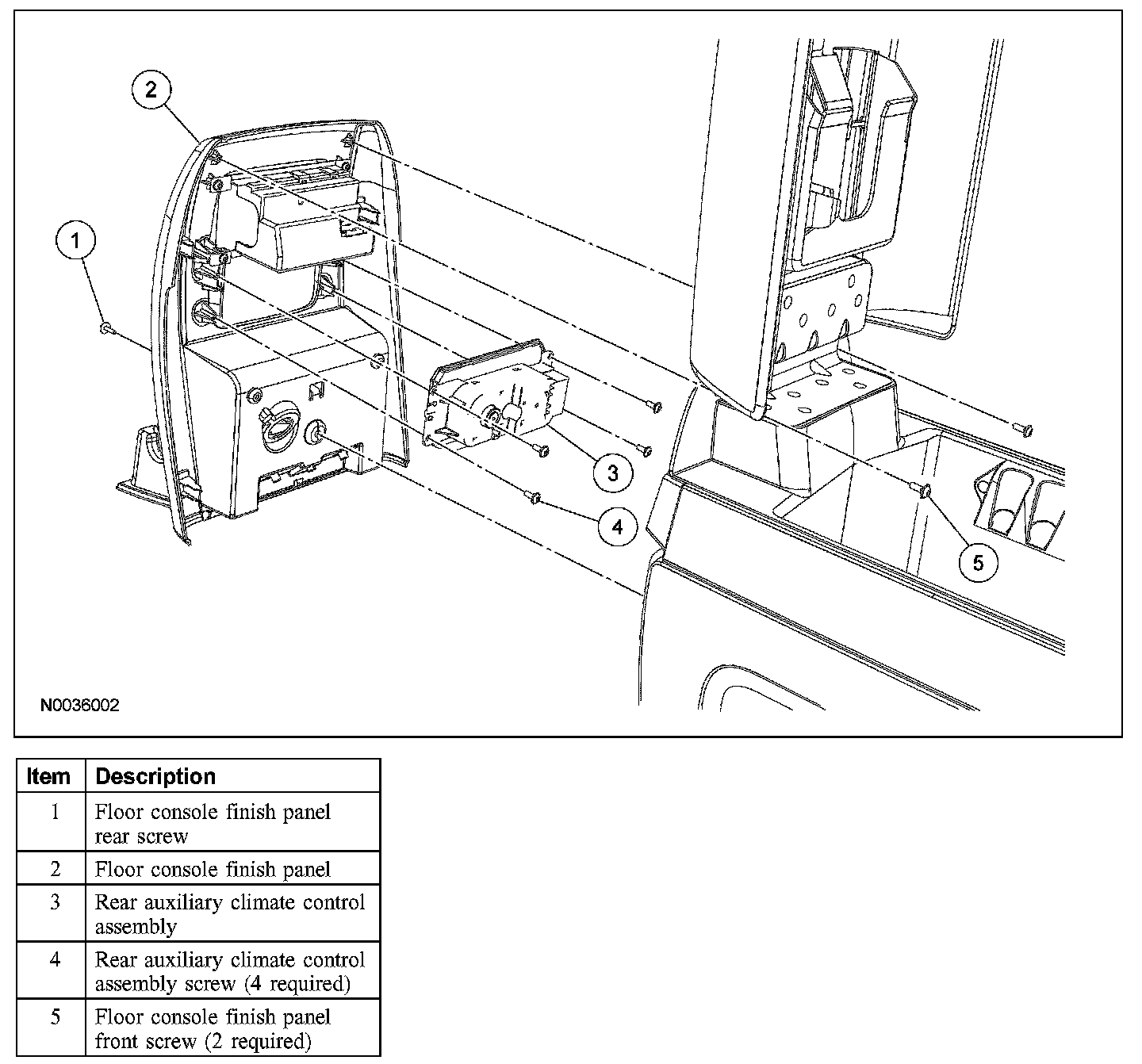

AUXILIARY CLIMATE CONTROL ASSEMBLY - REAR







Removal and Installation

Navigator
1. Open the front floor console cover.
2. Remove the 2 floor console finish panel front screws.
3. Open the rear cup holder and remove the floor console finish panel rear screw.

All vehicles

4. NOTE: Navigator shown, Expedition similar.

Disengage the clips and remove the floor console finish panel.
- Disconnect the electrical connectors.

5. Remove the 4 rear auxiliary climate control assembly screws.
6. Remove the rear auxiliary climate control assembly.
7. To install, reverse the removal procedure.
