Rear Door Window Regulator Motor

REAR DOOR WINDOW REGULATOR MOTOR

Removal and Installation
1. Remove the rear door trim panel.







2. Position the rear door weathershield aside.







3. NOTE: Use a flat-blade screwdriver between the window regulator motor and the window regulator assembly to hold the window regulator assembly drum in place.

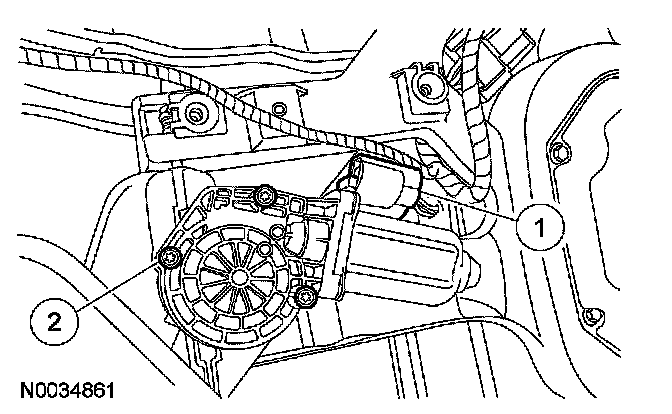

Remove the rear door window regulator motor.
1 Disconnect the electrical connector.
2 Remove the bolts.
- To install, tighten to 7 Nm (62 lb-in).

4. To install, reverse the removal procedure.
- Cycle the door glass to make sure of gear engagement.
