Test J: The Navigation Module Does Not Respond To The Diagnostic Tool

PINPOINT TEST J: THE NAVIGATION MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL


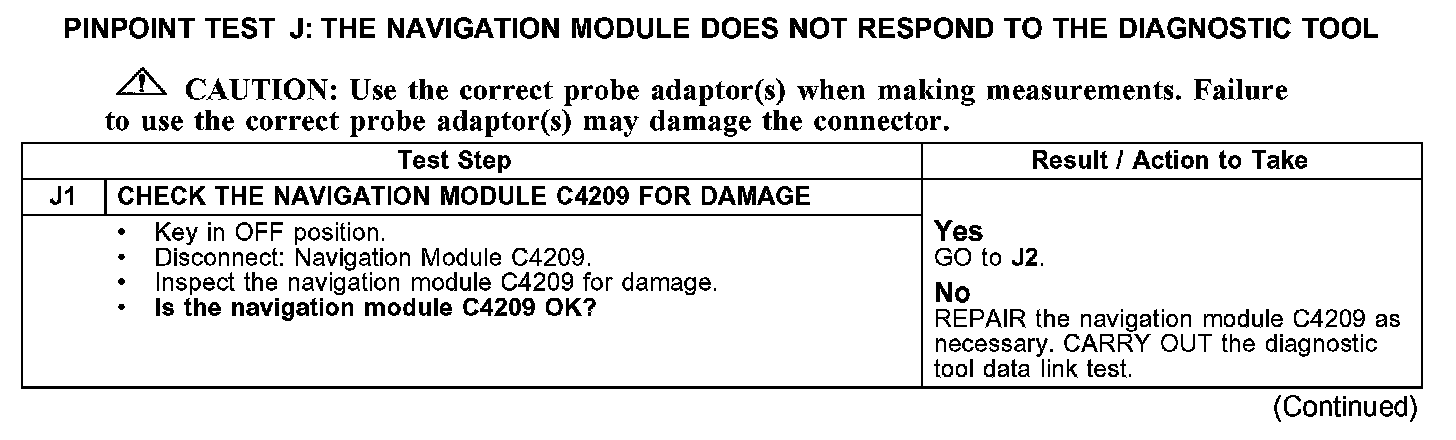

J1:

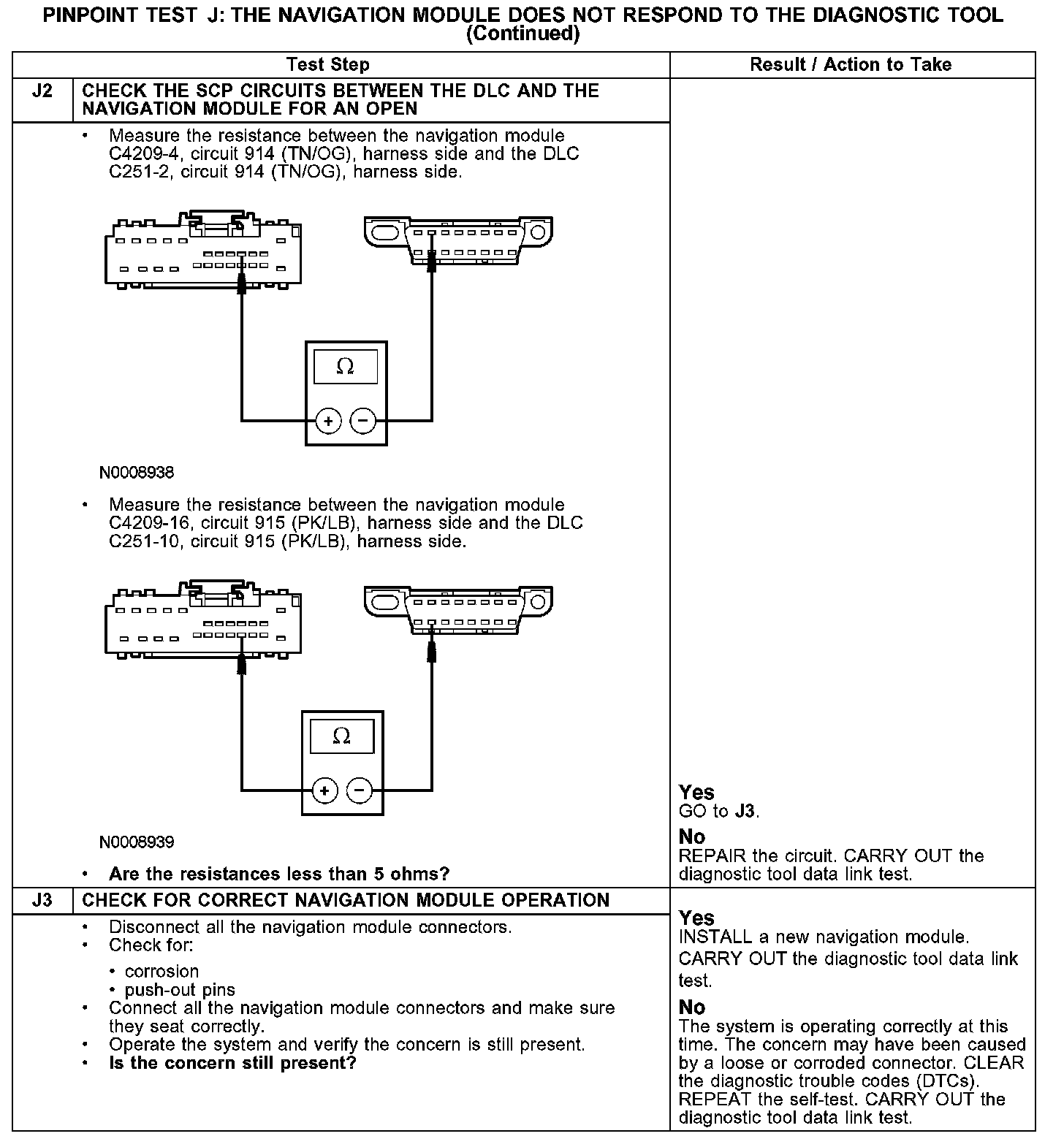

J2-J3:






Normal Operation
The navigation module communicates with the diagnostic tool through the standard corporate protocol (SCP) communications network, circuits 914 (TN/OG) and 915 (PK/LB). Check the SCP circuits between the navigation module C4209 and the data link connector (DLC) C251. The total resistance values must not be more than 5 ohms. If the resistance is more than 5 ohms, there is an open circuit in the SCP network, damage to the DLC C251, or damage to the navigation module C4209.

Possible Causes
- SCP data plus circuit 914 (TN/OG) open
- SCP data minus circuit 915 (PK/LB) open
- navigation module C4209
- navigation module
