Grille: Service and Repair

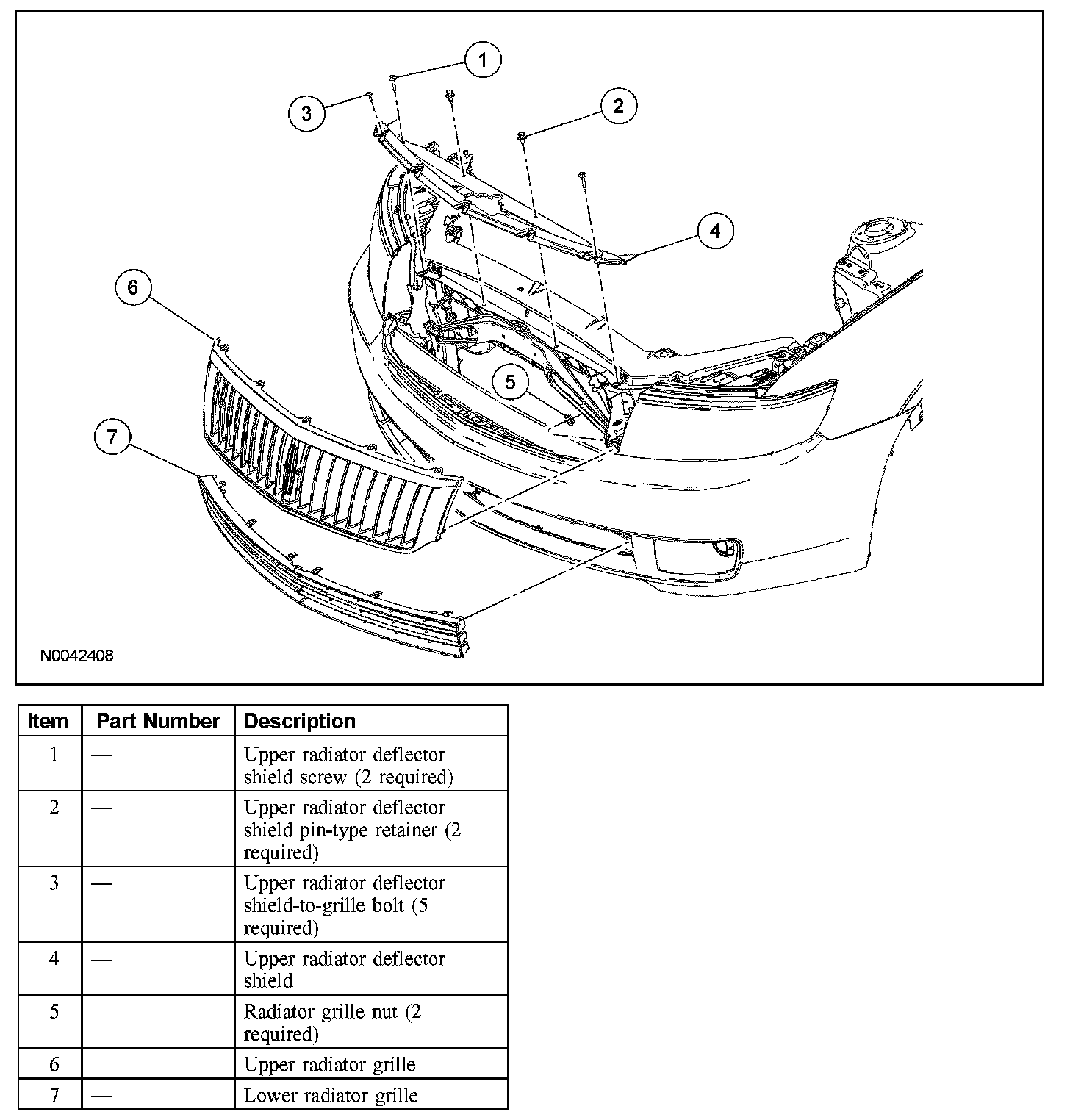

RADIATOR GRILLE







Removal and Installation
1. Remove the 2 screws from the upper radiator deflector shield.
2. Remove the 2 pin-type retainers from the upper radiator deflector shield.
3. Remove the 5 bolts from the top of the upper radiator grille.
4. Remove the upper radiator deflector shield.
5. Remove the 2 upper radiator grille nuts.
6. Remove the upper radiator grille.
7. Remove the lower radiator grille.
- Remove the lower radiator grille from the clips on the bumper cover.
- Remove the lower radiator grille from the bumper cover.

8. To install, reverse the removal procedure.
