Test K: The Remote Keyless Entry (RKE) Transmitter Has Poor Range Performance

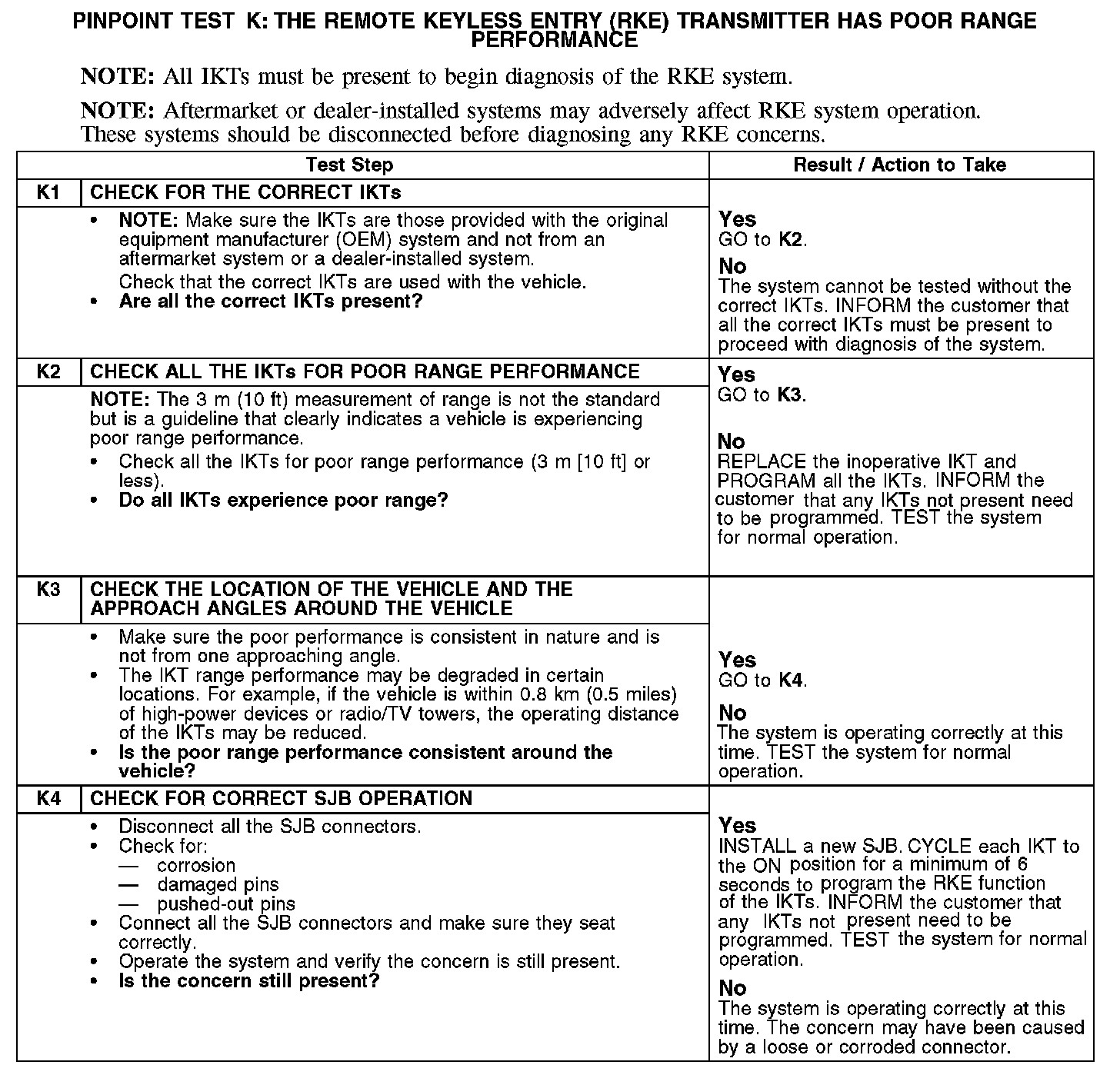

PINPOINT TEST K: THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER HAS POOR RANGE PERFORMANCE


K1-K4:






Normal Operation
The RKE integrated keyhead transmitter (IKT) sends a radio signal to the smart junction box (SJB) based on the user selected IKT button. The SJB then carries out the selected action.

This pinpoint test is intended to diagnose the following:
- IKT
- Aftermarket systems
- High power devices
- TV/radio transmission
- SJB
