Test N: The Liftgate Is Inoperative Using The Remote Keyless Entry (RKE) Transmitter

PINPOINT TEST N: THE LIFTGATE IS INOPERATIVE USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER


N1-N3:

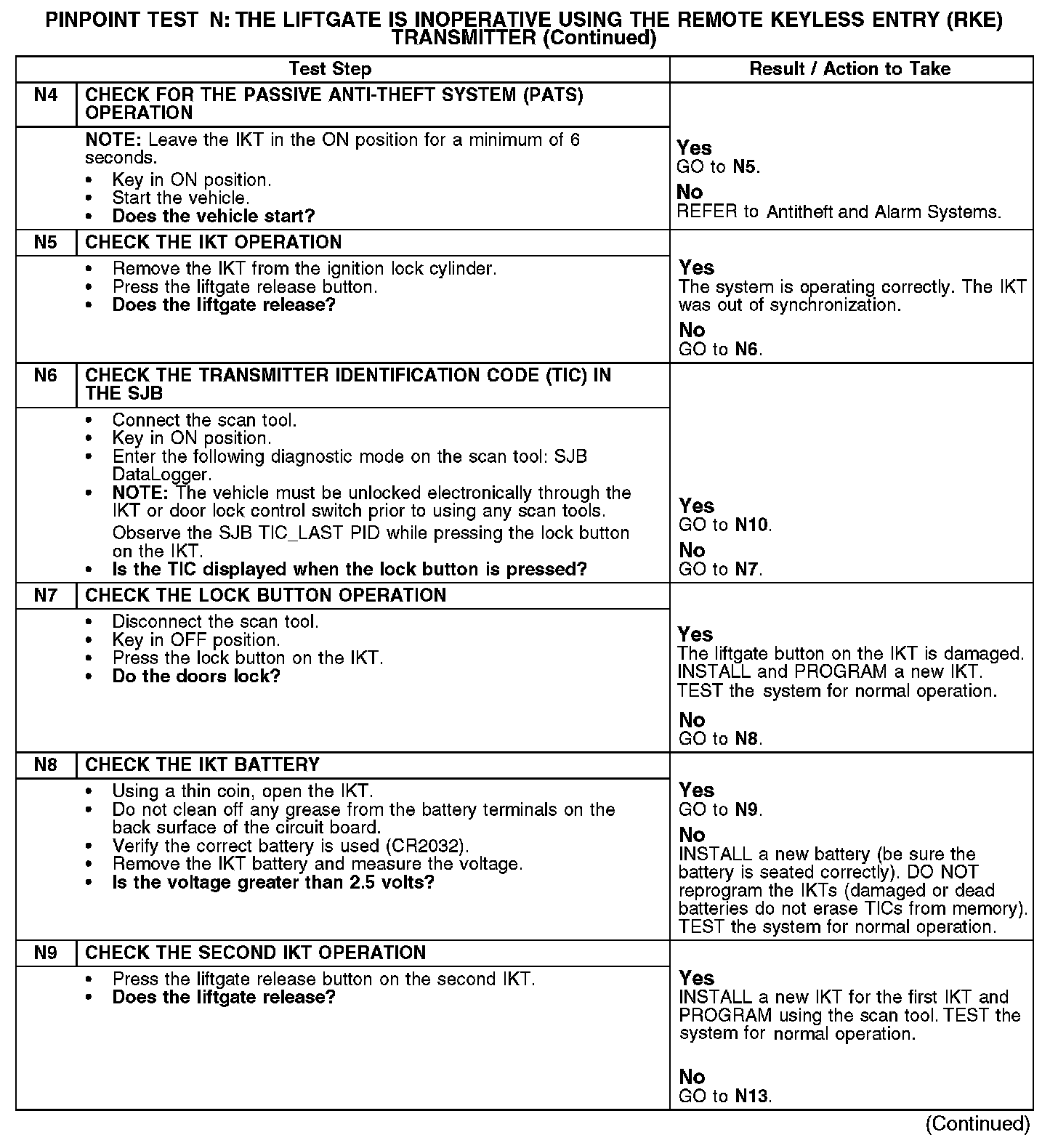

N4-N9:

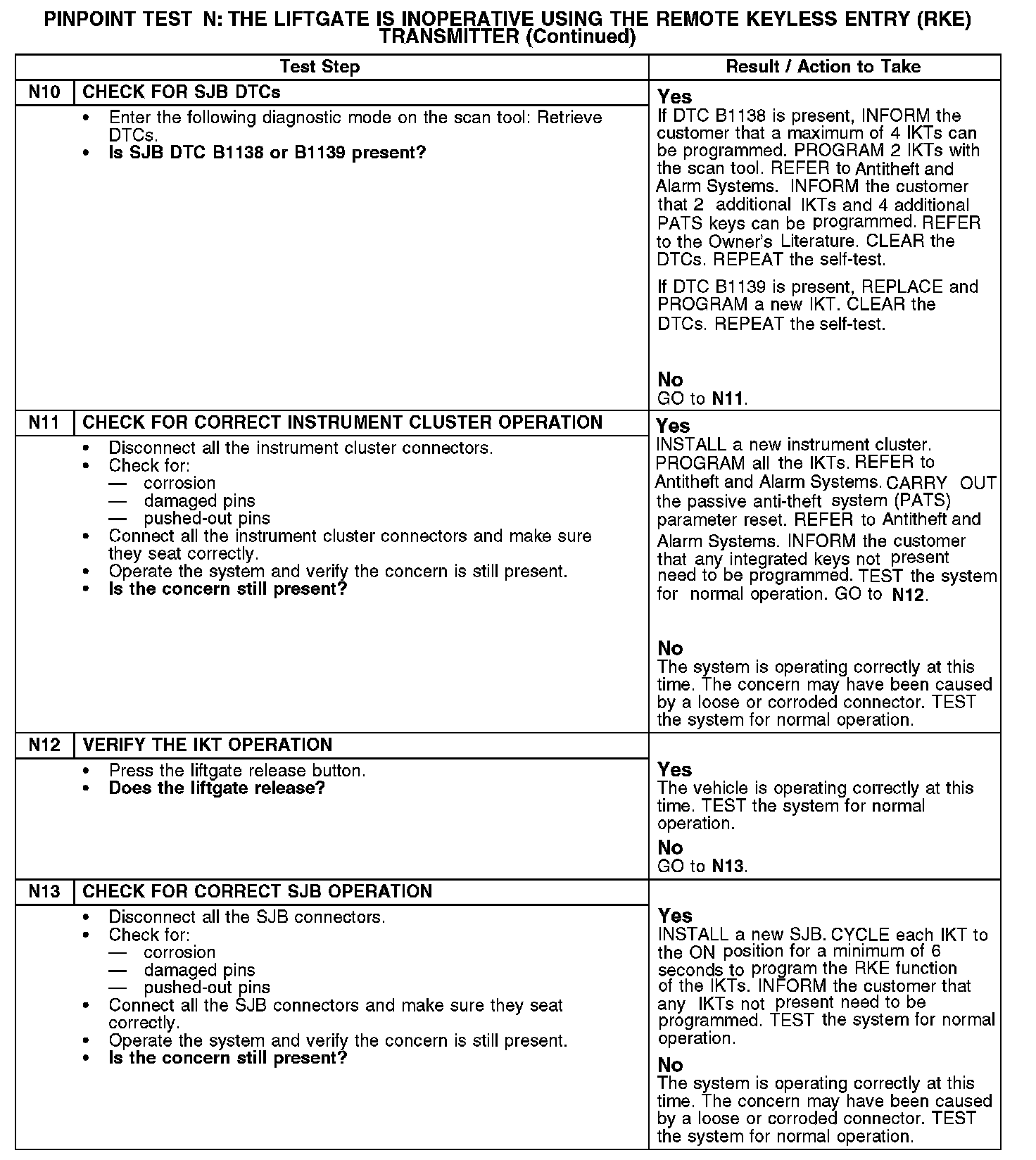

N10-N13:






Normal Operation
The liftgate release function is accomplished by the smart junction box (SJB) receiving a command message from the remote keyless entry (RKE) integrated keyhead transmitter (IKT) through the SJB. The SJB processes the command and sends a signal activating the liftgate release.

This pinpoint test is intended to diagnose the following:
- IKT battery
- IKT programming
- IKT
- Aftermarket systems
- Instrument cluster
- SJB
