Door Latch Remote Control - SuperCab

DOOR LATCH REMOTE CONTROL - SUPERCAB

Removal and Installation
1. Remove the rear door trim panel.
2. Position the watershield aside.
3. Remove the 3 upper door latch bolts.
- To install, tighten to 12 Nm (9 lb-ft).

4. Remove the 3 latch remote control assembly bolts.
- To install, tighten to 12 Nm (9 lb-ft).

5. Remove the 3 lower door latch bolts.
- To install, tighten to 12 Nm (9 lb-ft).

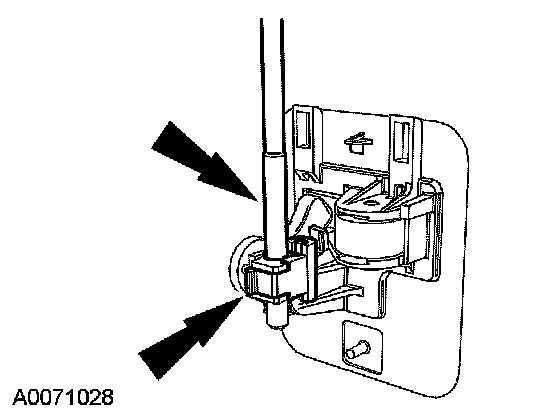

6. Release the actuating rod from the rear door interlock.
7. Remove the latch remote control assembly.
8. To install, reverse the removal procedure.
- Lubricate the upper and lower rear door latches after installation.
