Auxiliary Input / Output Jack: Service and Repair

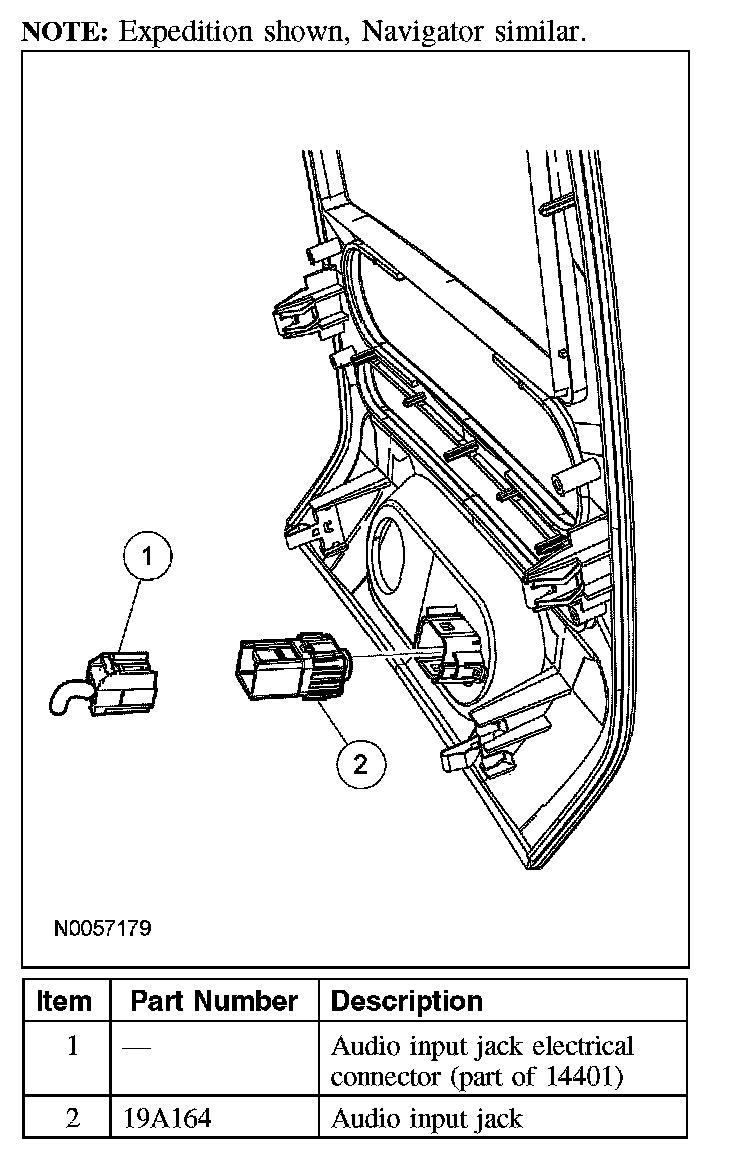

AUDIO INPUT JACKRemoval and InstallationExpedition 1.
Remove the instrument panel center finish panel.
Navigator 2.
Remove the front floor console center finish panel.
All vehicles 3.
Release the tabs and remove the audio input jack.
-
Disconnect the electrical connector.
4.
To install, reverse the removal procedure.
