Headlamp Switch: Service and Repair

HEADLAMP SWITCH

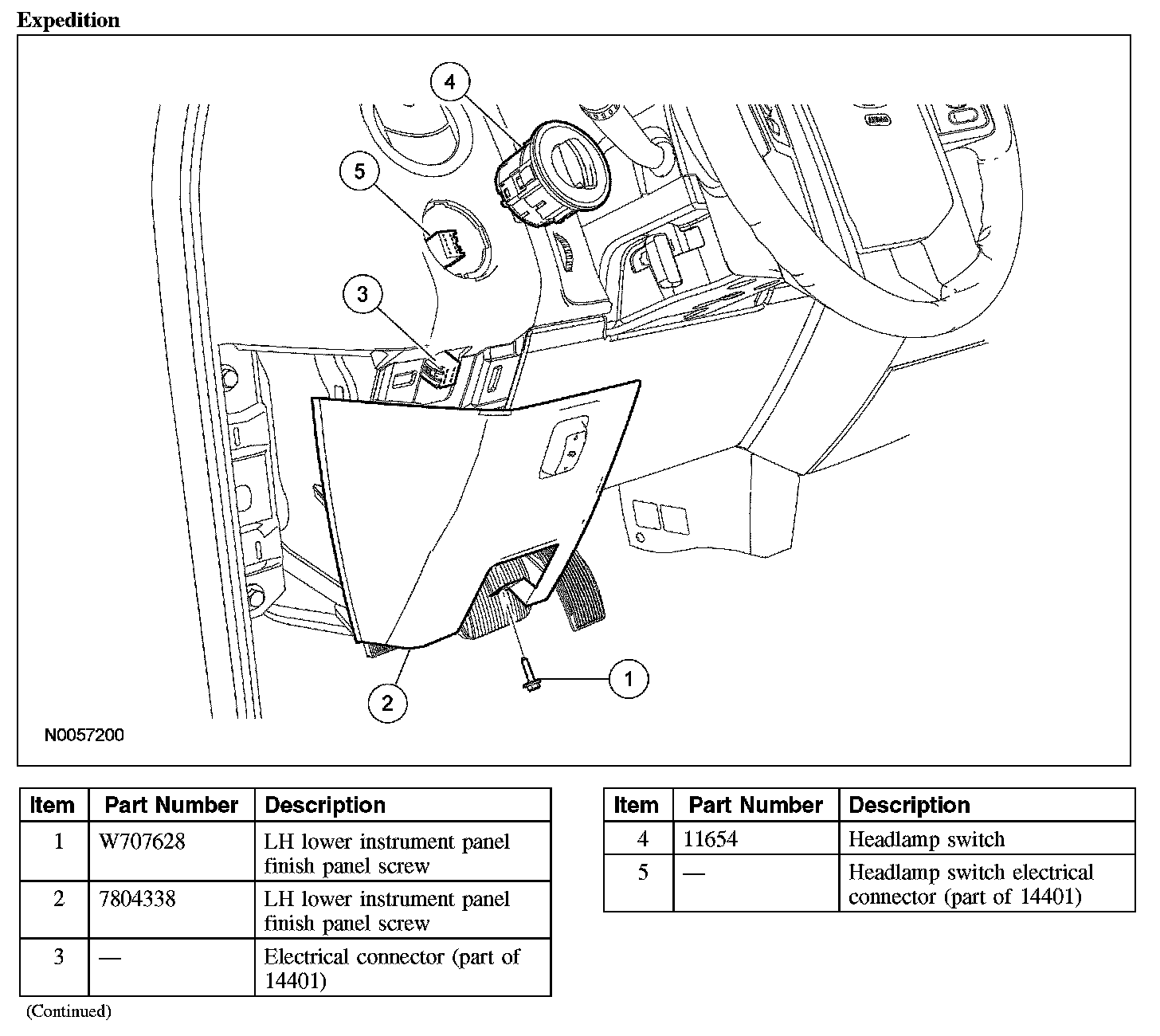

Expedition:

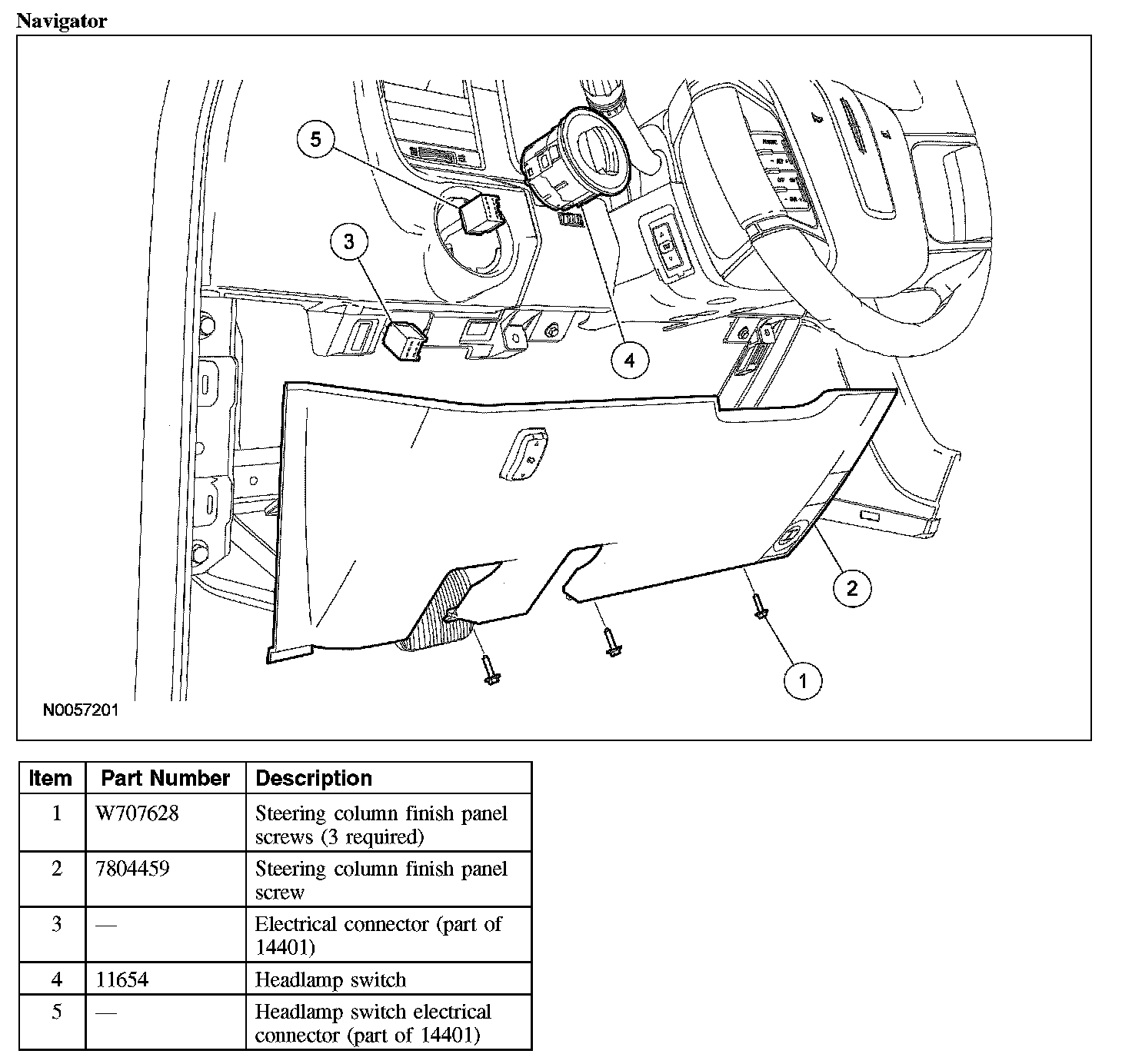

Navigator:






Removal and Installation

Expedition
1. Remove the screw and the LH lower instrument panel finish panel.
- Disconnect the electrical connector.

Navigator
2. Remove the 3 screws and the steering column finish panel.
- Disconnect the electrical connectors.

All vehicles

3. NOTE: The headlamp switch is removed by releasing the tabs and pushing from behind.

Remove the headlamp switch.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
