Steering Wheel: Service and Repair

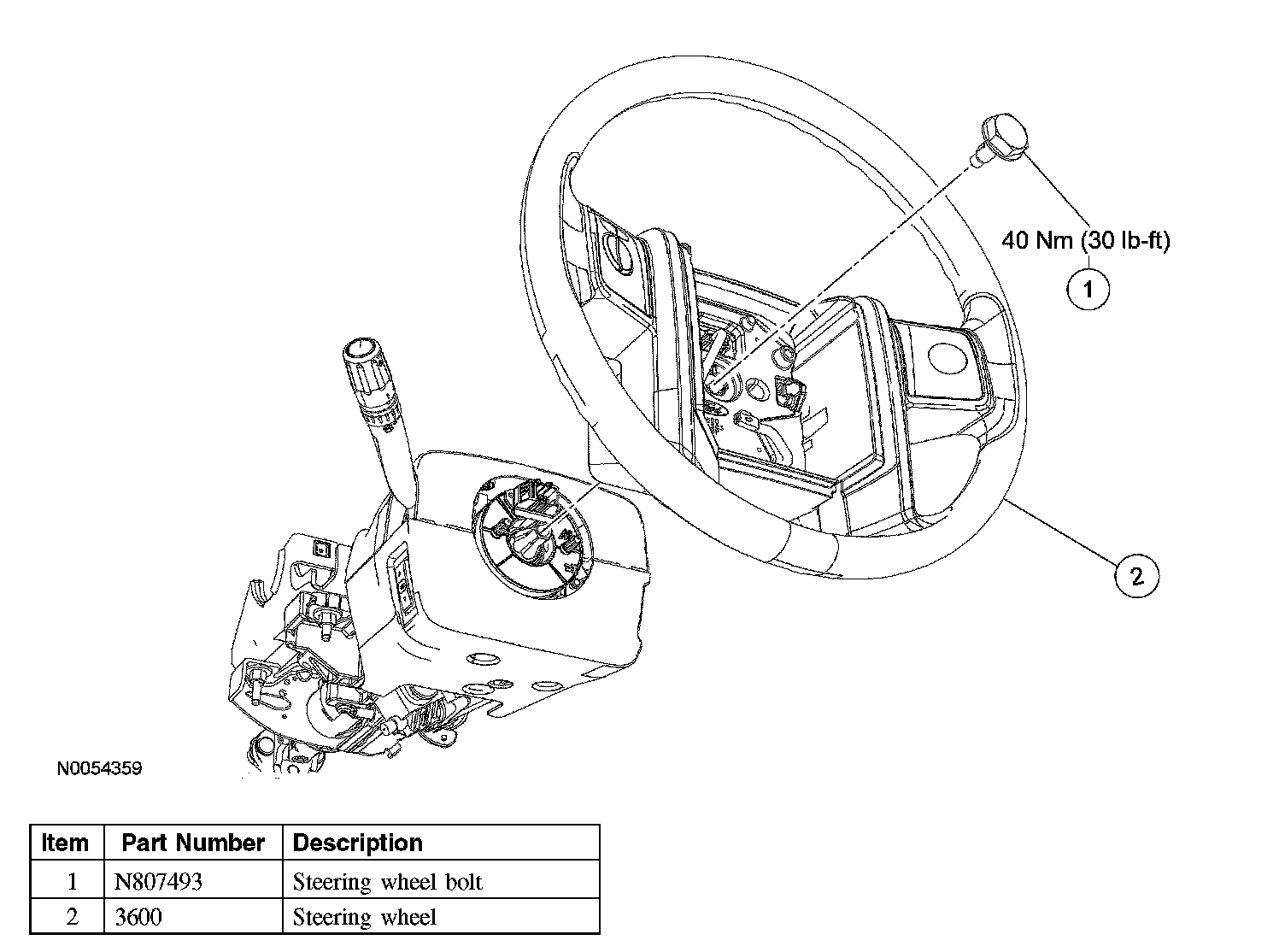

Steering Wheel

Removal and Installation
1. Remove the driver air bag module.
2. Turn the steering wheel to the straight-ahead position.
3. Remove and discard the steering wheel bolt.
^ To install, tighten to 40 Nm (30 lb-ft).
4. Remove the steering wheel while routing the wires from the clockspring through the steering wheel.

5. NOTE: A new steering wheel bolt must be installed.

To install, reverse the removal procedure.
