Transmission Cooling

Transmission Cooling

The transmission fluid cooling system consists of:
^ fluid cooler inlet and outlet tubes.
^ an in-tank fluid cooler inlet tube.
^ a non-repairable in-tank transmission fluid cooler.
^ an auxiliary fluid cooler inlet tube.
^ an auxiliary transmission fluid cooler.
^ an auxiliary fluid cooler return tube.

The transmission fluid flows from the transmission to the in-tank transmission fluid cooler, to the auxiliary transmission fluid cooler and returns to the transmission.

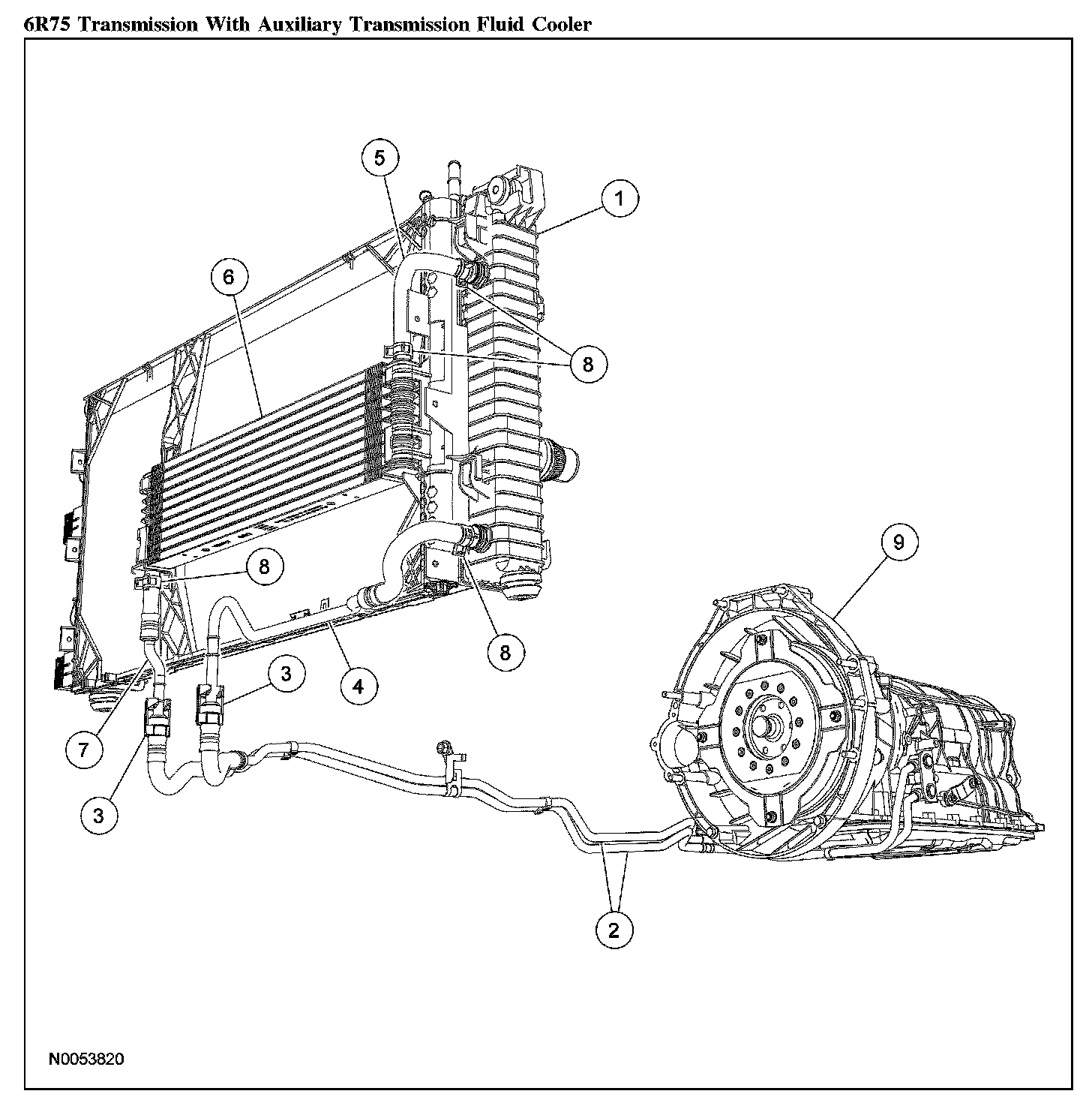

6R75 Transmission With Auxiliary Transmission Fluid Cooler:

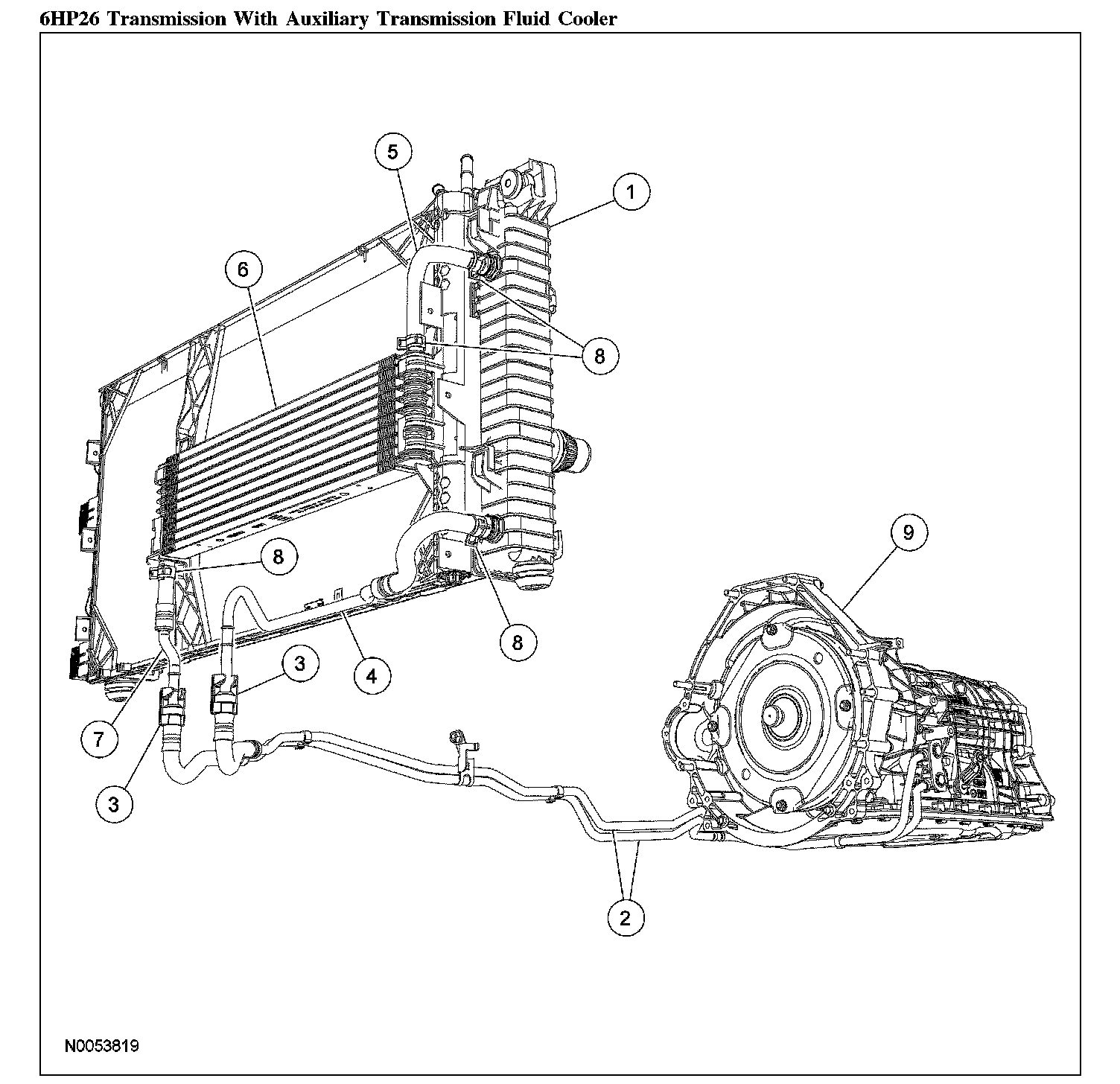

6HP26 Transmission With Auxiliary Transmission Fluid Cooler:
