Selector Lever - Column Shift

Selector Lever - Column Shift

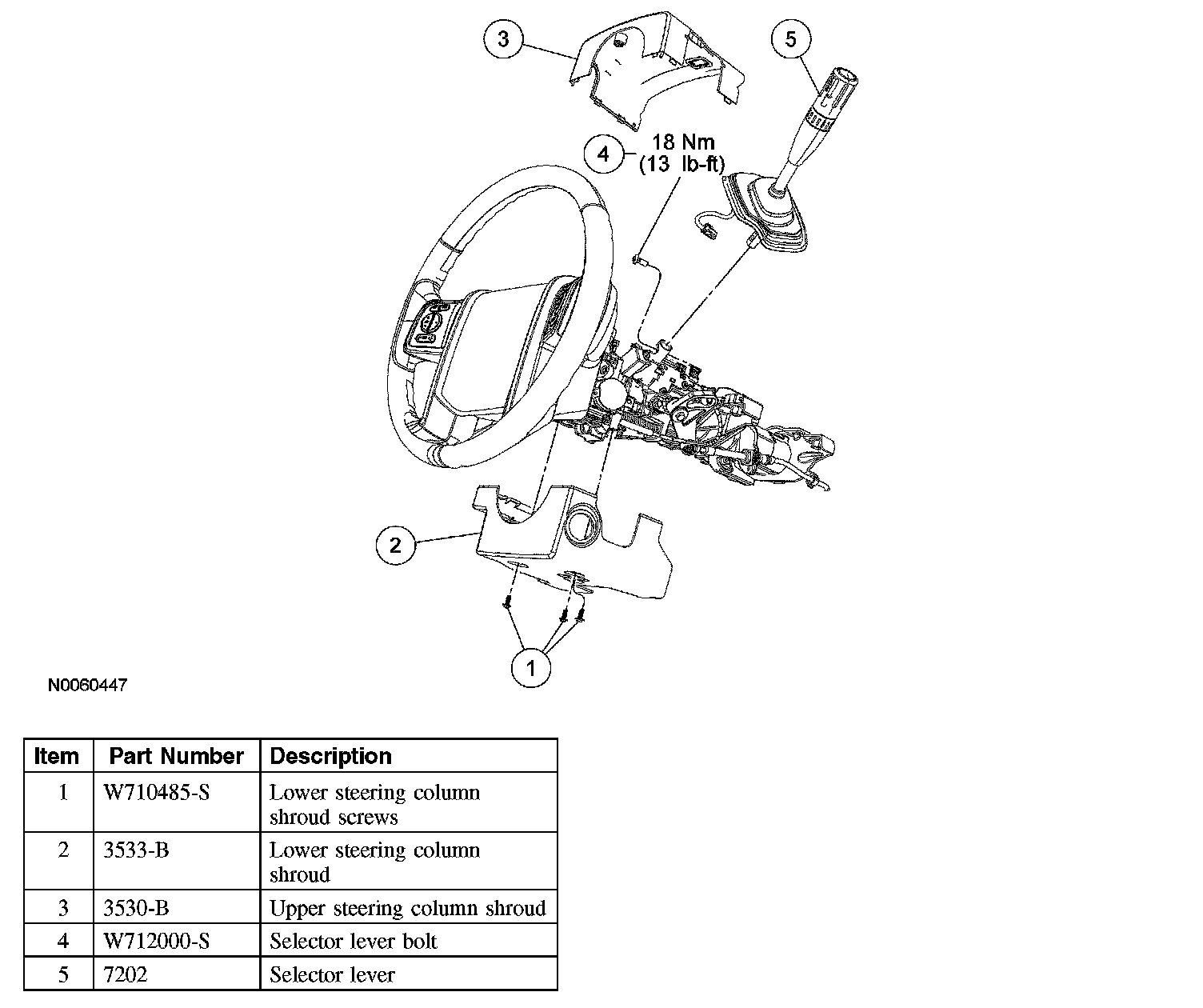

Removal and Installation
1. Remove the lower steering column shroud.
1 Remove the screws and the lower steering column shroud.

2. Remove the upper steering column shroud.

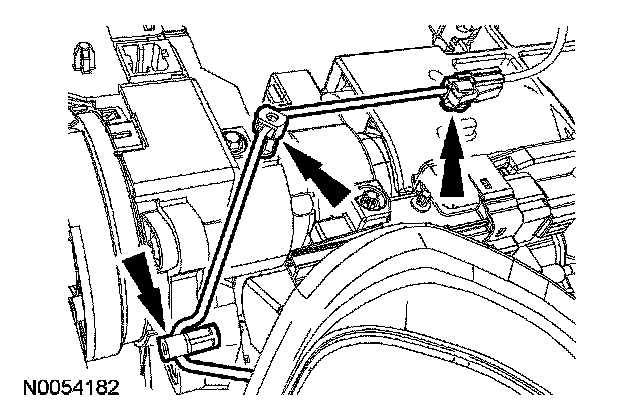

3. Disconnect the electrical connector and the harness from the retaining clips.

4. Remove the selector lever bolt.
^ To install, tighten to 18 Nm (13 lb-ft).

5. Remove the selector lever.

6. To install, reverse the removal procedure.
