Test E: A Single Power Window Is Inoperative - RF, Navigator

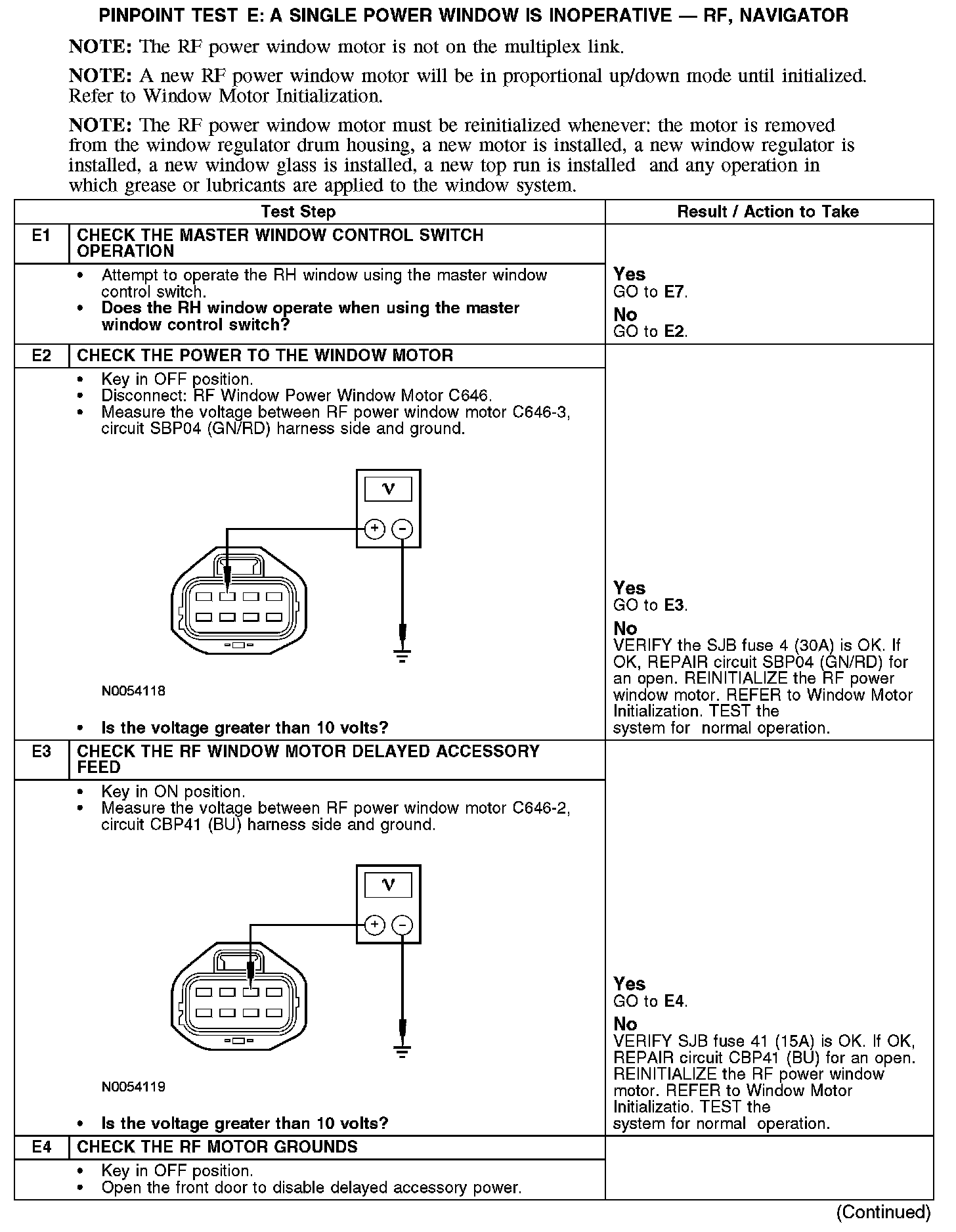

PINPOINT TEST E: A SINGLE POWER WINDOW IS INOPERATIVE-RF, NAVIGATOR

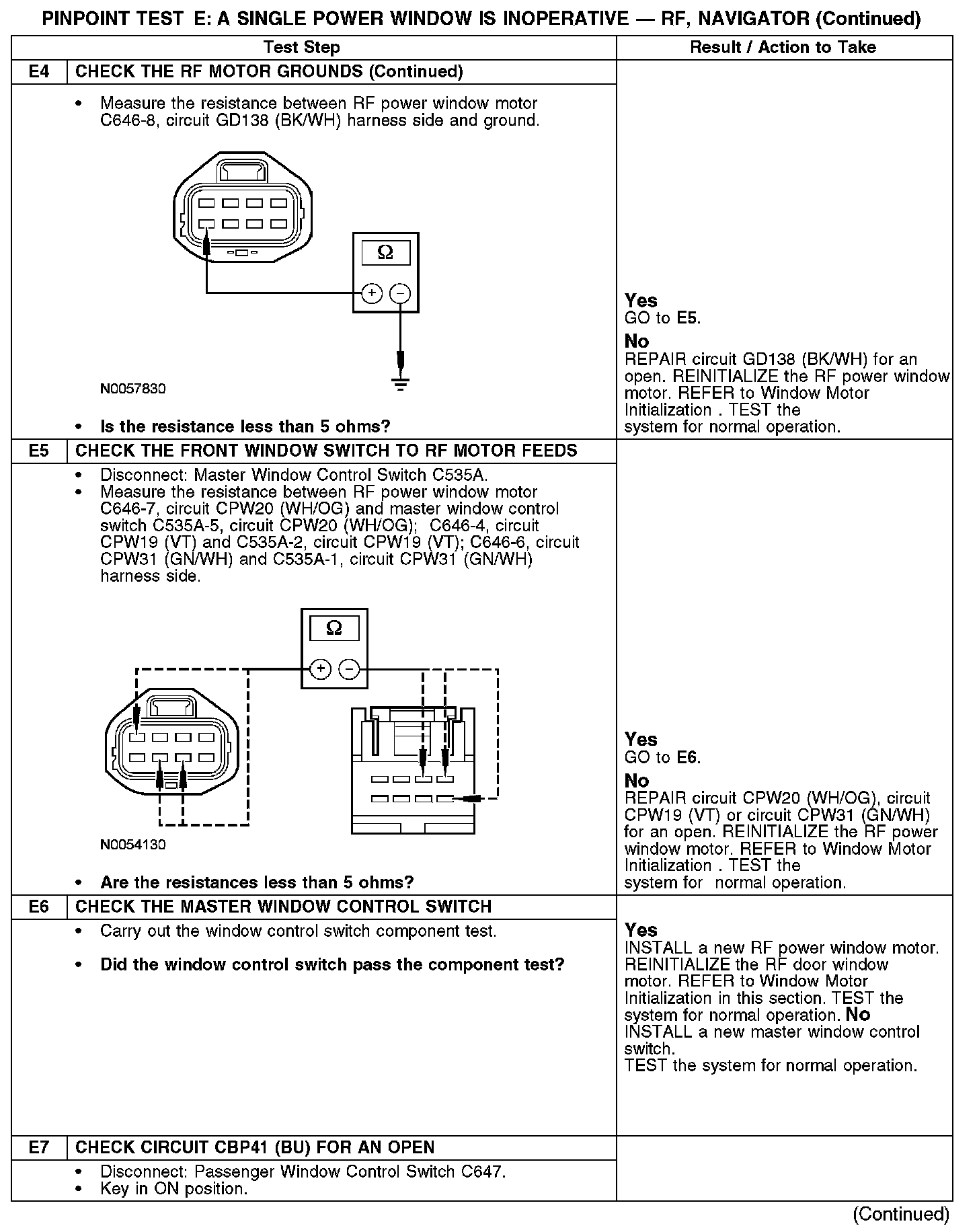

E1-E4:






E4-E7:

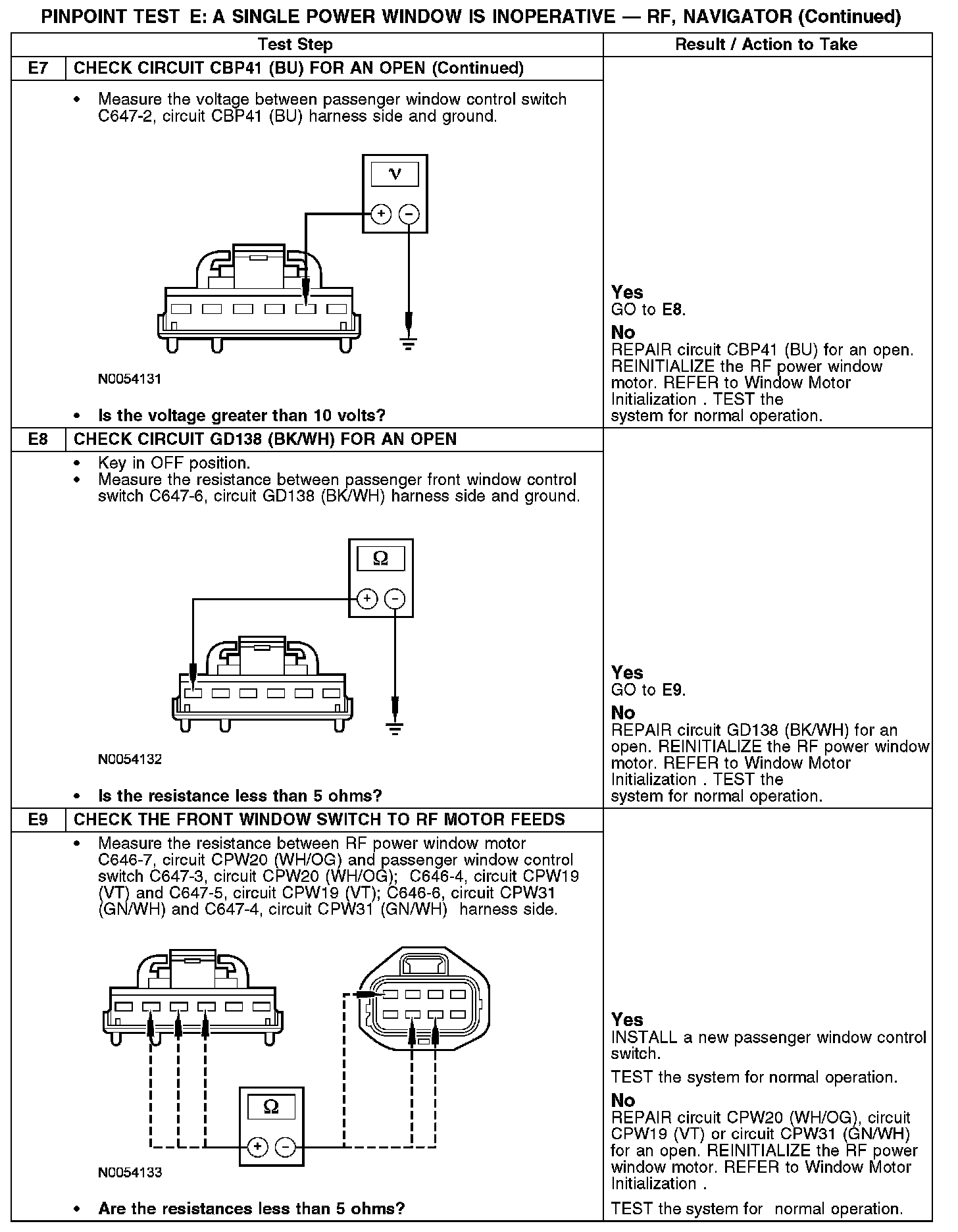

E7-E9:






Normal Operation
Under normal operation, the RF power window motor microprocessor receives power at all times through circuit SBP04 (GN/RD) and from the accessory delay relay through circuit CBP41 (BU). Ground is provided at all times through circuit GD138 (BK/WH). The master window control switch or passenger window control switch provides a voltage input to the power window motor microprocessor through circuit CPW19 (VT) to operate the RF window down, and voltage input through circuit CPW20 (WH/OG) to operate the RF window up.

Possible Causes
- Fuse(s)
- Open in circuit SBP04 (GN/RD), CPB41 (BU), CPW20 (WH/OG), CPW19 (VT), CPW31 (GN/WH) or GD138 (BK/WH)
- Window control switch
- Front door window regulator motor
