Leak Detection Valve: Service and Repair

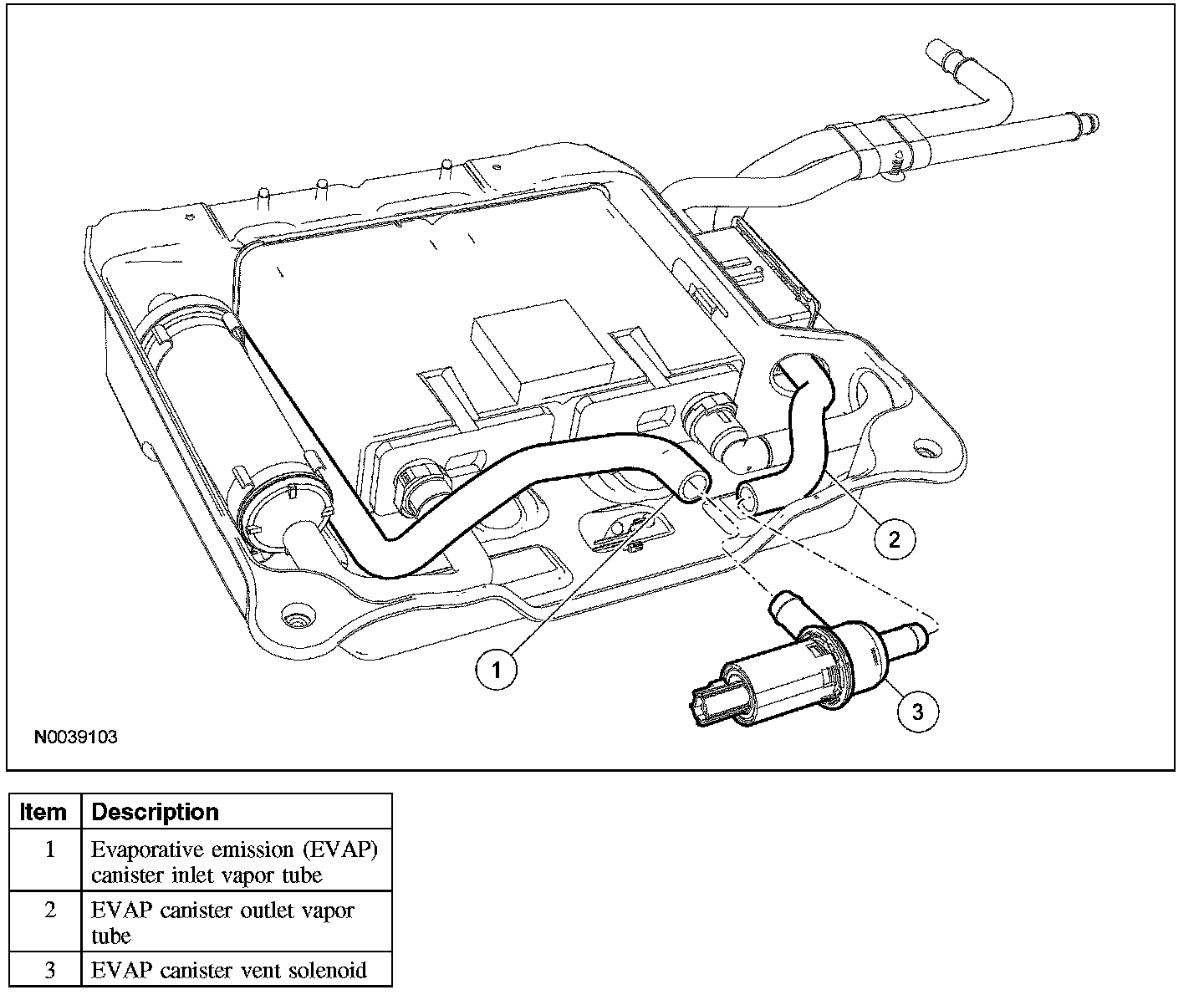

EVAPORATIVE EMISSION CANISTER VENT SOLENOID

Removal and Installation
1. Remove the evaporative emission (EVAP) canister assembly.
2. Disconnect the EVAP canister vent solenoid inlet and outlet vent hoses.
3. Remove the EVAP canister vent solenoid.
4. To install, reverse the removal procedure.
- Carry out the Leak Test. Testing and Inspection
- Carry out the Evaporative Emission Repair Verification Drive Cycle.
