Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER PURGE VALVE







Removal and Installation

WARNING:
- When working on or near the evaporative emission (EVAP) system, disconnect the battery ground cable from the battery. The EVAP system contains fuel vapor and condensed fuel vapor, so an electrical spark may cause a fire or explosion. Failure to follow this instruction may result in serious personal injury.
- Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

1. Disconnect the battery ground cable.

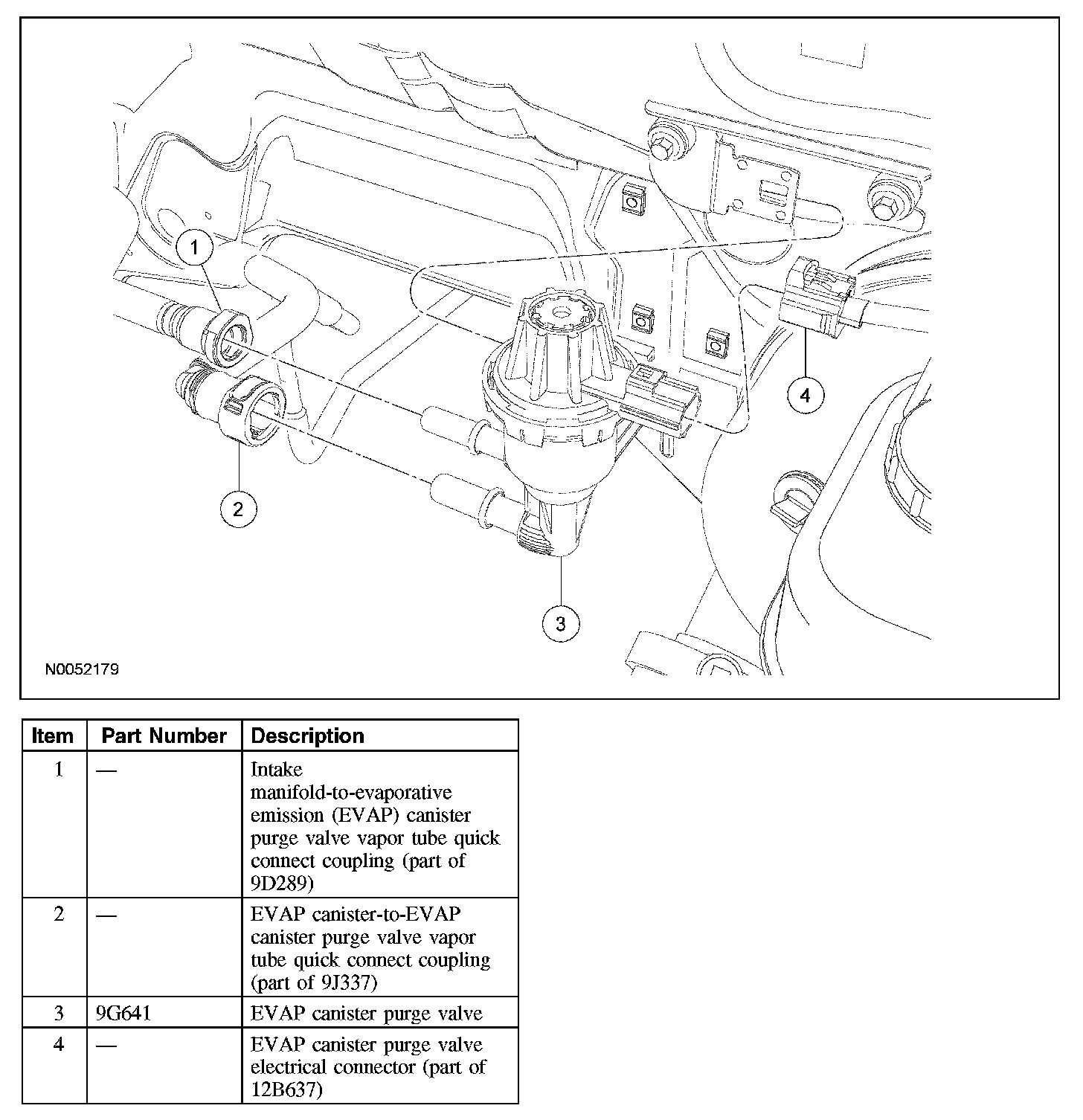

2. Disconnect the evaporative emissions (EVAP) canister purge valve electrical connector.
3. Disconnect the intake manifold-to-EVAP canister purge valve vapor tube quick connect coupling.
4. Disconnect the EVAP canister-to-EVAP canister purge valve vapor tube quick connect coupling.
5. Pull the EVAP canister purge valve release tab and slide the EVAP canister purge valve off the bracket.







6. To install, reverse the removal procedure.
- Leak test the system. Testing and Inspection
- Carry out the evaporative emissions repair verification drive cycle.
