Test G: The Driver Door Module (DDM) Does Not Respond To The Scan Tool

PINPOINT TEST G: THE DRIVER DOOR MODULE (DDM) DOES NOT RESPOND TO THE SCAN TOOL

Normal Operation
The driver door module (DDM) communicates with the scan tool through the standard corporate protocol (SCP) communication network. Circuits 914 (TN/OG) (SCP +) and 915 (PK/LB) (SCP-) provide the network connection to the DDM. The DDM shares the SCP network with the lighting control module (LCM), the rear audio and temperature control (RATC) module (if equipped), the driver seat module (DSM) (if equipped), the HVAC module and the instrument cluster (IC). Voltage for the DDM is provided by circuit 1524 (DB). Circuit 676 (PK/OG) provides ground.

This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- DDM

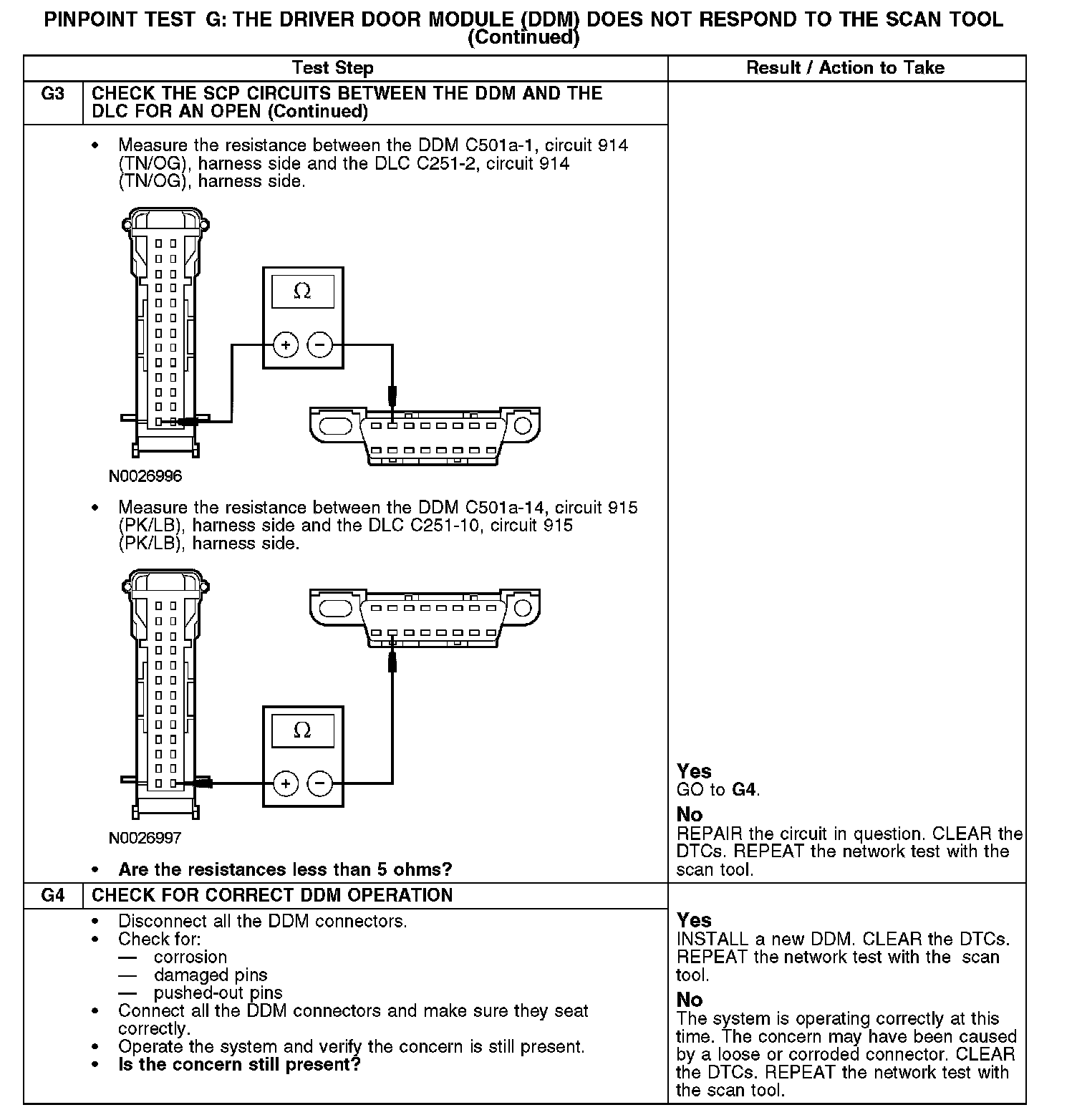

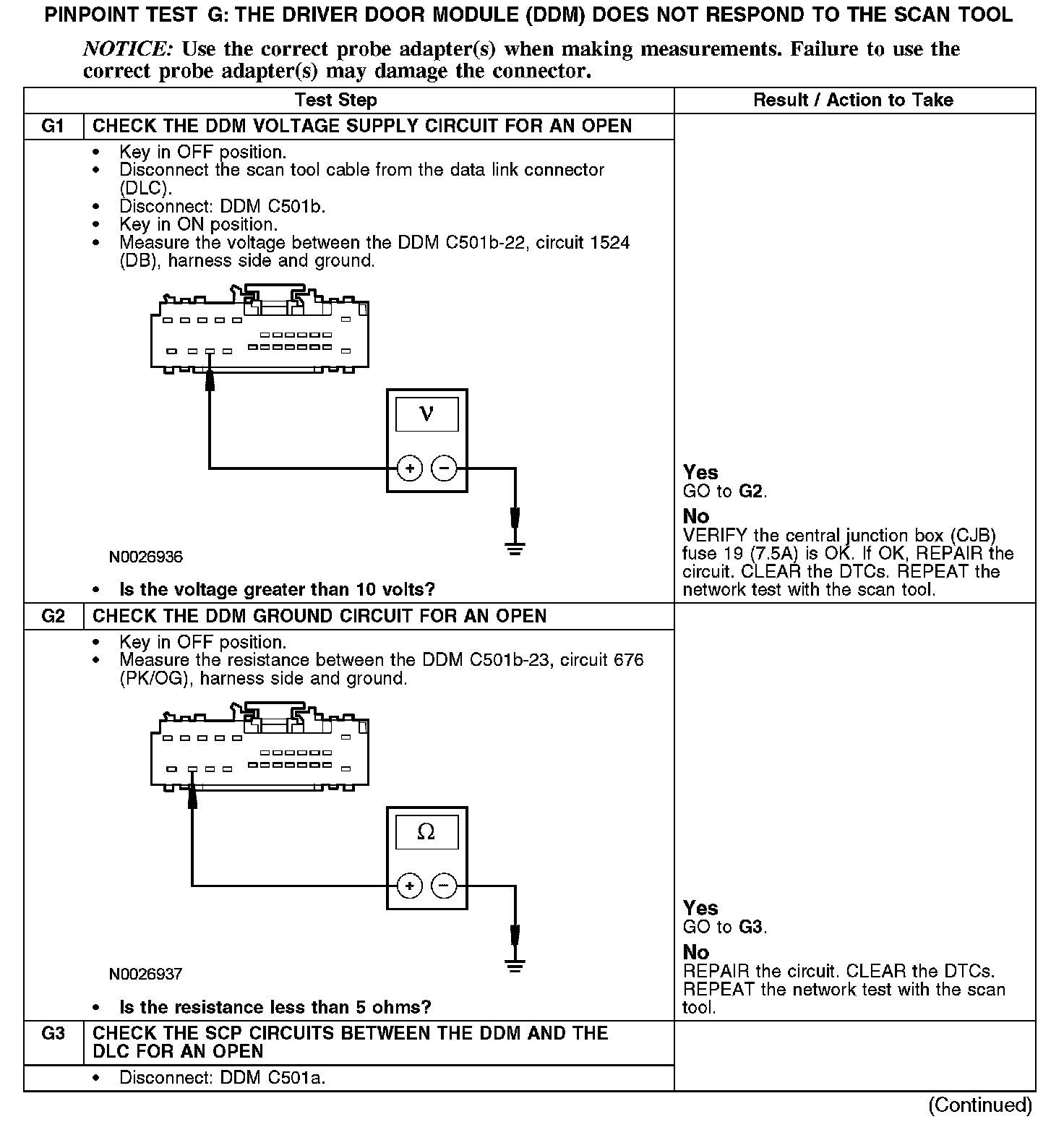

G1-G3:

G3-G4:
