Transmission Position Sensor/Switch: Adjustments

Transmission Range (TR) Sensor Adjustment

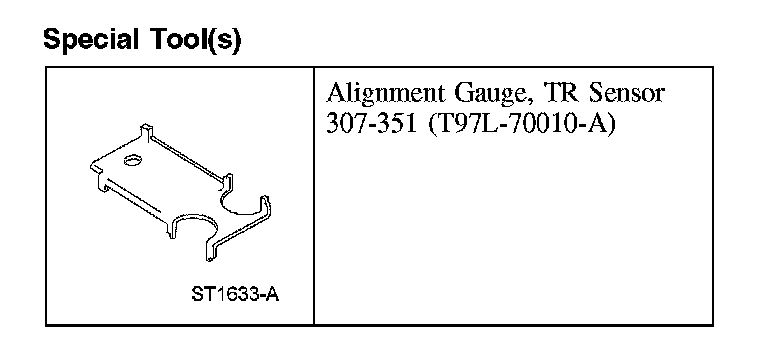

Special Tool(s)





1. With the vehicle in NEUTRAL, position it on a hoist.

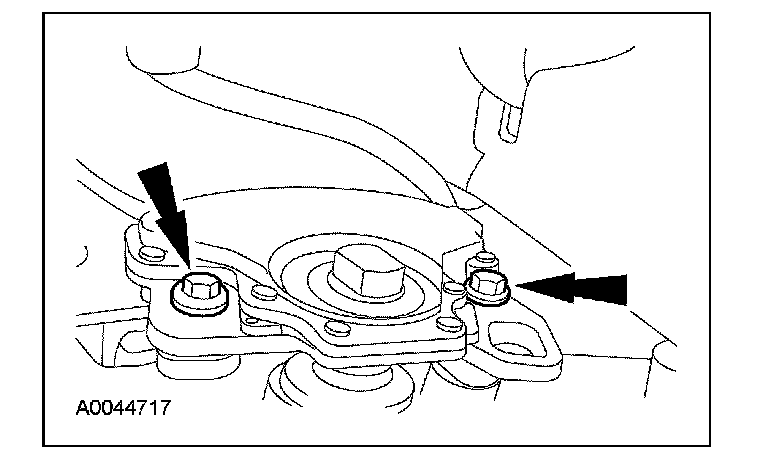

2. Loosen the digital transmission range (TR) sensor bolts.

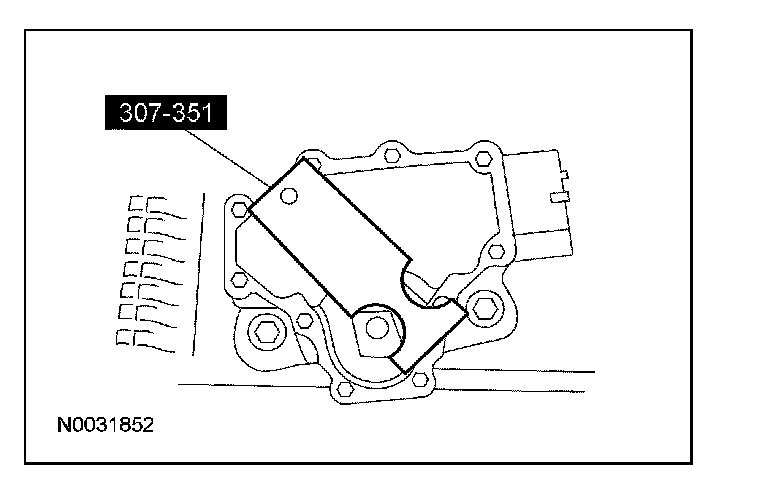

3. NOTE: Make sure that the manual control lever is in the NEUTRAL position.

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.

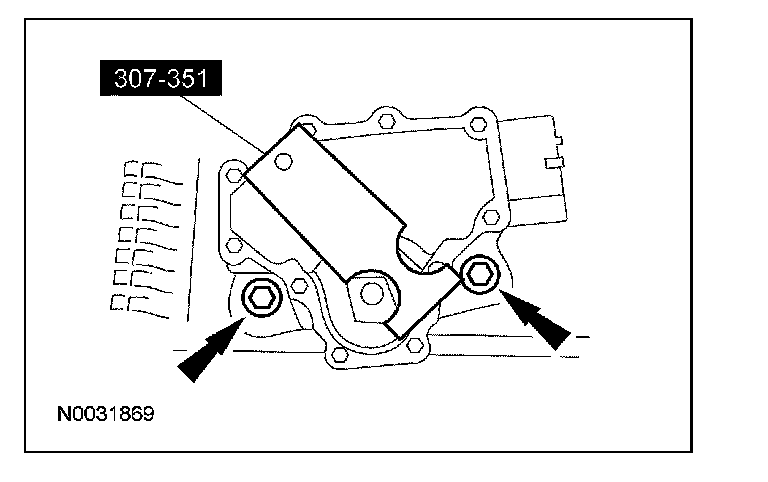

4. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

Tighten the digital TR sensor bolts and remove the special tool.
^ Tighten to 9 Nm (80 lb-in).





5. Verify that the vehicle starts in the PARK and NEUTRAL positions and the reverse lamps illuminate in REVERSE.
