Tests AB: DTC C1414 - Incorrect Module Design Level

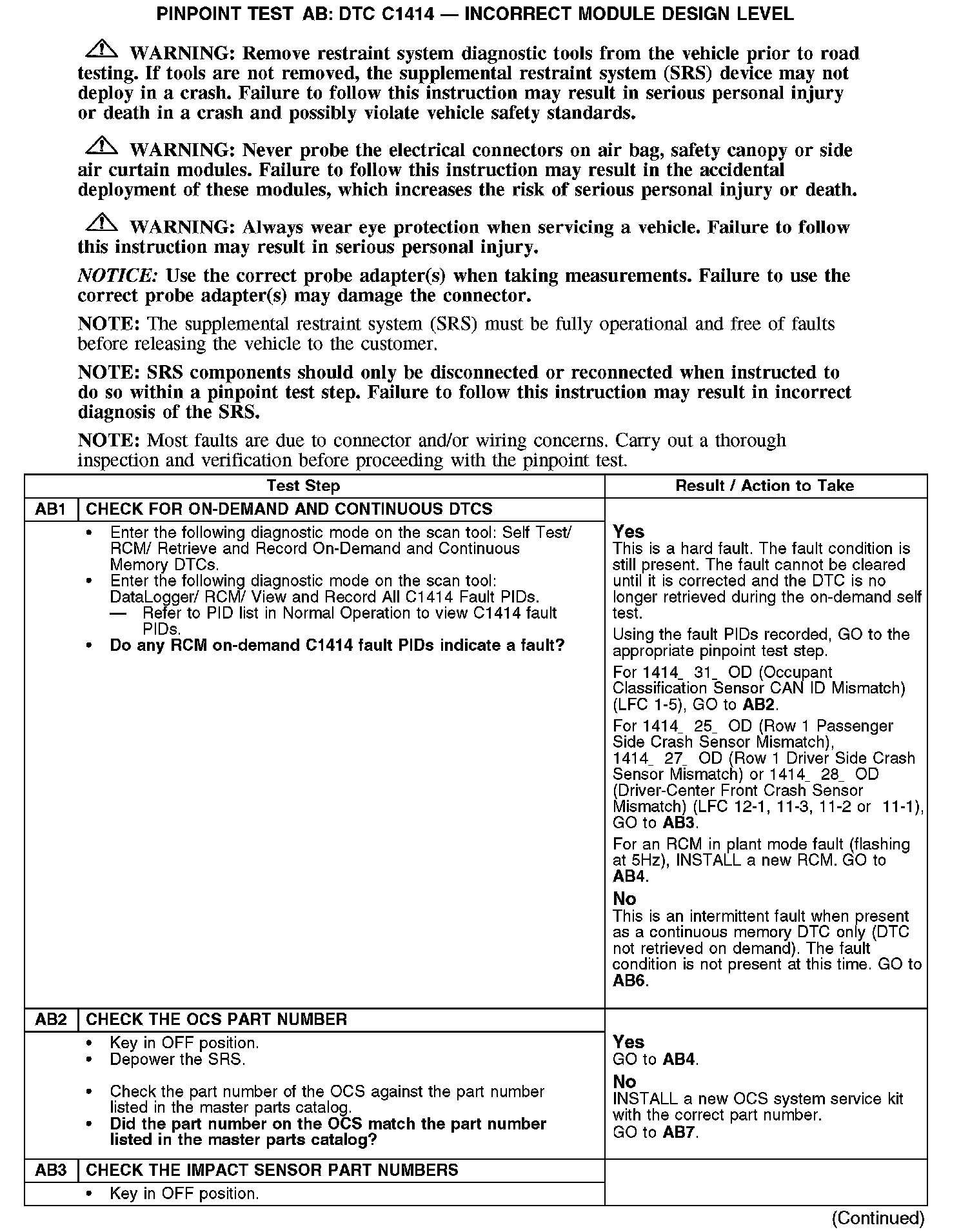

PINPOINT TEST AB: DTC C1414 - INCORRECT MODULE DESIGN LEVEL

Lamp Fault Codes (LFCs)
The following lamp fault codes (LFCs) indicate the specific fault PIDs associated with DTC C1414:







Normal Operation
The restraints control module (RCM) monitors the communication condition and circuits of the impact sensors and the occupant classification sensor (OCS) system for an embedded vehicle ID.

If the RCM receives conflicting information from the impact sensors or OCS system it will store DTC C1414 in memory and, depending on the fault, flash a LFC on the air bag warning indicator. The secondary air bag warning chime will also be activated.







Part 2:






This pinpoint test is intended to diagnose the following:
- Incorrect RCM for vehicle
- Incorrect impact sensor information
- Incorrect OCS system for vehicle
- Wiring, terminals or connectors


AB1-AB3:

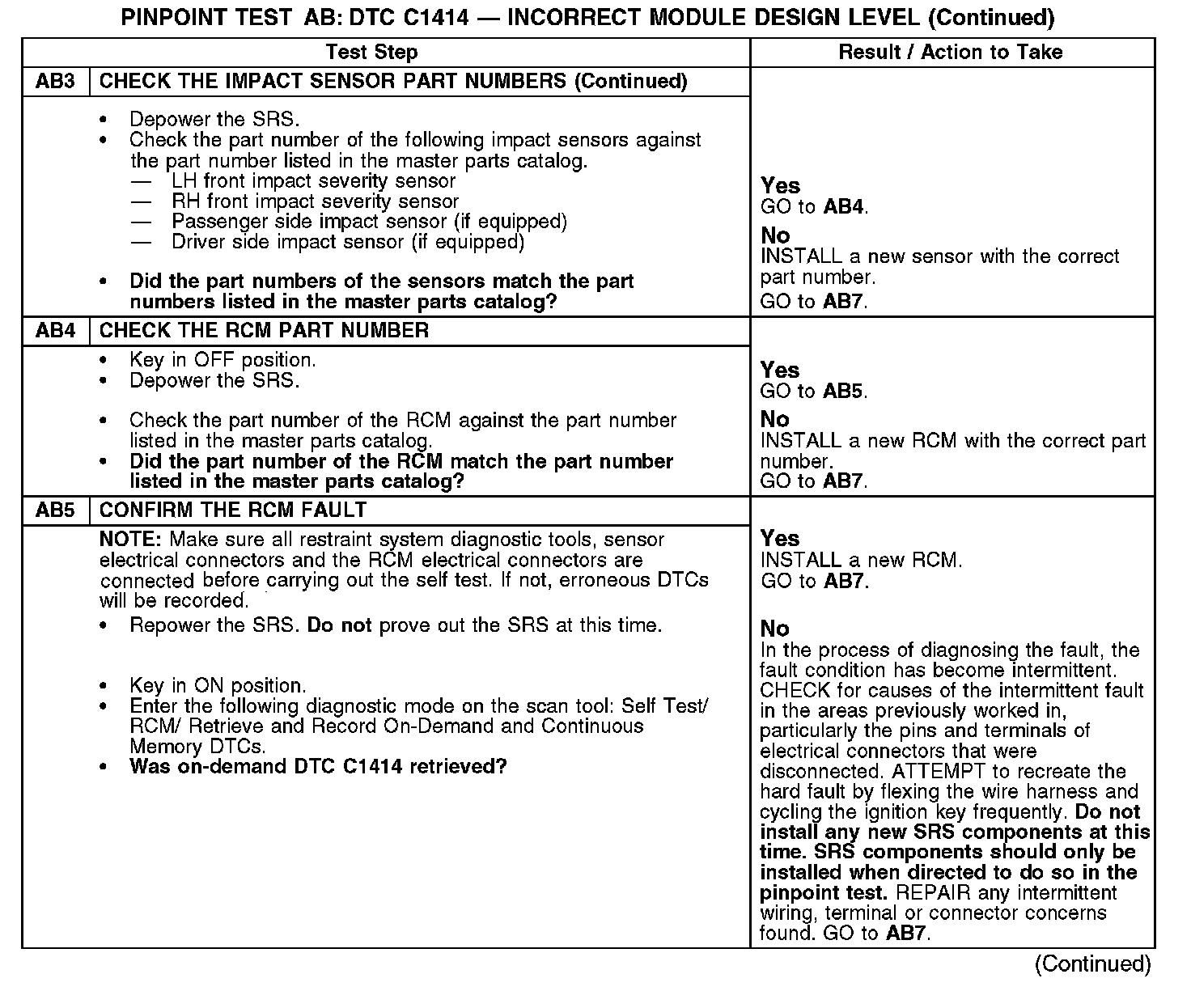

AB3-AB5:

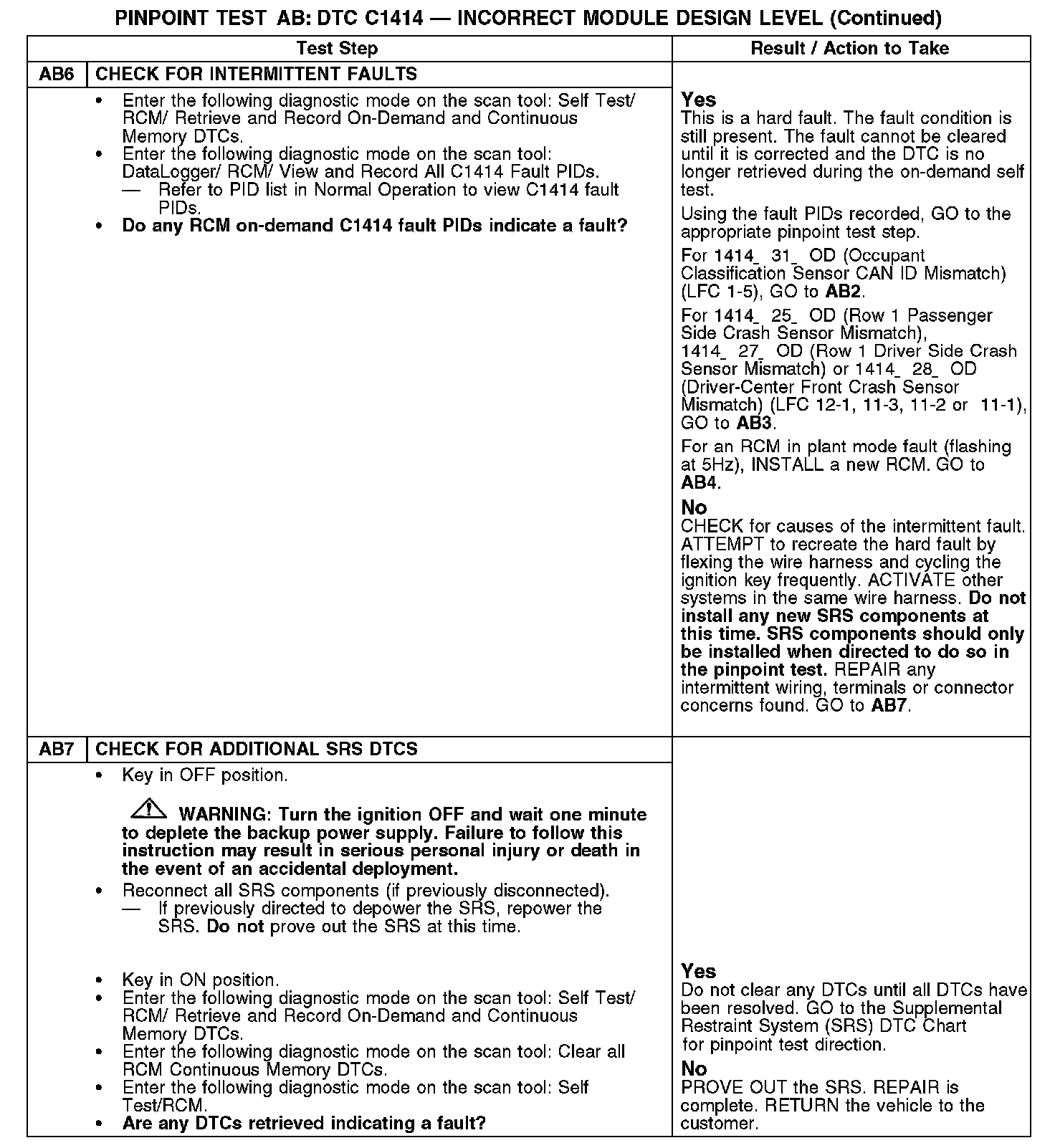

AB6-AB7:
