Ambient Air Temperature Sensor

Ambient Air Temperature Sensor









Removal and Installation

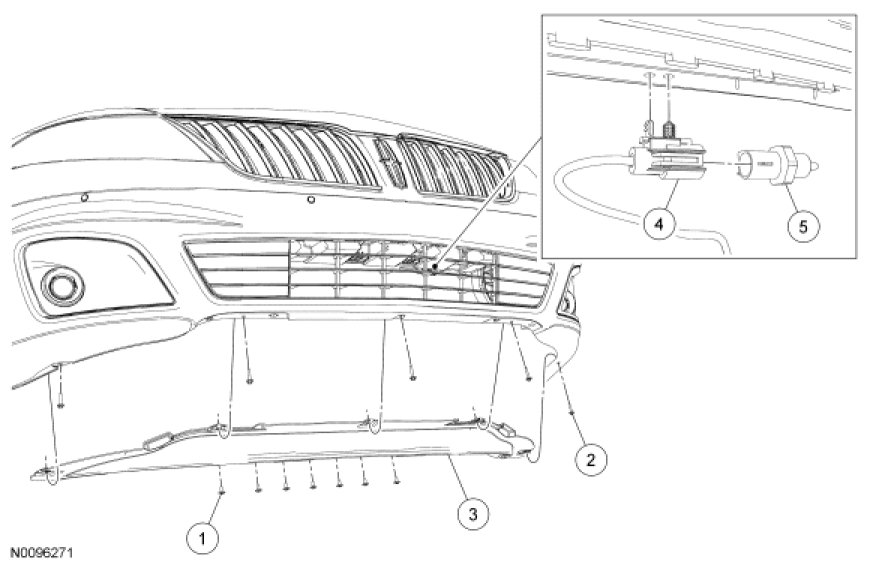

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the 7 lower radiator air deflector pin-type retainers.

3. Remove the 5 lower radiator air deflector screws.

4. Remove the lower radiator air deflector.

5. Detach the ambient air temperature sensor electrical connector from the bumper.

6. Disconnect the ambient air temperature sensor electrical connector and remove the ambient air temperature sensor.

7. To install, reverse the removal procedure.
