Speed Control Switch

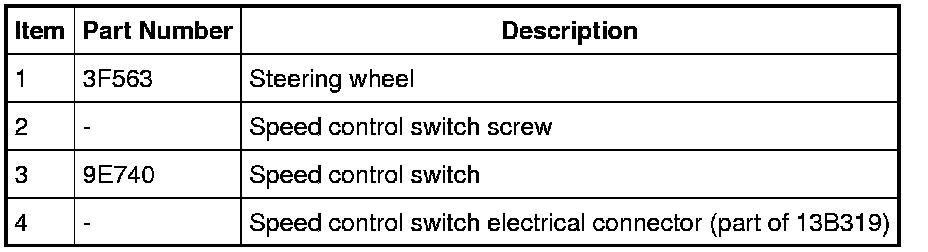

Speed Control SwitchRemoval and Installation 1.
Remove the driver air bag module. For additional information, refer to Air Bag Systems.
2.
Remove the screw and the speed control switch.
-
Disconnect the electrical connector.
-
To install, tighten to 7 Nm (62 lb-in).
3.
To install, reverse the removal procedure.
