Sunroof / Moonroof Frame




Roof Opening Panel - Exploded View

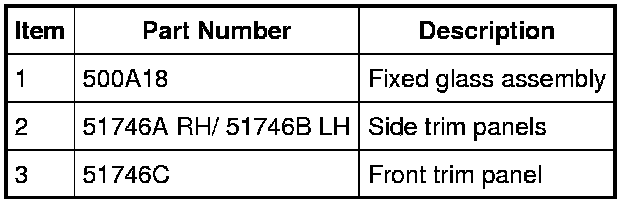

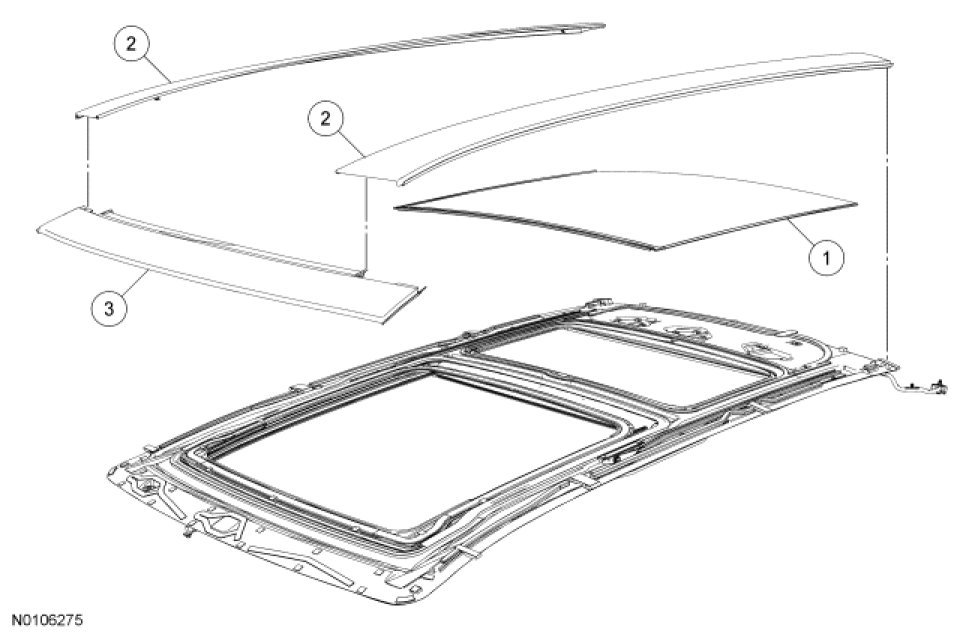

Exterior Trim and Fixed Glass

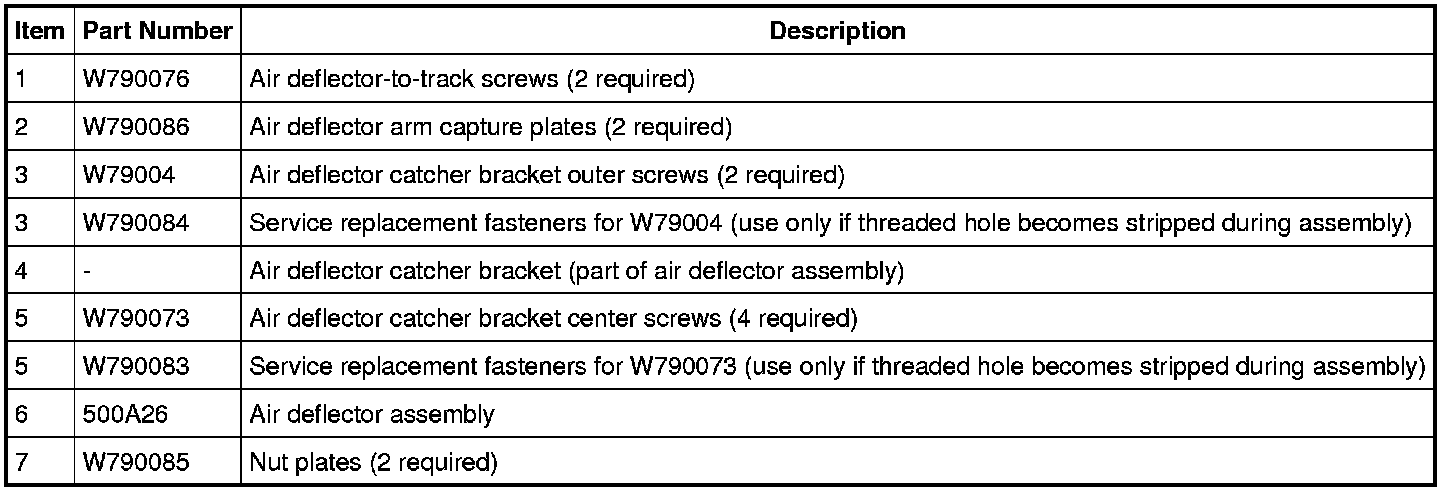

Air Deflector Assembly

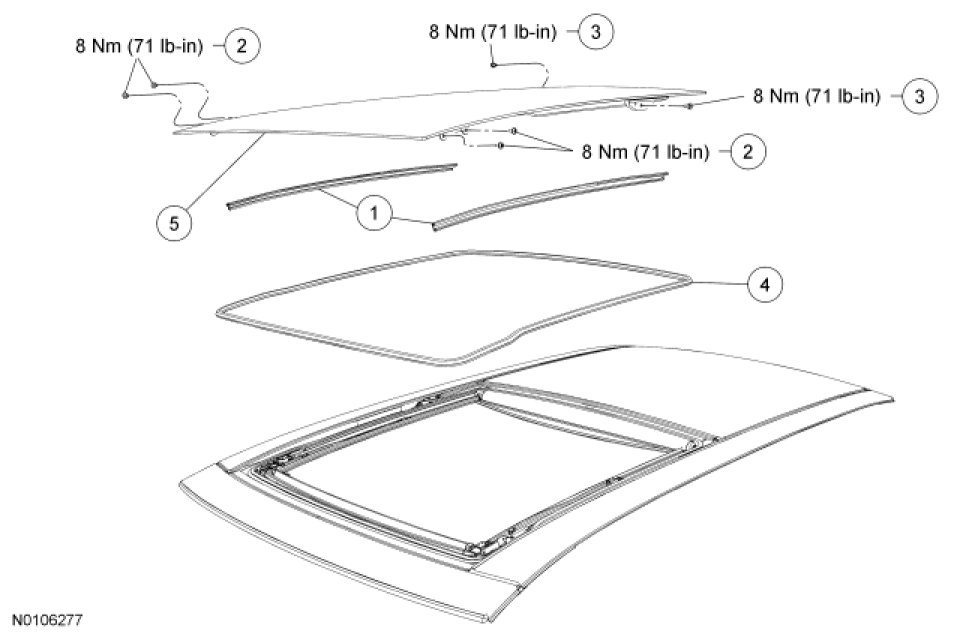

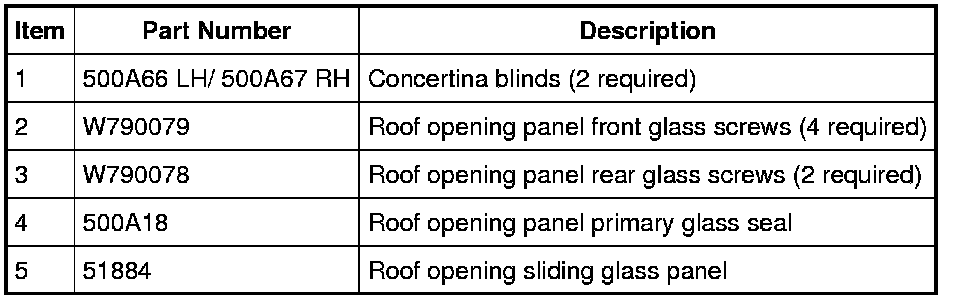

Sliding Glass, Blinds and Primary Seal

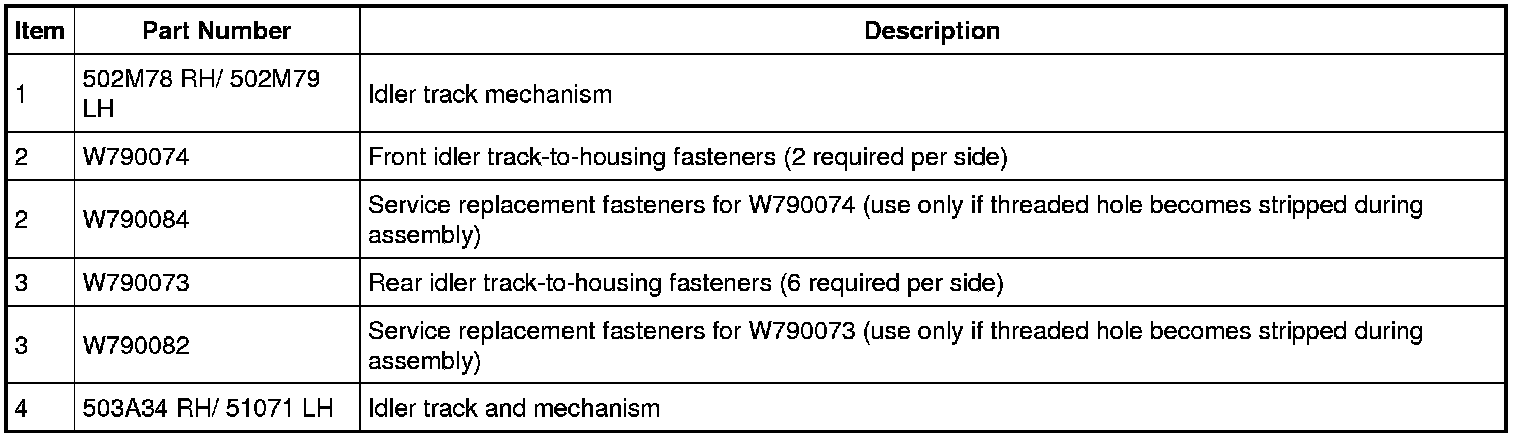

Idler Track and Mechanism

NOTE: LH shown, RH similar.

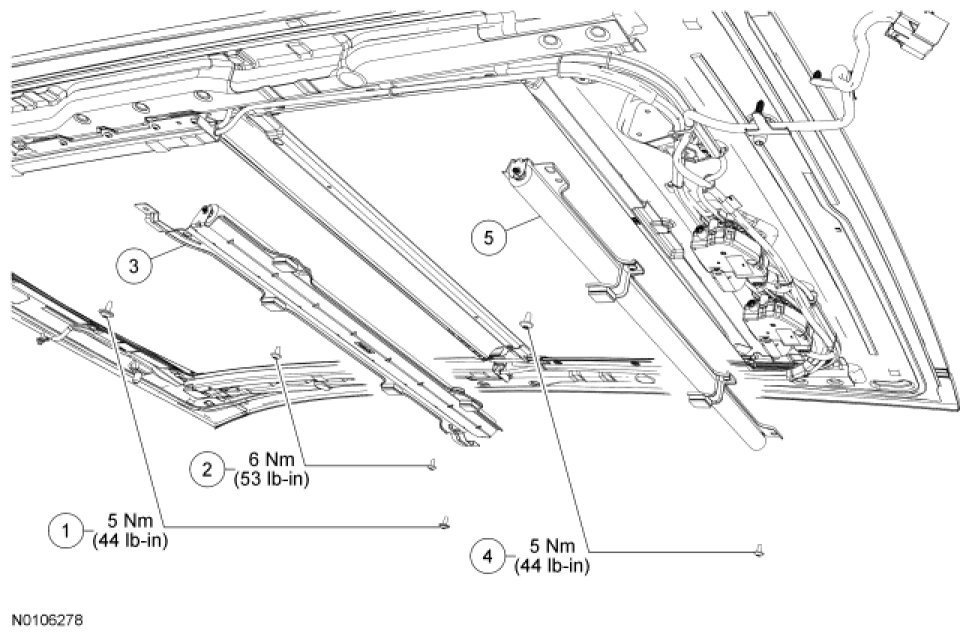

Front and Rear Sunshade Assembly

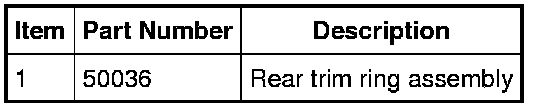

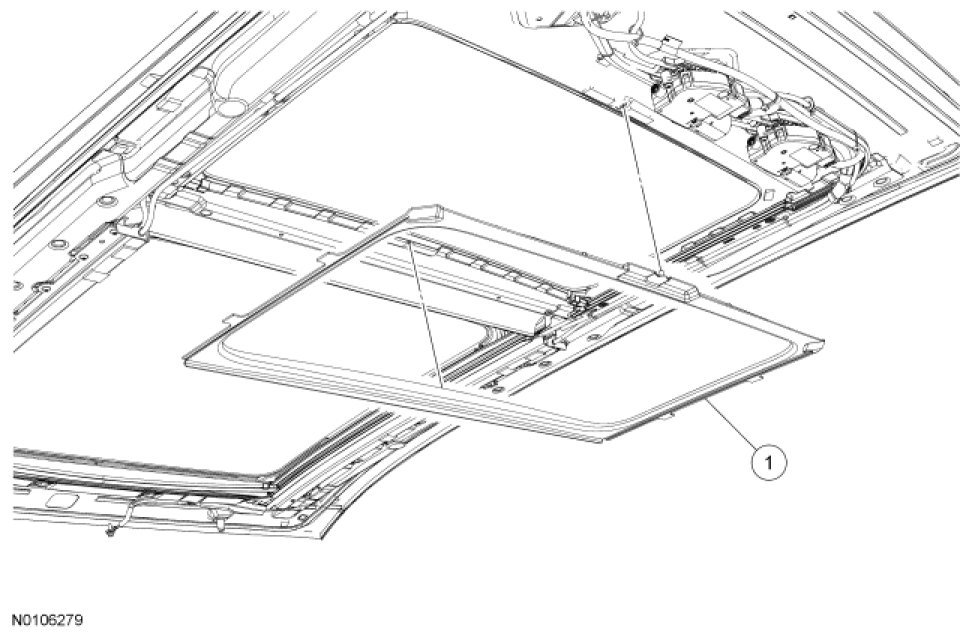

Rear Trim Ring Assembly

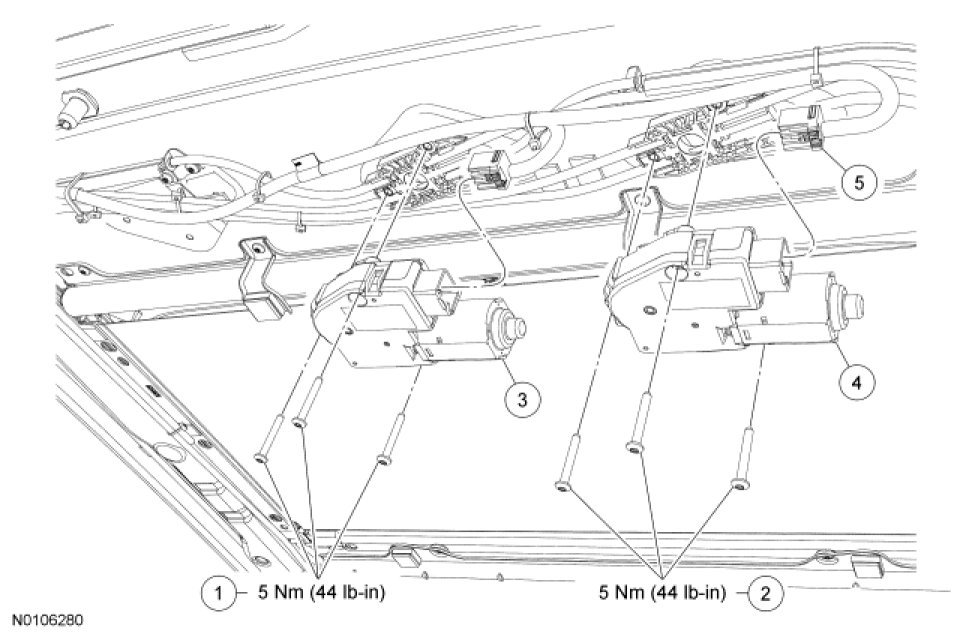

Roof Opening Panel Motor(s) and Electrical

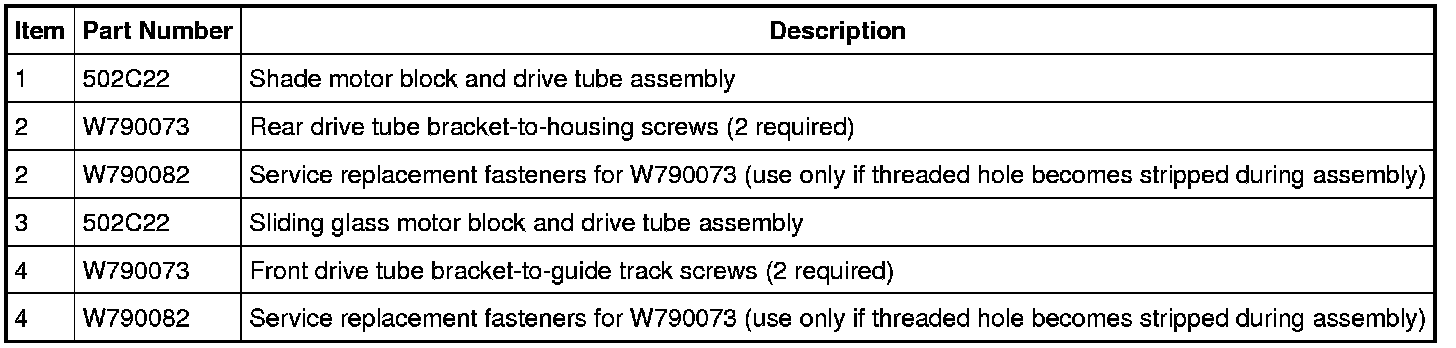

Motor Block and Drive Tube Assembly

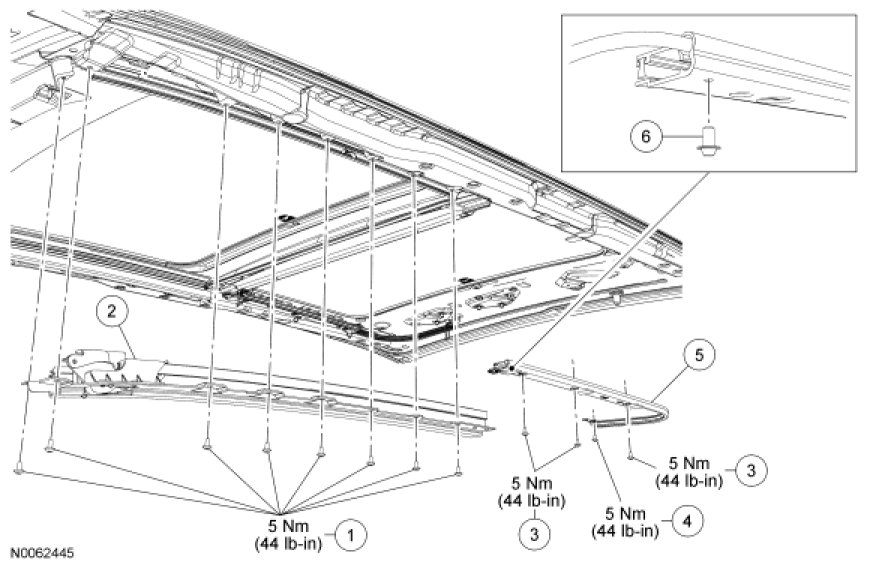

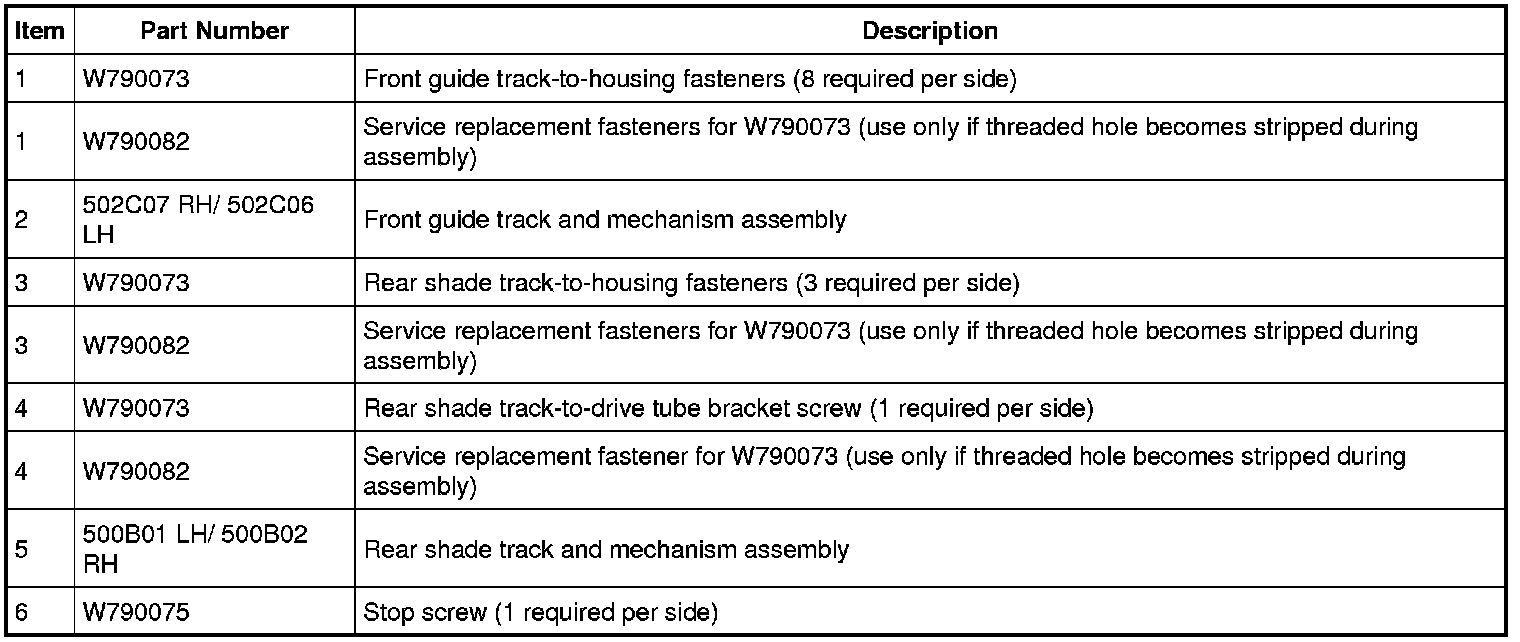

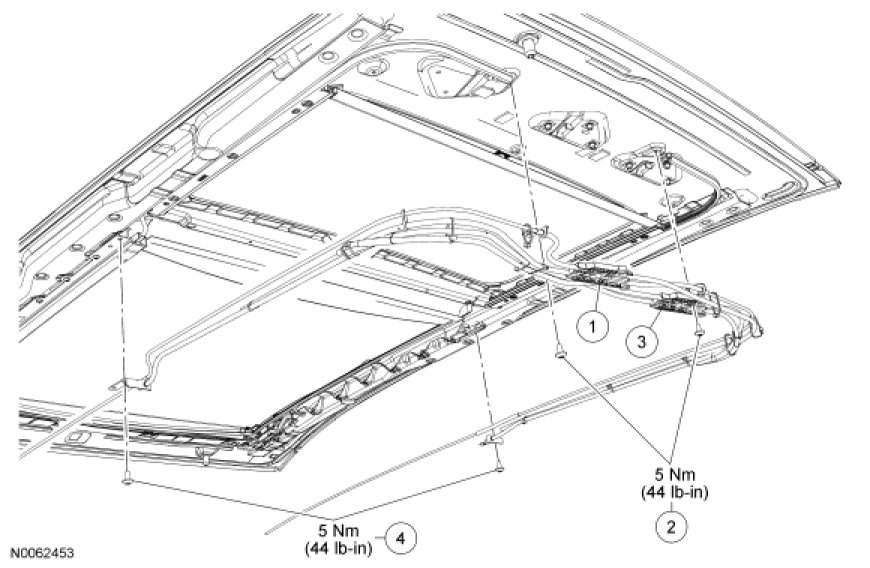

Guide Tracks and Mechanisms

NOTE: LH shown, RH similar.

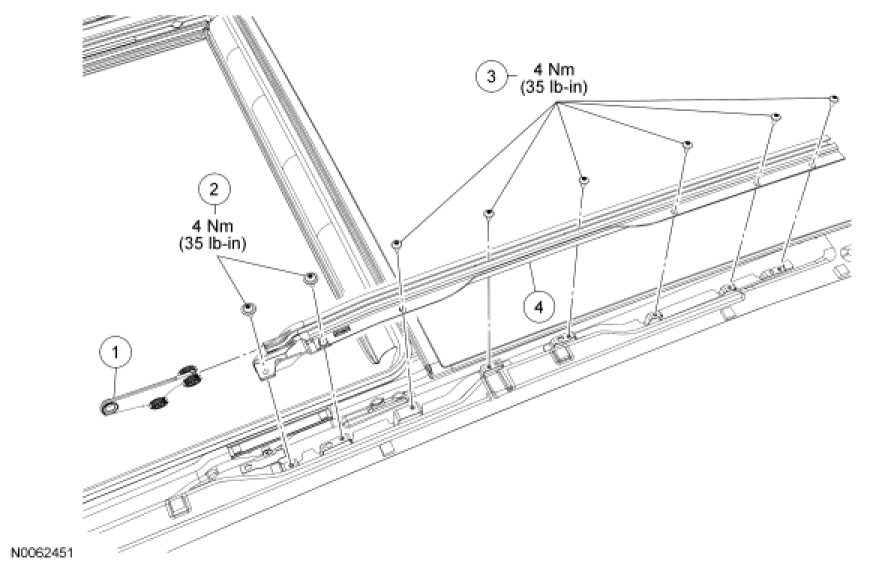

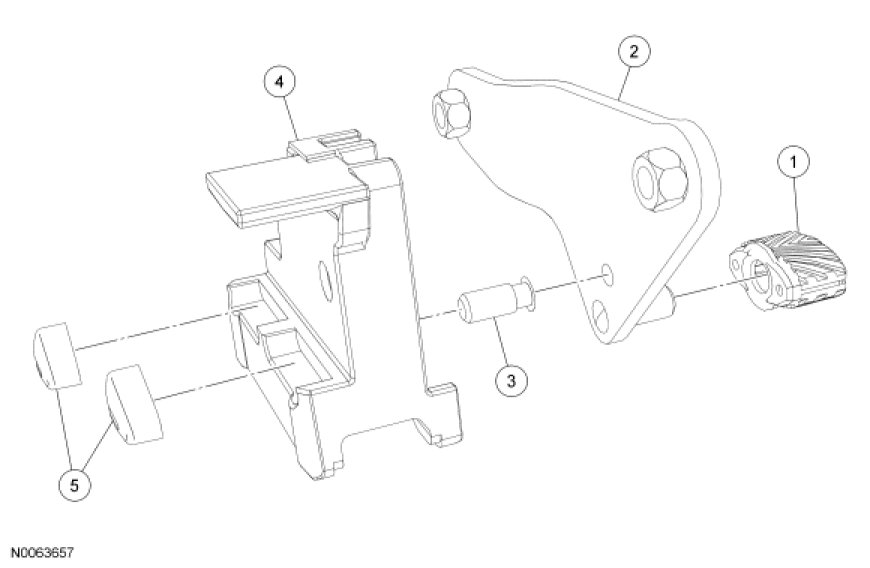

Front Guide Track Mechanism

NOTE: LH shown, RH similar.
