Lumbar Assembly - Second Row

Lumbar Assembly - Second Row

Removal

NOTE: For parts identification and location, refer to Seat - Exploded View, Second Row Seat - Exploded View, Second Row.

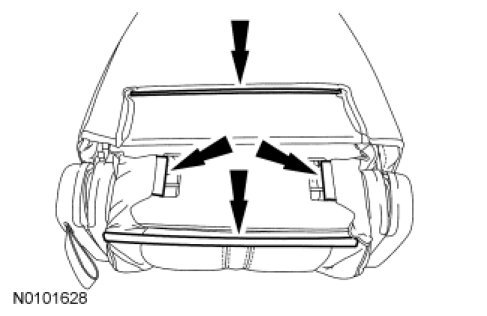

1. Release the backrest cover J-clips.





2. NOTICE: Use care when separating the backrest cover from the hook-and-loop strip, or the hook-and-loop strip may be torn from the backrest foam pad.

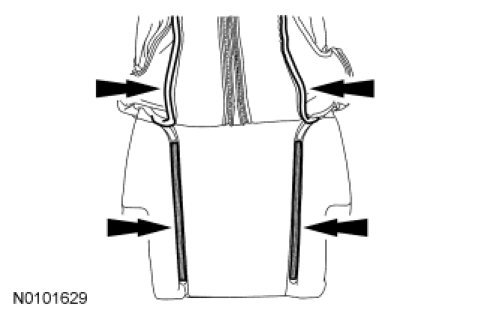

Separate the hook-and-loop strips and invert the backrest cover up as far as it will go.





3. Pull the backrest foam pad away from the backrest frame.

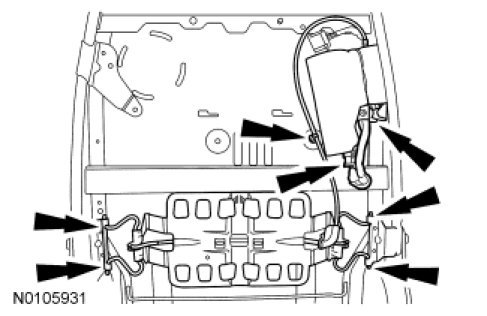

4. Drill the rivet out, disconnect the electrical connector, disengage the cable retainer, disengage the retaining clips and remove the power lumbar.





5. To install, reverse the removal procedure.
