Interior Light Switch: Service and Repair




Ambient Lighting Switch









Removal and Installation

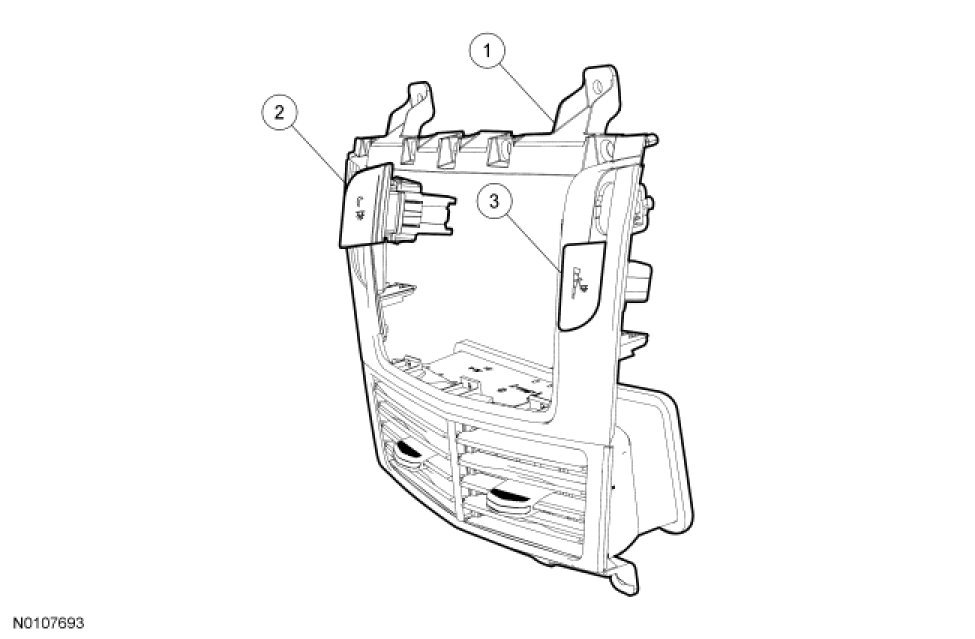

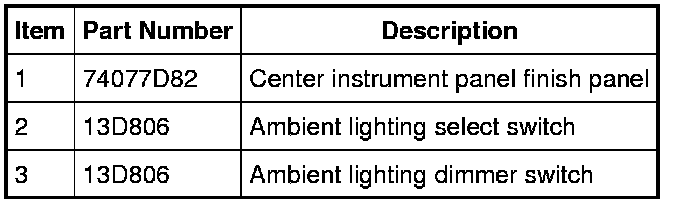

1. Remove the center instrument panel finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

2. NOTE: The ambient lighting switch is removed by releasing the tabs and pushing from behind.

Release the tabs and remove the ambient lighting switch.

3. Squeeze the retaining tabs and remove the ambient lighting switch.

4. To install, reverse the removal procedure.
