Antilock Brakes / Traction Control Systems

Anti-Lock Control - Non-Hybrid

DTC Charts

NOTE: This DTC chart applies to non-hybrid vehicles only. For hybrid vehicle DTCs, refer to the ABS Module DTC Chart in Anti-Lock Control - Hybrid. ABS Module DTC Chart

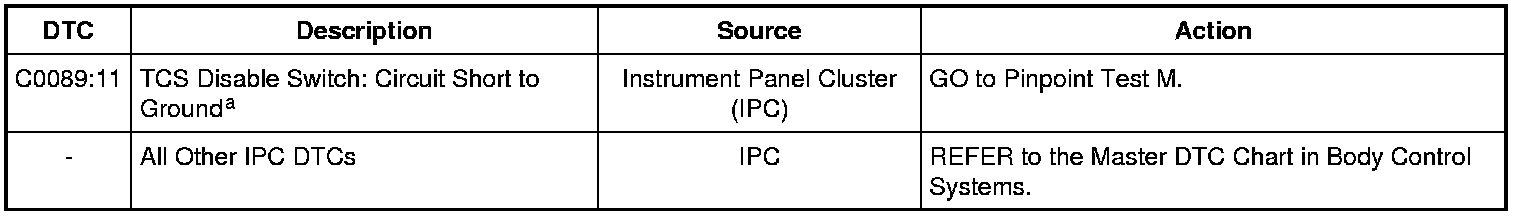

Instrument Panel Cluster (IPC) DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens or shorts to ground. Continuous Memory Diagnostic Trouble Codes (CMDTCs) have an additional 2-character DTC status code suffix to assist in determining DTC history.

C0089:11:

a Traction Control System
