Collision Avoidance and Parking Assist Systems




Blind Spot Monitoring

DTC Charts

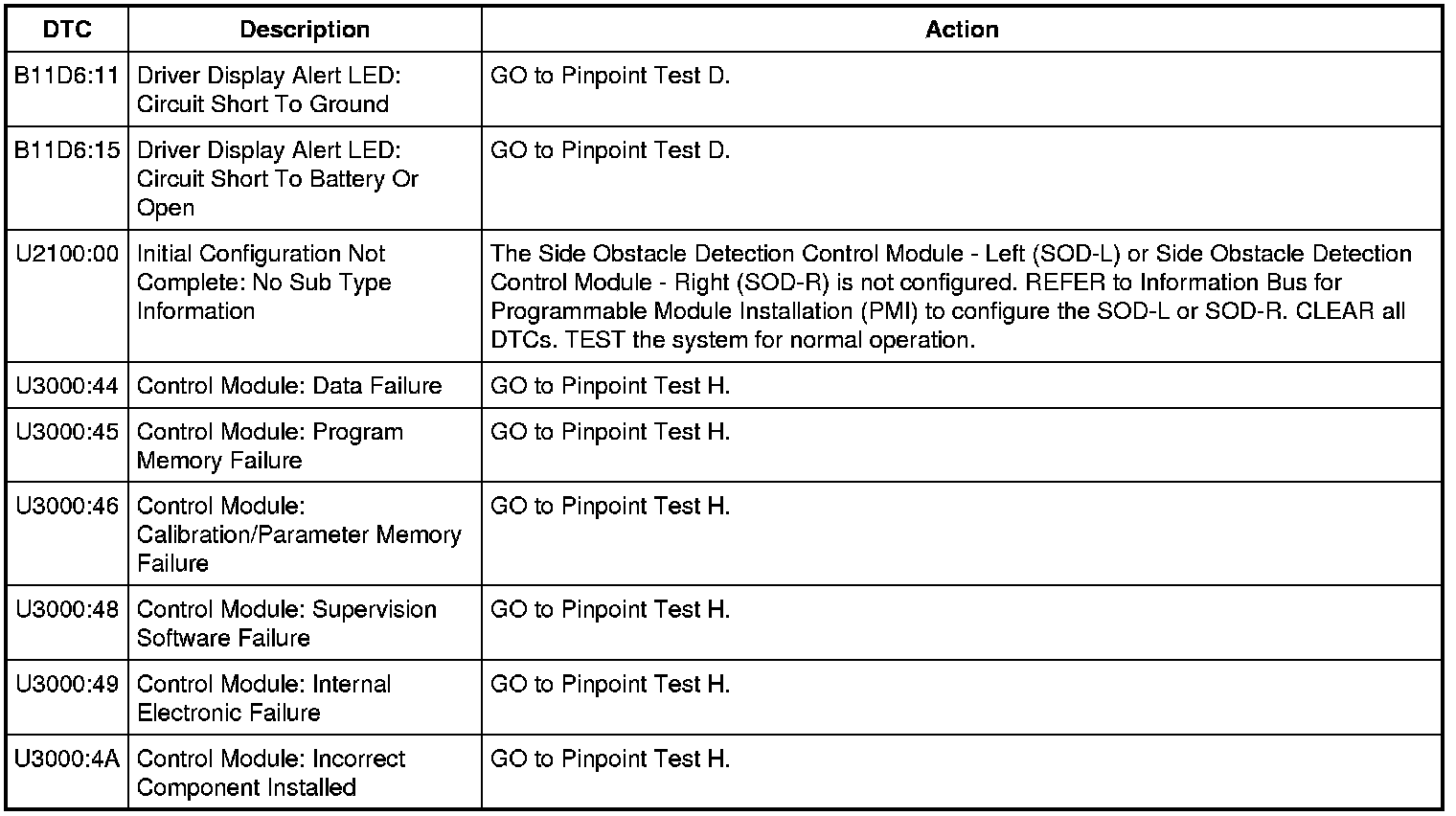

Side Obstacle Detection Control Module - Left (SOD-L) and Side Obstacle Detection Control Module - Right (SOD-R) DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens, or shorts to ground. Continuous memory DTCs have an additional 2-character DTC status code suffix to assist in determining DTC history.

B11D6:11-B11D6:15 / U2100:00-U3000:49:
