Power Mirror Switch: Service and Repair

Exterior Mirror Control Switch

Fusion/Milan









MKZ









Removal and Installation

Fusion/Milan

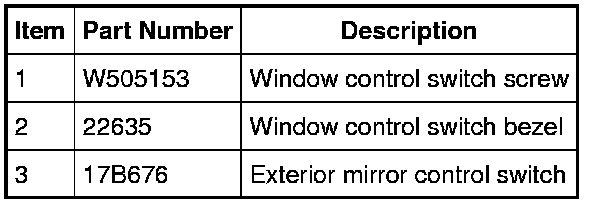

1. Remove the window control switch bezel in the following sequence.

1. Remove the window control switch screw.

2. Pull upward and remove the control switch bezel.

3. Disconnect the electrical connectors.

MKZ

2. Remove the front door trim panel.

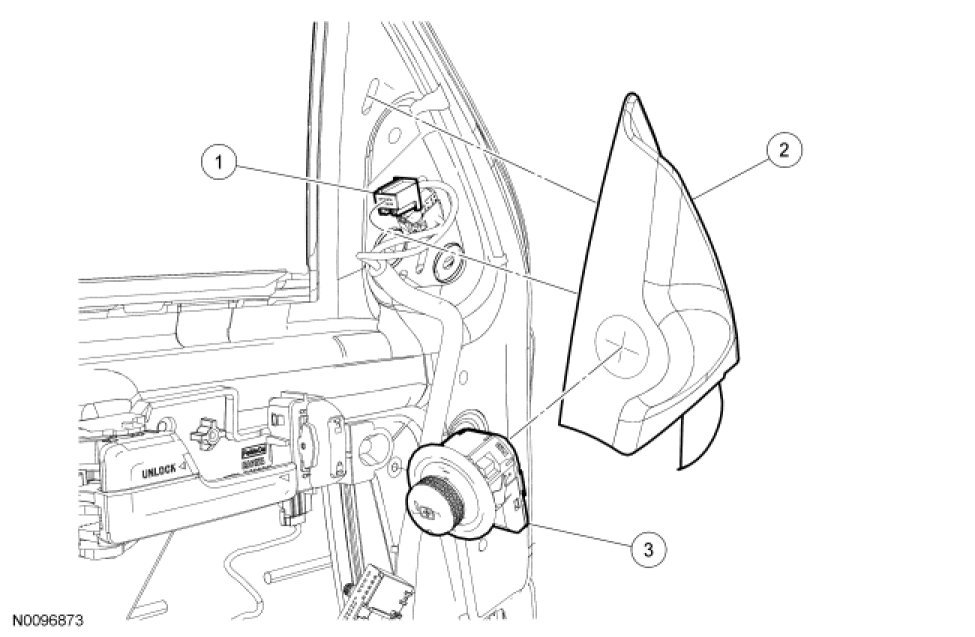

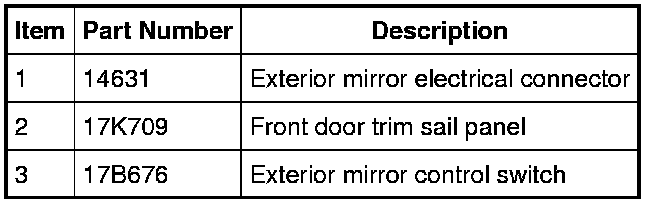

3. Pull outward to remove the front door trim sail panel and disconnect the electrical connector.

All vehicles

4. NOTE: Fusion/Milan shown, MKZ similar.

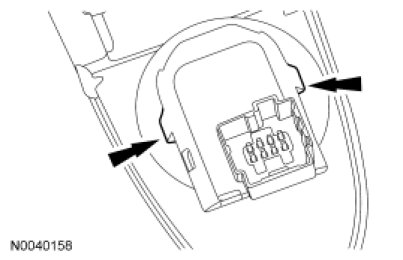

Remove the exterior mirror control switch.

- Depress the 2 locking tabs.





5. To install, reverse the removal procedure.
