Instrument Panel Cluster (IPC)

Instrument Panel Cluster (IPC)

NOTE: Fusion shown, other vehicles similar.











Removal

NOTE: If installing a new Instrument Panel Cluster (IPC), all vehicle keys are erased during the parameter reset procedure. Verify at least 2 of the vehicle keys are available prior to carrying out this procedure.

1. If installing a new IPC, upload the module configuration to the scan tool. For additional information, refer to Information Bus, Programmable Module Installation (PMI). Programming and Relearning

2. Remove the IPC finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

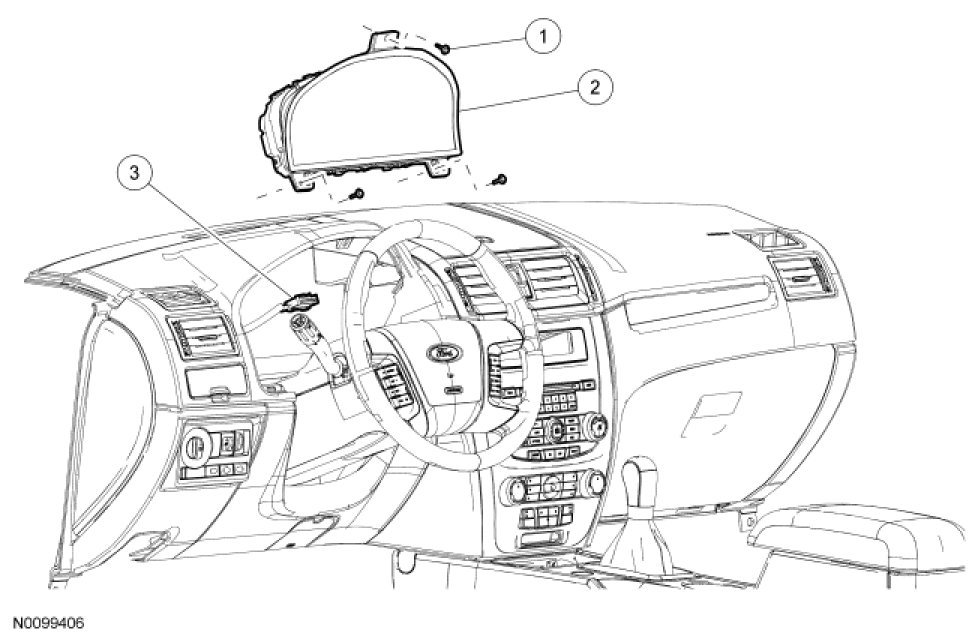

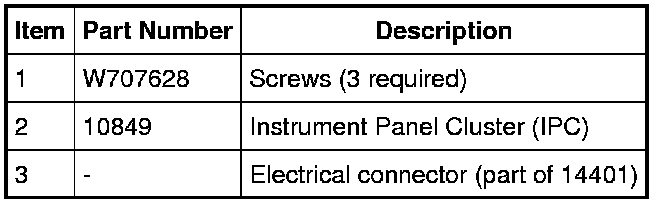

3. Remove the 3 screws and the IPC.
- Disconnect the electrical connector.

Installation

1. Position the IPC in the instrument panel and connect the electrical connector.

2. Install the 3 screws.

3. Install the IPC finish panel. Refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

4. NOTE: If a new IPC is installed, updated, or re-configured, the IPC and the PCM (non-hybrid) or Transmission Control Module (TCM) (hybrid) require a parameter reset to allow the IPC and the PCM or TCM to recognize each other. Failure to carry out the parameter reset to the IPC and the PCM or TCM can result in a no start condition.
If a new IPC was installed, updated or reconfigured, carry out the parameter reset procedure. For additional information, refer to Antitheft and Alarm Systems. Passive Anti-Theft System (PATS)

5. NOTE: The vehicles integrated keys (or standard Passive Anti-Theft System (PATS) keys) must be programmed to the new IPC.
If a new IPC was installed, program the integrated keys. For additional information, refer to Antitheft and Alarm Systems.

6. If a new IPC was installed, download the IPC configuration information from the scan tool into the new IPC. For additional information, refer to Information Bus, PMI.
