Hazard Warning Switch: Service and Repair

Hazard Flasher Lamp Switch









Removal and Installation

1. Remove the instrument panel upper storage compartment. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

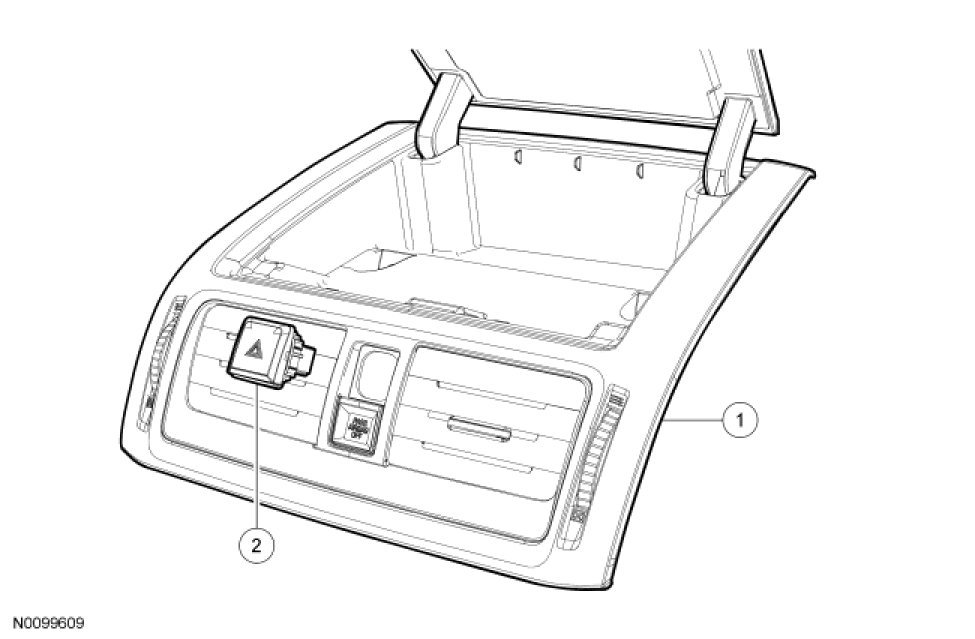

2. Release the tabs and remove the hazard flasher lamp switch.

3. To install, reverse the removal procedure.
