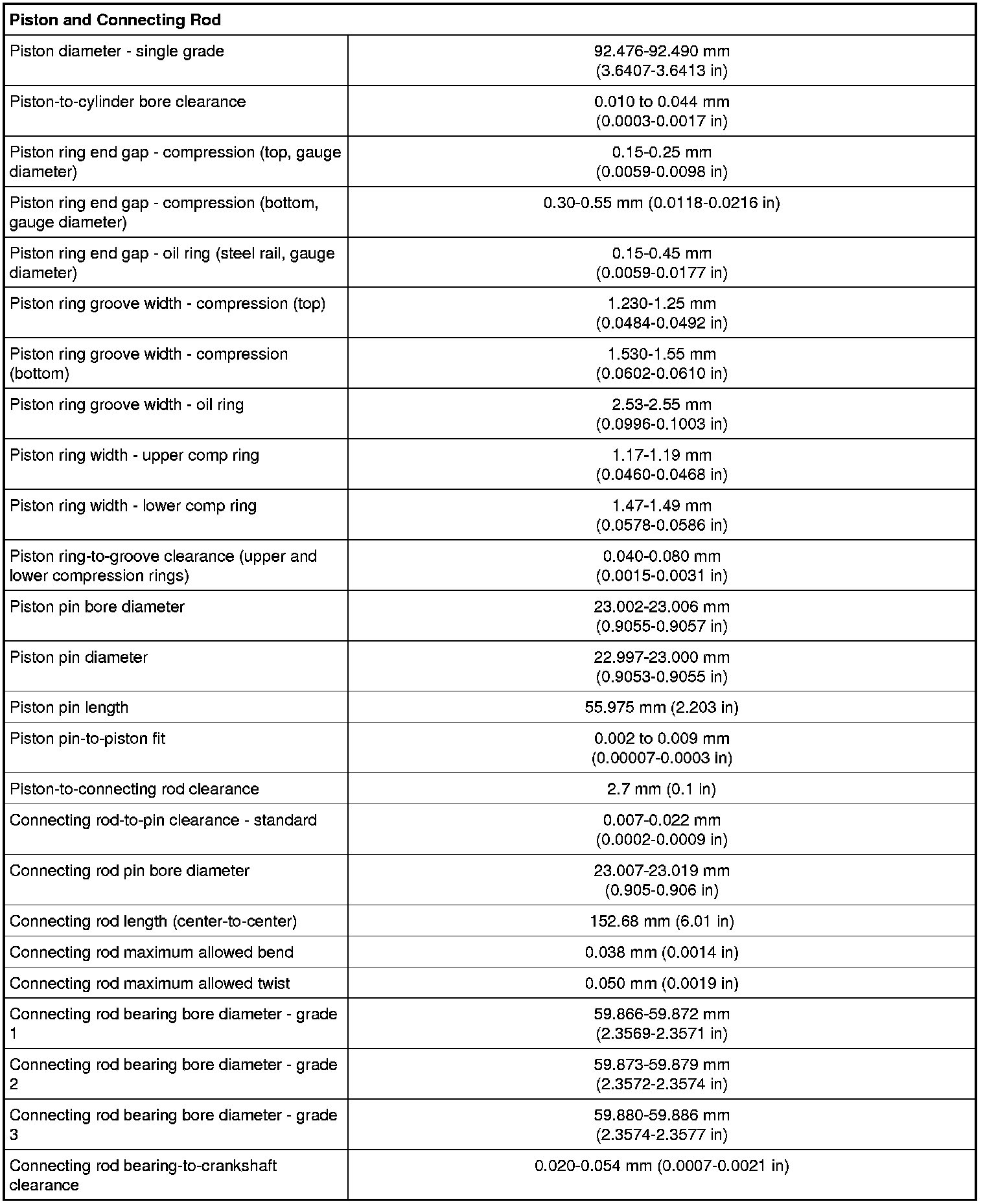

Connecting Rod, Engine

a Refer to the procedure.


Rod Bearing Cap

Install the connecting rod cap and bolts.

Tighten the bolts in 3 stages.
Stage 1: Tighten to 23 Nm (17 lb-ft).
Stage 2: Tighten to 43 Nm (32 lb-ft).
Stage 3: Tighten an additional 90 degrees.
