Rear Vision Camera: Service and Repair
Video CameraRemoval and Installation 1.
Remove the luggage compartment lid trim cover.
2.

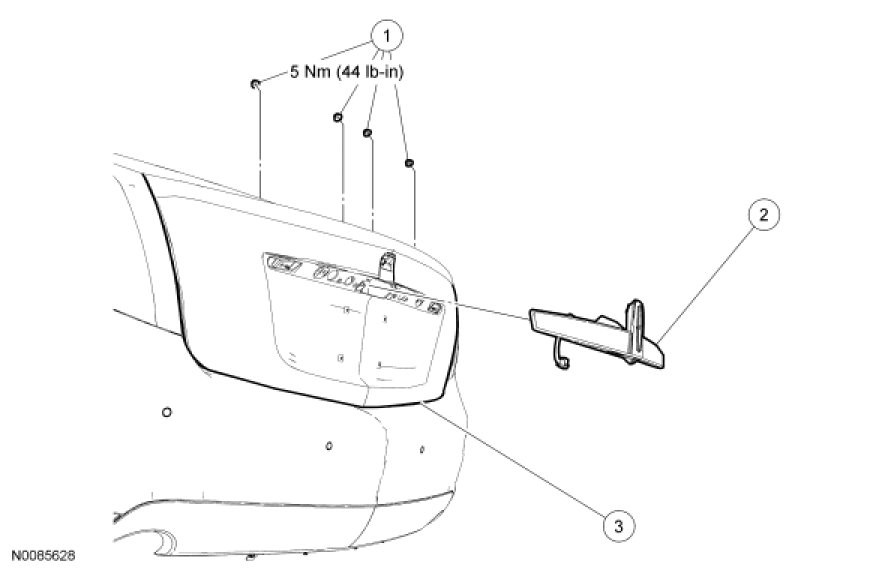

Remove the 4 license plate lamp housing nuts.
3.
Remove the license plate lamp housing from the luggage compartment lid.
4.

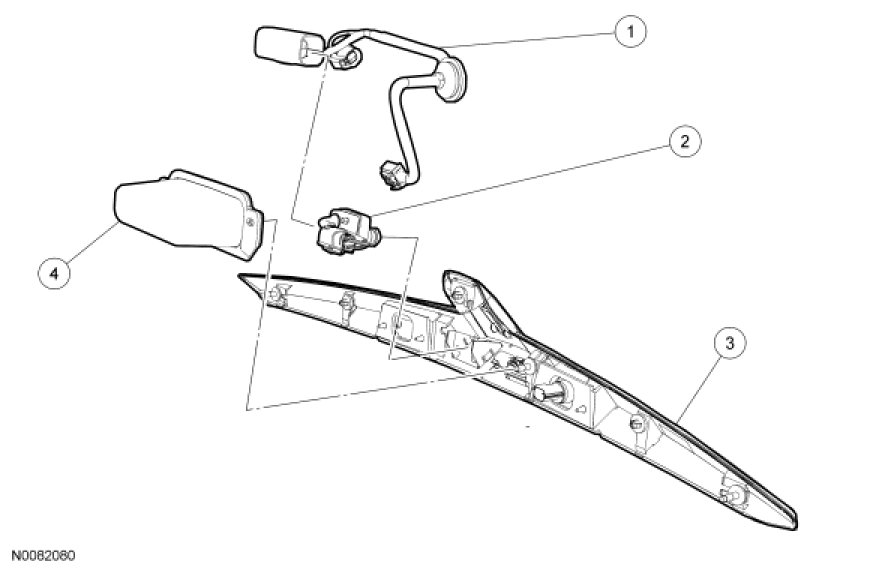

Disconnect the electrical connector.
5.
Remove the video
camera cover and camera from the license plate lamp housing.
6.
To install, reverse the removal procedure.
